GWA30
Shaft support block GWA30
Thêm vào yêu cầu báo giá

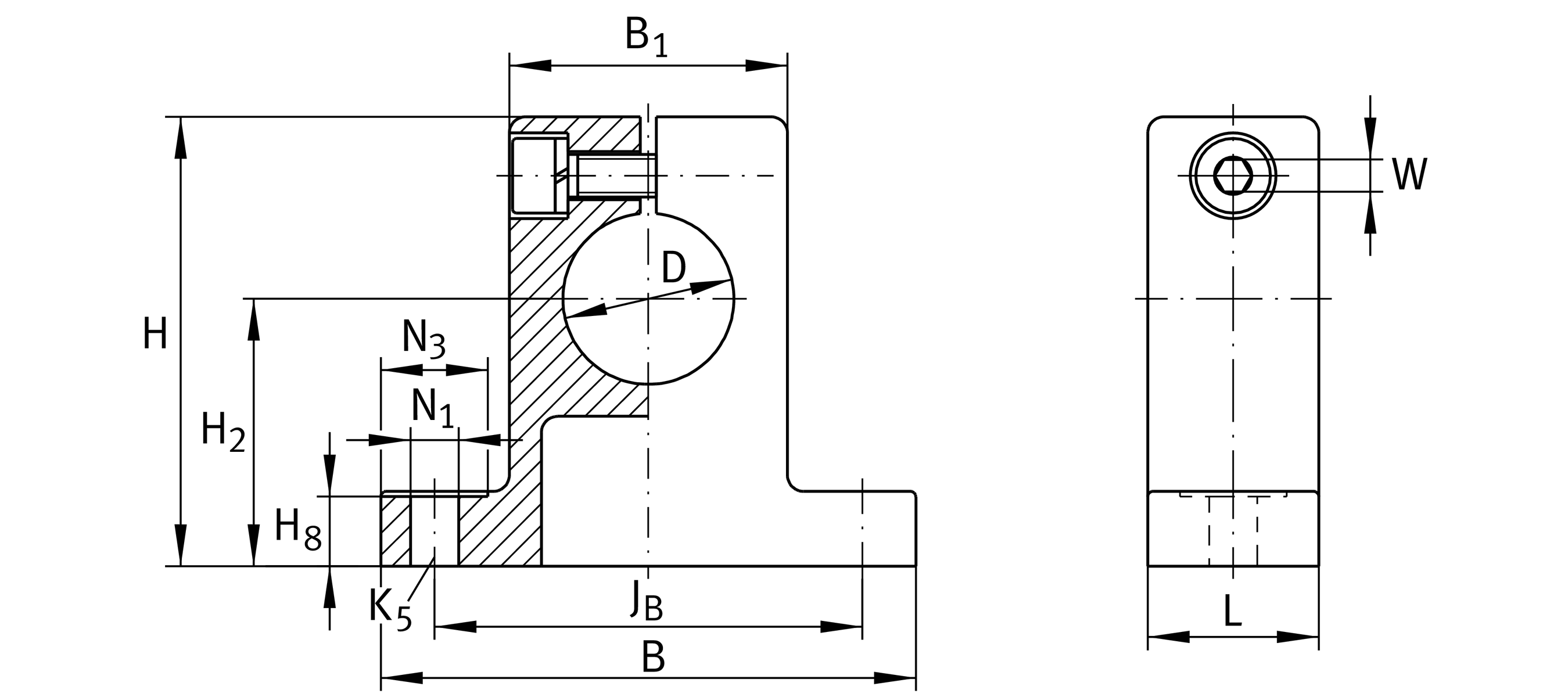

Main Dimensions & Performance Data
D
30 mm
Diameter
B
84 mm
Width
L
28 mm
Length
H
68 mm
height
≈m
0.38 kg
Weight

Mounting dimensions
JB
68 mm
Mounting Dimension
Tol JB
±0,2
Tolerance
B1
45 mm
Mounting Dimension
H2
40 mm
Mounting Dimension
Tol H2
+0,15
Upper tolerance
Tol H2
-0,15
Lower Tolerance
H8
9.5 mm
Mounting Dimension
N1
9 mm
Mounting Dimension 1
N3
18 mm
Mounting Dimension
K5
M8
Size thread fixing screws above
W
5 mm
Width across flats 2

Your current product variant
Size code30
