GWA25
Shaft support block GWA25
Thêm vào yêu cầu báo giá

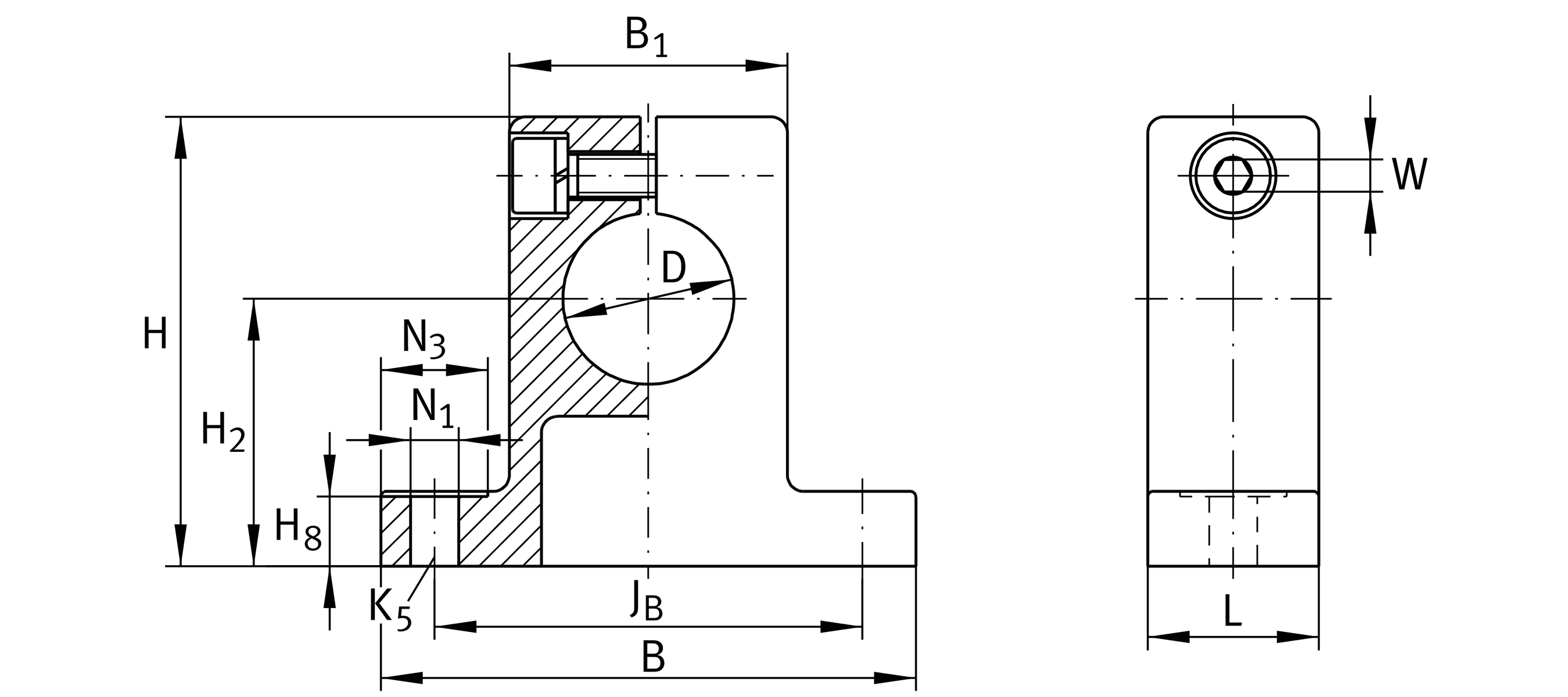

Main Dimensions & Performance Data
D
25 mm
Diameter
B
74 mm
Width
L
25 mm
Length
H
58 mm
height
≈m
0.247 kg
Weight

Mounting dimensions
JB
60 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
B1
38 mm
Mounting Dimension
H2
35 mm
Mounting Dimension
Tol H2
+0,15
Upper tolerance
Tol H2
-0,15
Lower Tolerance
H8
8.5 mm
Mounting Dimension
N1
6.6 mm
Mounting Dimension 1
N3
13 mm
Mounting Dimension
K5
M6
Size thread fixing screws above
W
4 mm
Width across flats 2

Your current product variant
Size code25
