GWH06-B
Shaft support block GWH06-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
D
6 mm
diameter
Tol D
H8
Tolerance
B
32 mm
Width across flats
L
16 mm
Length
H
27 mm
Heigth
≈m
30 g
Weight

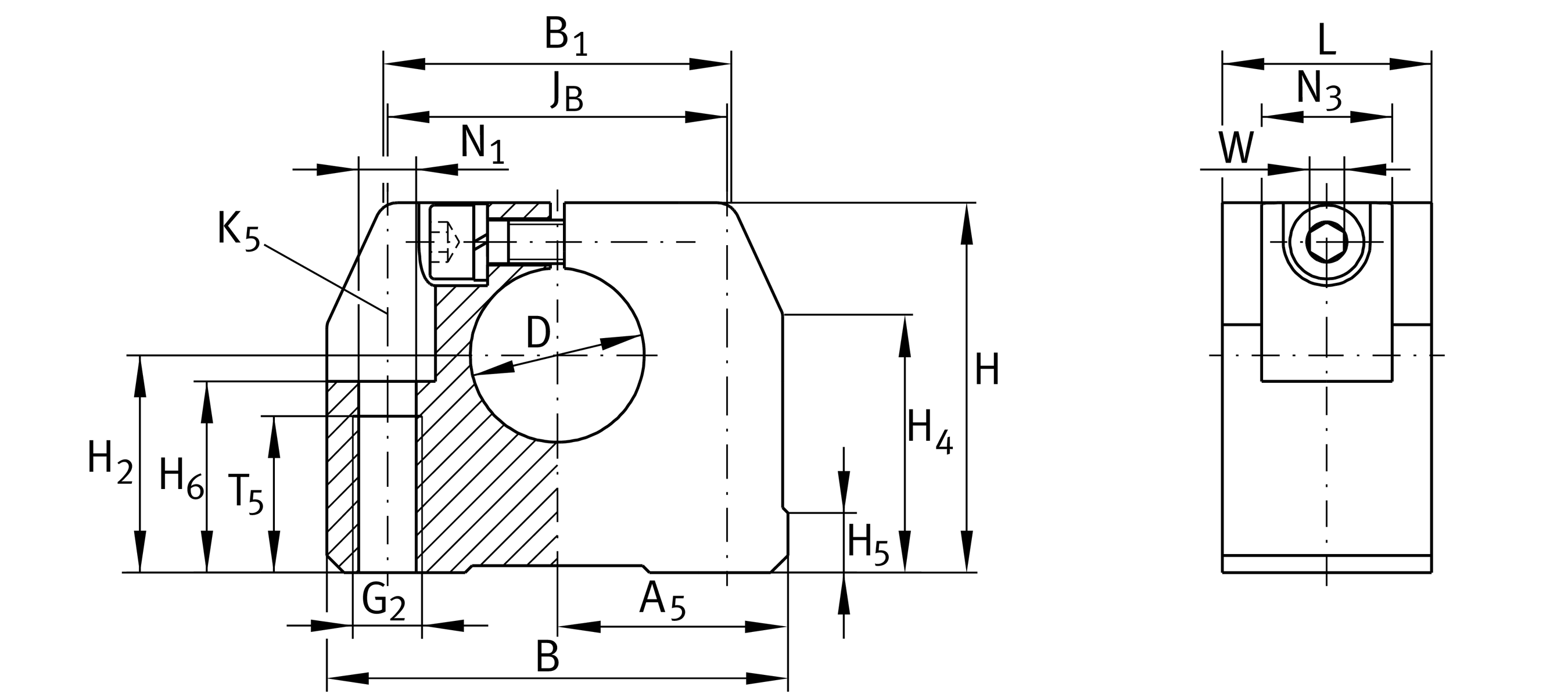

Mounting dimensions
JB
22 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
A5
16 mm
Mounting Dimension
B1
25 mm
Mounting Dimension
H2
15 mm
Mounting Dimension
Tol H2
+0,1
Upper tolerance
Tol H2
-0,1
Lower tolerance
H4
20.6 mm
Mounting Dimension
H5
5 mm
Mounting Dimension
T5
11 mm
Mounting Dimension
H6
13 mm
Mounting Dimension
G2
M5
Mounting thread below
N1
4.3 mm
Mounting Dimension
N3
10 mm
Mounting Dimension
K5
M4
Sie thread fixing screws above 1
W
2.5 mm
Width across Flat 2

Your current product variant
Size code06
SuffixBVersion
