RPB20-XL
Plummer block housing unit RPB20-XL
Thêm vào yêu cầu báo giá

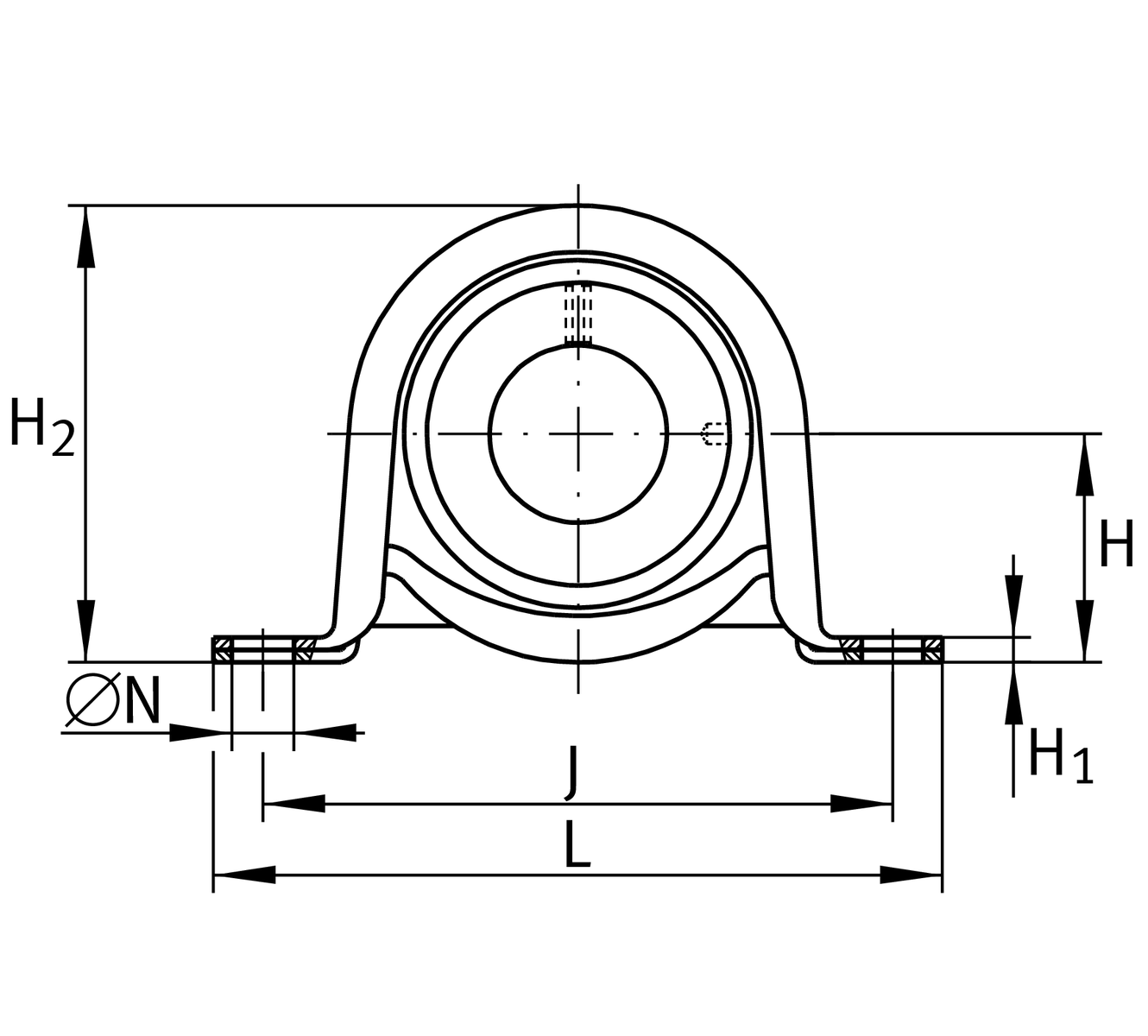

Main Dimensions & Performance Data
d
20 mm
Bore diameter
L
108 mm
Length total
H2
56.5 mm
Height
C0r G
1,100 N
Load carrying capacity (housing)
Cr
13,600 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
≈m
0.37 kg
Weight

Mounting dimensions
J
86 mm
Distance fixing bore
N
11.5 mm
Fixing bore

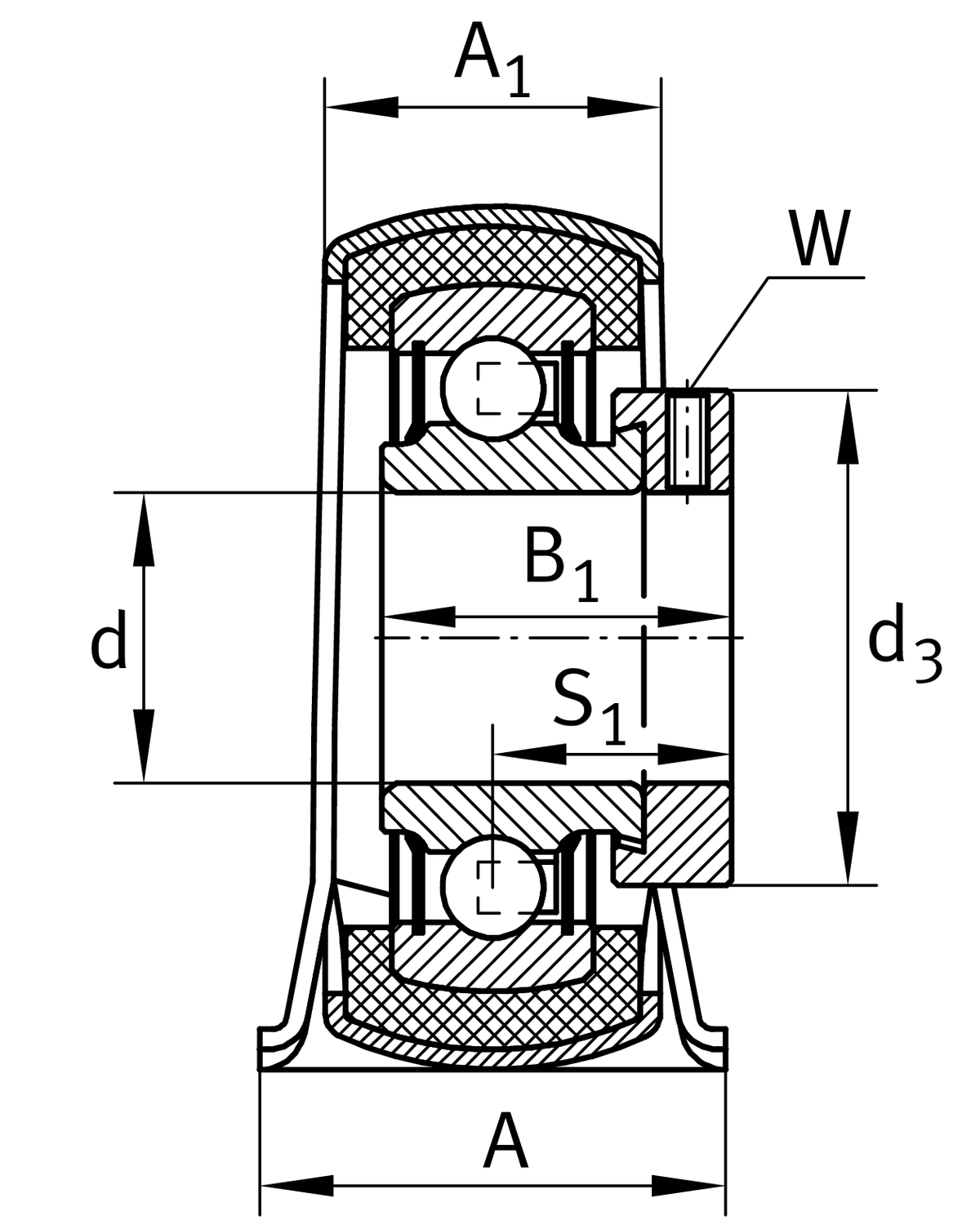

Dimensions
H
28.6 mm
Distance shaft axis
A
31.8 mm
Width (base)
A1
23.5 mm
Width (head)
H1
4 mm
Heigth (base)

Additional information
f0
13.1
Calculation factor
GEH52-BT
Housing
GRG.RABR47/52-AH01
Rubber interliner designation
RAE20-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialStahlblechSteel sheet
