RPB17-XL
Plummer block housing unit RPB17-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
17 mm
Bore diameter
L
98.4 mm
Length total
H2
50.1 mm
Height
C0r G
900 N
Load carrying capacity (housing)
Cr
10,100 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
≈m
0.21 kg
Weight

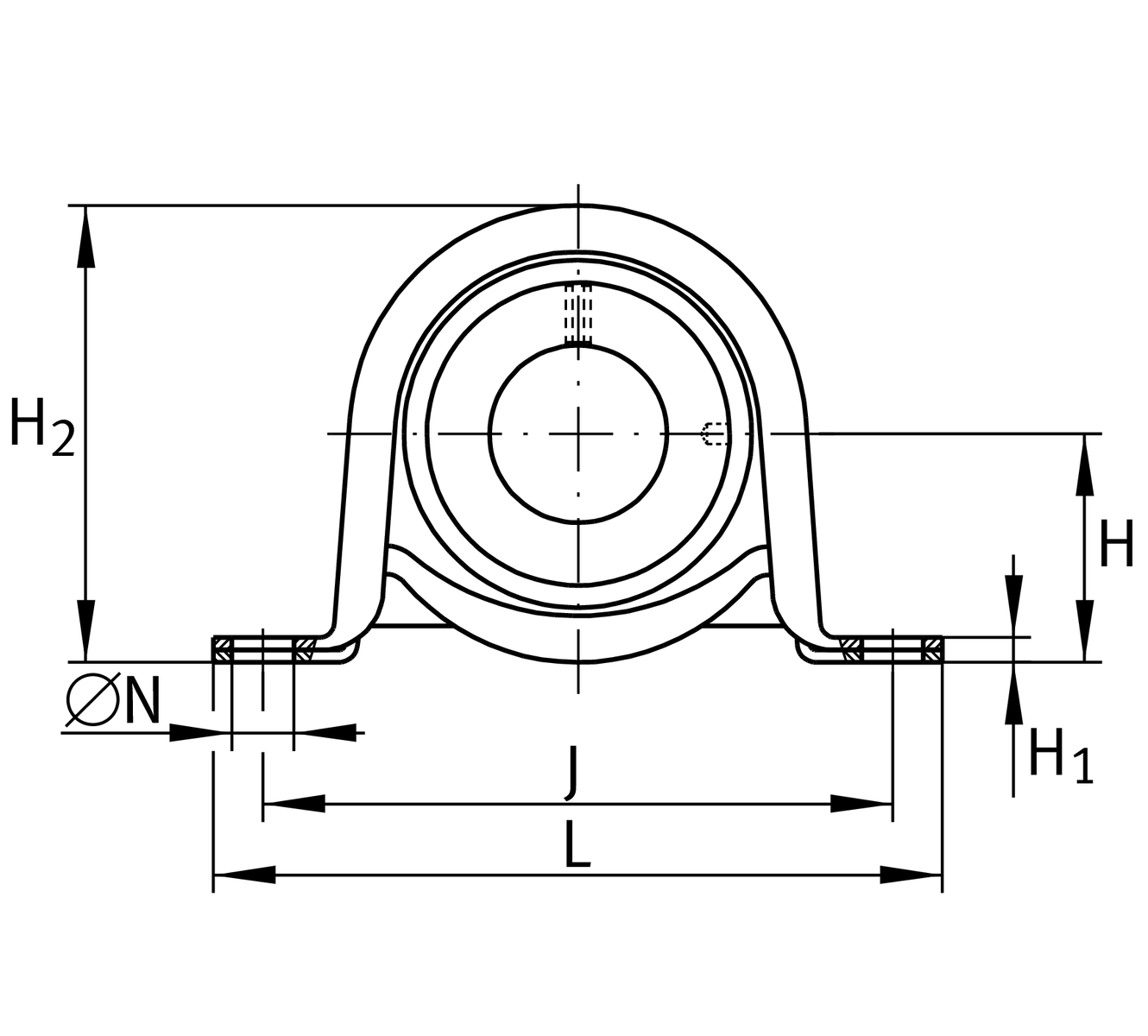

Mounting dimensions
J
76 mm
Distance fixing bore
N
9.5 mm
Fixing bore

Dimensions
H
25.4 mm
Distance shaft axis
A
31.8 mm
Width (base)
A1
22.3 mm
Width (head)
H1
3.3 mm
Heigth (base)

Additional information
f0
13
Calculation factor
GEH47-BT
Housing
GRG.RABR40/47
Rubber interliner designation
RAE17-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialStahlblechSteel sheet
