RPB25-XL
Plummer block housing unit RPB25-XL
Thêm vào yêu cầu báo giá

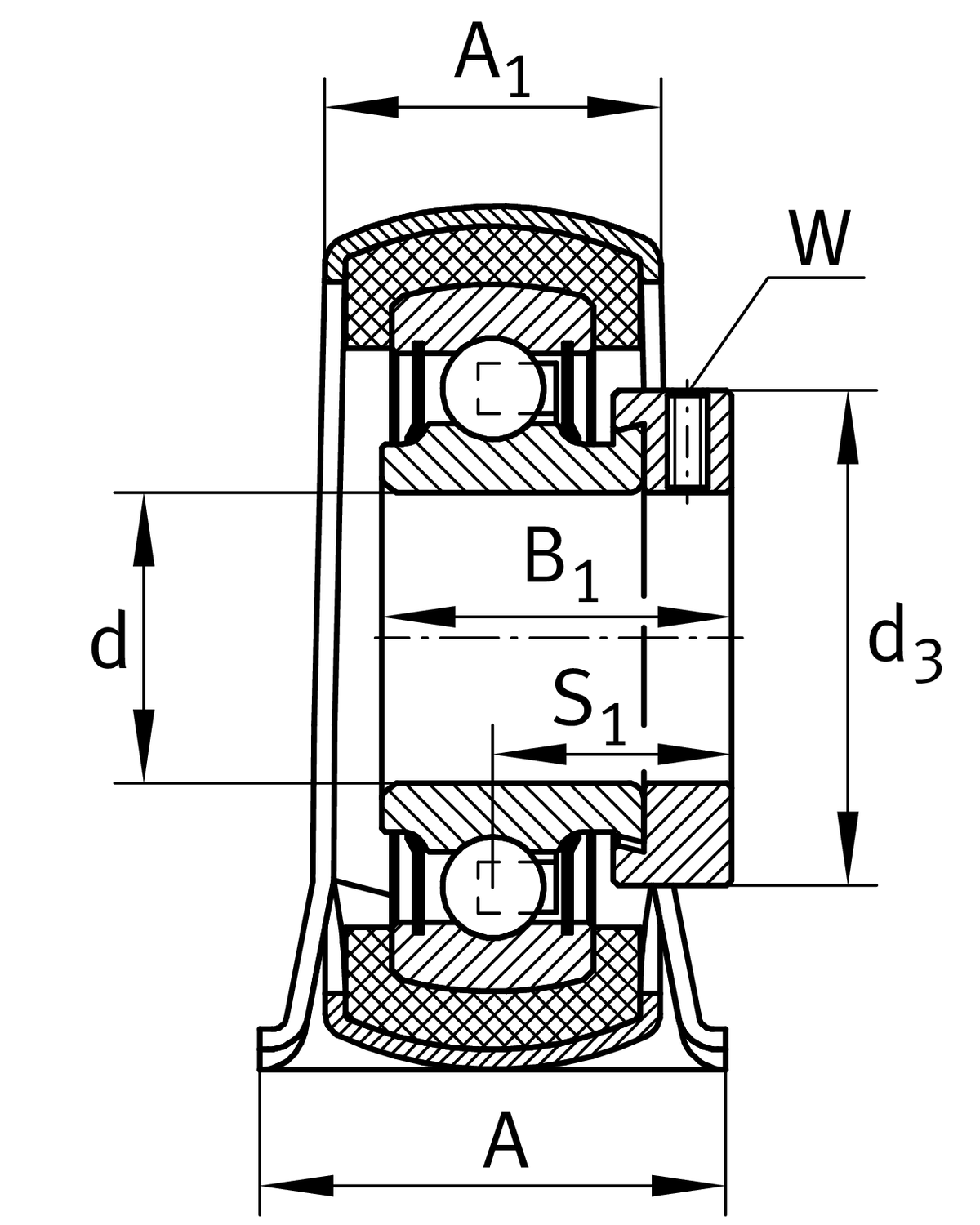

Main Dimensions & Performance Data
d
25 mm
Bore diameter
L
117.5 mm
Length total
H2
66.1 mm
Height
C0r G
1,400 N
Load carrying capacity (housing)
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
0.54 kg
Weight

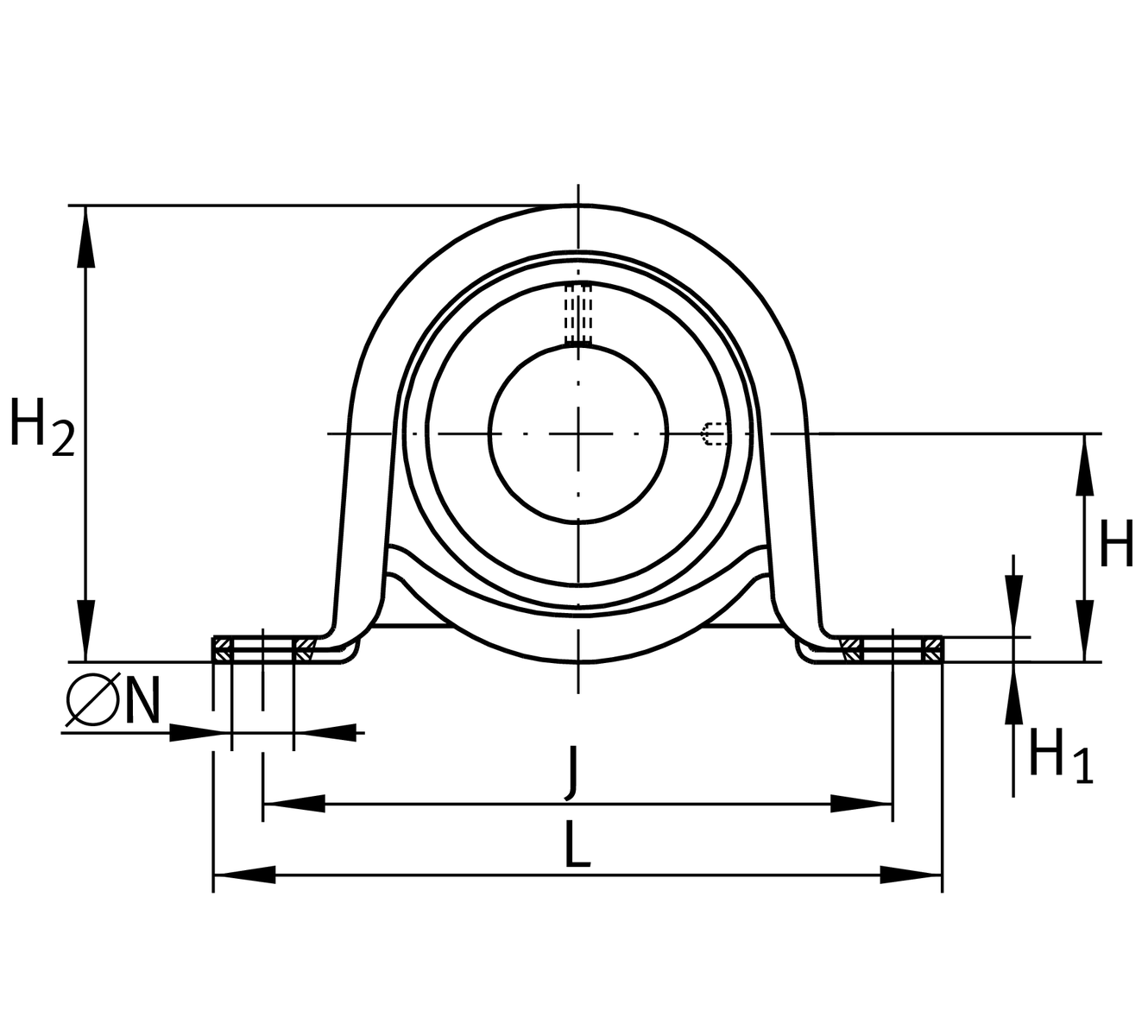

Mounting dimensions
J
95 mm
Distance fixing bore
N
11.5 mm
Fixing bore

Dimensions
H
33.3 mm
Distance shaft axis
A
38 mm
Width (base)
A1
26.5 mm
Width (head)
H1
4 mm
Heigth (base)

Additional information
f0
13.8
Calculation factor
GEH62-BT
Housing
GRG.RABR52/62-AH01
Rubber interliner designation
RAE25-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialStahlblechSteel sheet
