RCRA20/46-XL-FA106
Radial insert ball bearing RCRA20/46-XL-FA106
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
46 mm
Outside diameter
C
18.3 mm
Width, outer ring
B1
24.5 mm
Locking collar total width
Cr
9,400 N
Basic dynamic load rating, radial
C0r
5,000 N
Basic static load rating, radial
Cur
238 N
Fatigue load limit, radial
900 N
Load carrying capacity (rubber interliner)
≈m
0.11 kg
Weight

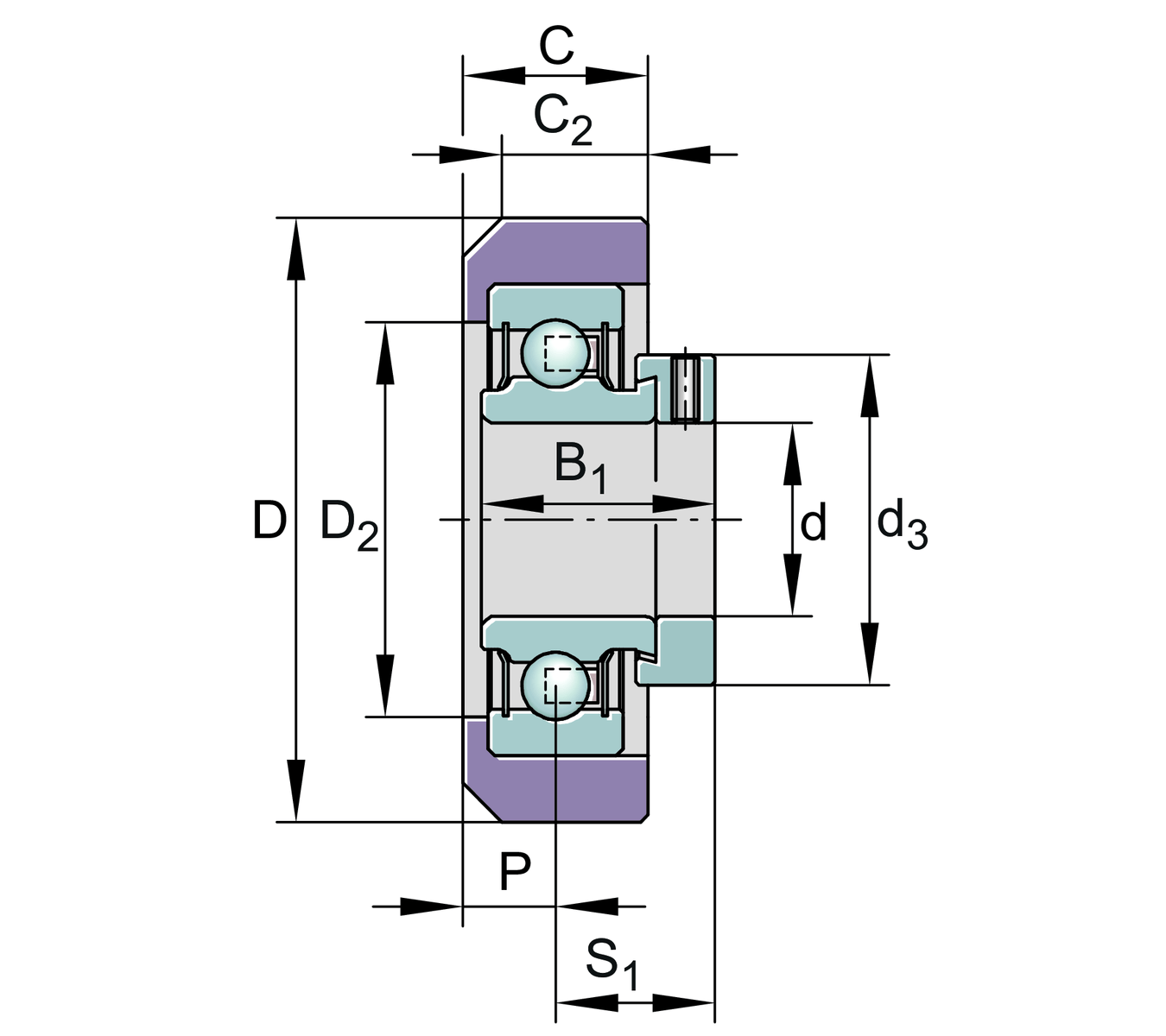

Dimensions
C2
16 mm
Width outside profile of rubber interliner
S1
18.6 mm
Distance raceway to locking collar
D2
35 mm
Flange diameter rubber interliner
d3
30 mm
Outside diameter locking collar/locknut
P
10 mm
Distance raceway of rubber interliner to face side

Calculation factors
f0
13.8
Calculation factor

Additional information
RALE20-XL-NPP-FA106
Bearing designation
Shore A
70 °
Hardness rubber interliner

Your current product variant
Manufacturing instructionFA106Bearing subjected to special noise testing
