RCRB25/57-XL-FA106
Radial insert ball bearing RCRB25/57-XL-FA106
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
57.3 mm
Outside diameter
C
19.8 mm
Width, outer ring
B1
31 mm
Locking collar total width
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
Cur
370 N
Fatigue load limit, radial
1,400 N
Load carrying capacity (rubber interliner)
≈m
0.202 kg
Weight

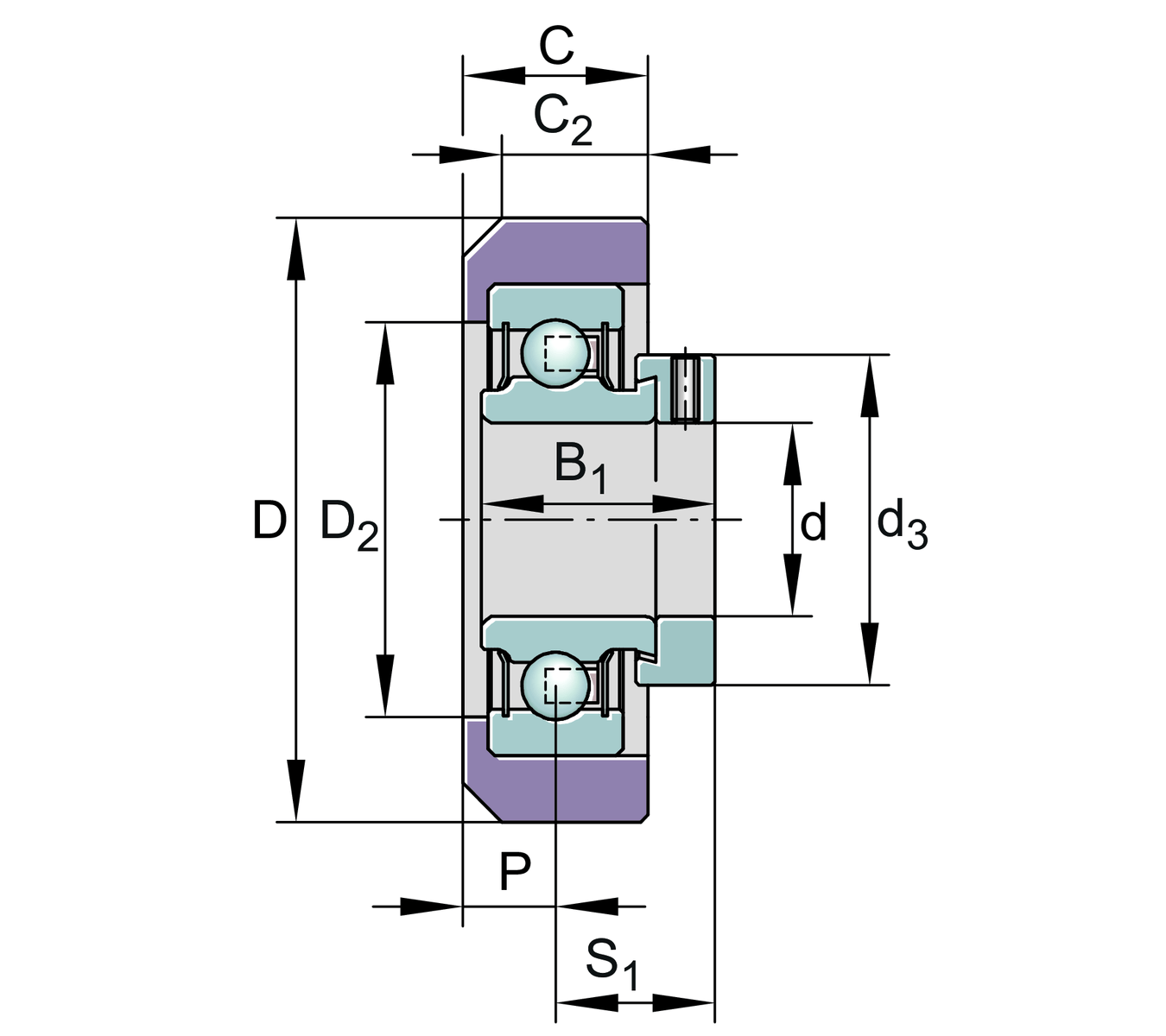

Dimensions
C2
17.5 mm
Width outside profile of rubber interliner
S1
23.5 mm
Distance raceway to locking collar
D2
44.5 mm
Flange diameter rubber interliner
d3
37.5 mm
Outside diameter locking collar/locknut
P
9.8 mm
Distance raceway of rubber interliner to face side

Calculation factors
f0
13.8
Calculation factor

Additional information
RAE25-XL-NPP-FA106
Bearing designation
Shore A
70 °
Hardness rubber interliner

Your current product variant
Manufacturing instructionFA106Bearing subjected to special noise testing
