FAG INA Schaeffler
INA
RCJY90-XL
Flanged housing unit RCJY90-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
90 mm
Bore diameter
L
235 mm
Flange width
U
80.1 mm
Total height unit
Cr
109,000 N
Basic dynamic load rating, radial
C0r
79,000 N
Basic static load rating, radial
Cur
2,700 N
Fatigue load limit, radial
≈m
9.11 kg
Weight

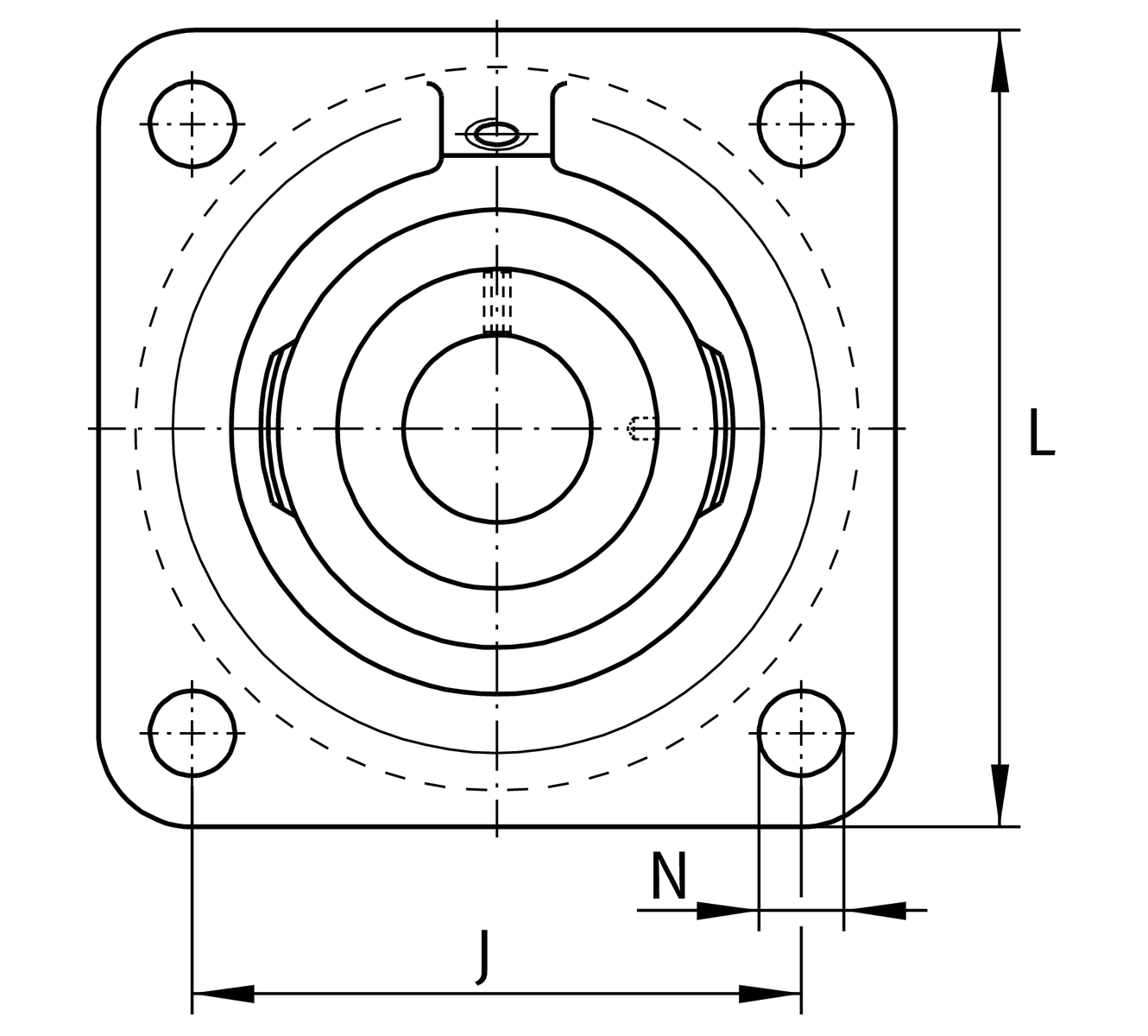

Mounting dimensions
J
187 mm
Distance fixing bore
N
23 mm
Fixing bore
n
4
Number of screwing holes

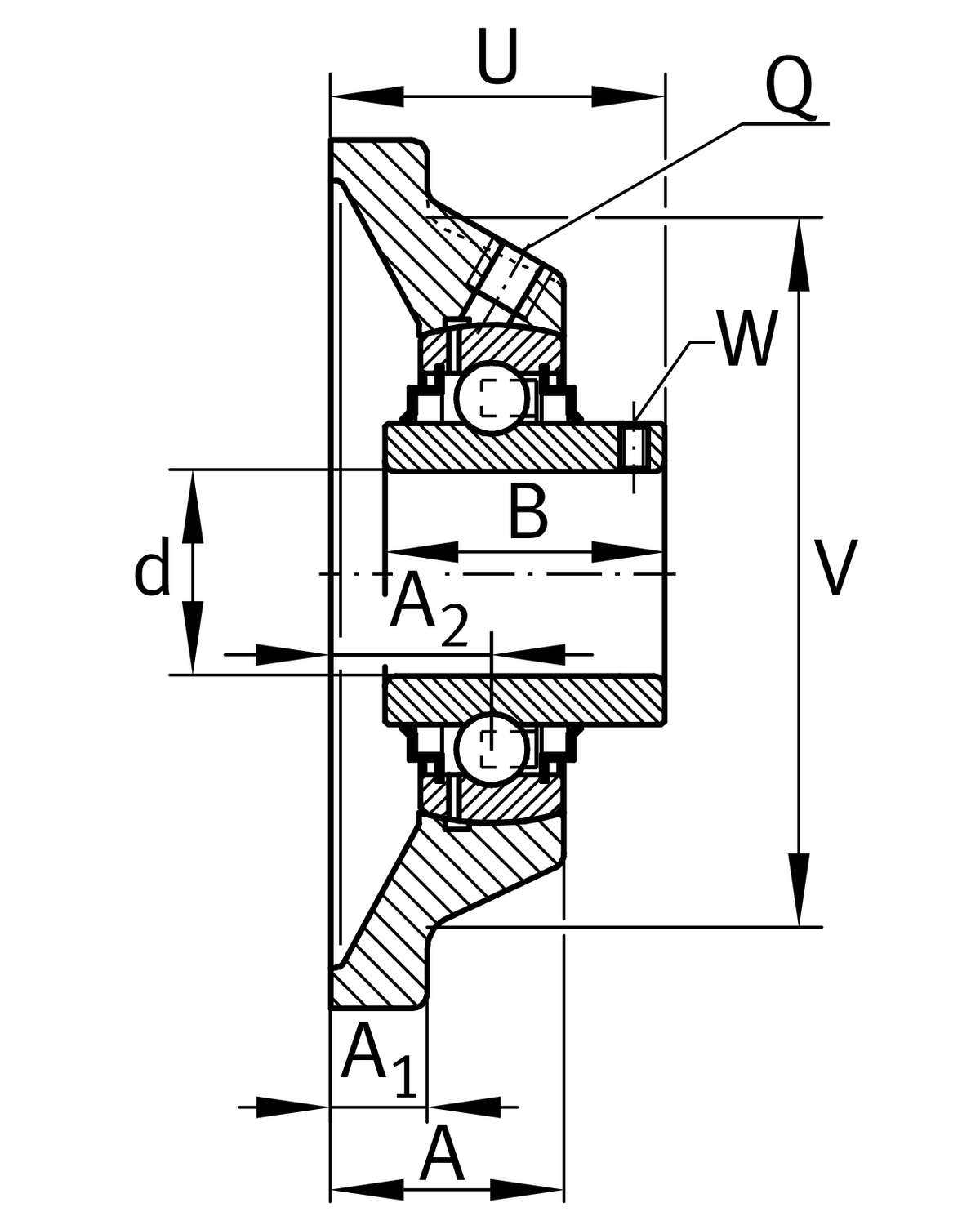

Dimensions
A
39.8 mm
Height housing
A1
22 mm
Thickness of flange
A2
23.8 mm
Distance raceway
B
96 mm
Width
V
200 mm
Shoulder diameter housing
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
CJ18
Housing
GYE90-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
