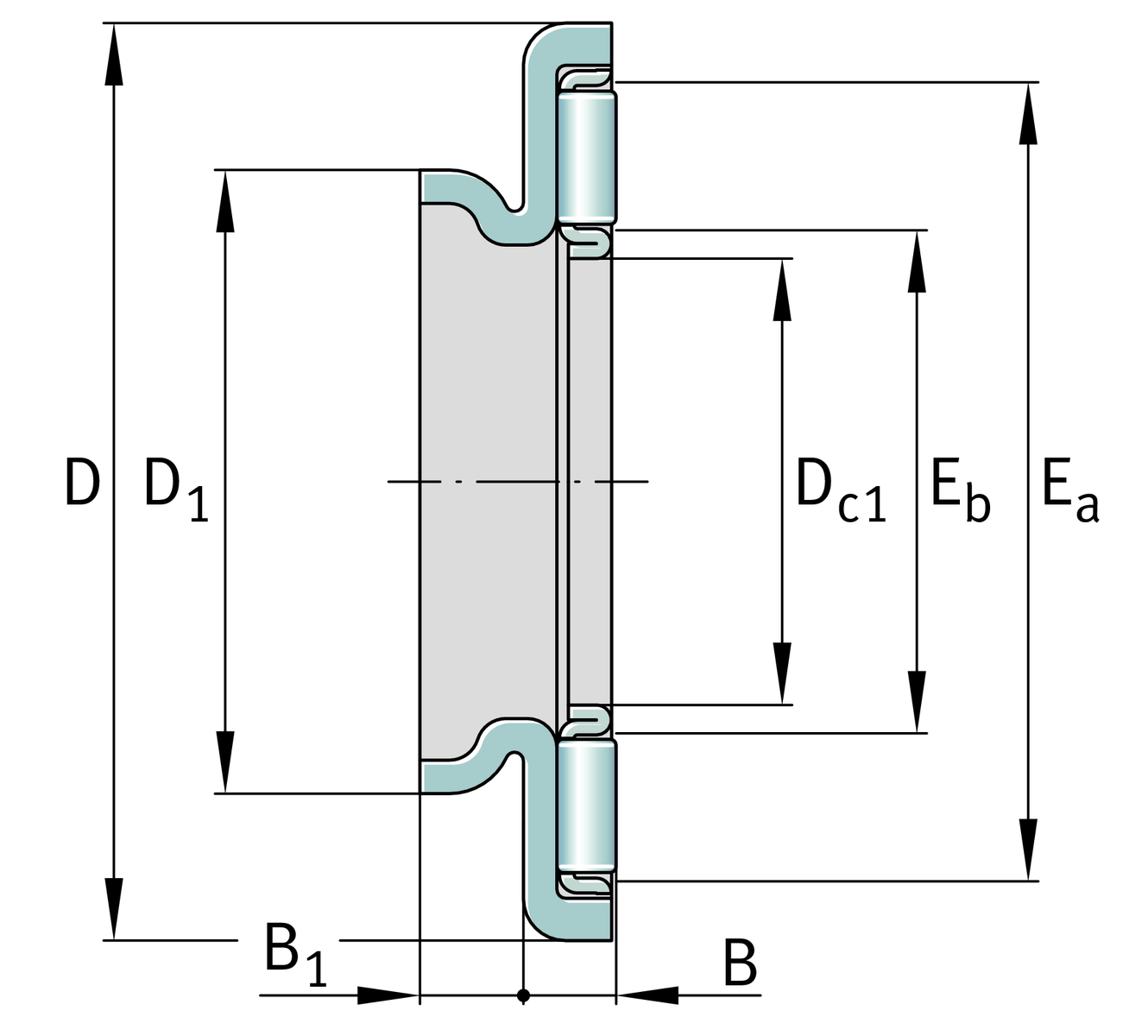

Main Dimensions & Performance Data
| Dc1 | 12 mm | Bore diameter cage |
| D | 29 mm | Outside diameter bearing washer |
| B | 3.2 mm | Height bearing |
| B1 | 3 mm | Height centering collar |
| D1 | 16 mm | Outside diameter centering collar |
| Ea | 25 mm | Raceway dimension |
| Eb | 14 mm | Raceway dimension |
| C | 9,900 N | Basic dynamic load rating, axial |
| C0a | 29,000 N | Basic static load rating, axial |
| cua | 2,950 N | Fatigue load limit, axial |
| nG | 15,200 1/min | Limiting speed |
| n ϑr | 8,100 1/min | Reference speed |
| ≈m | 9.8 g | Weight |

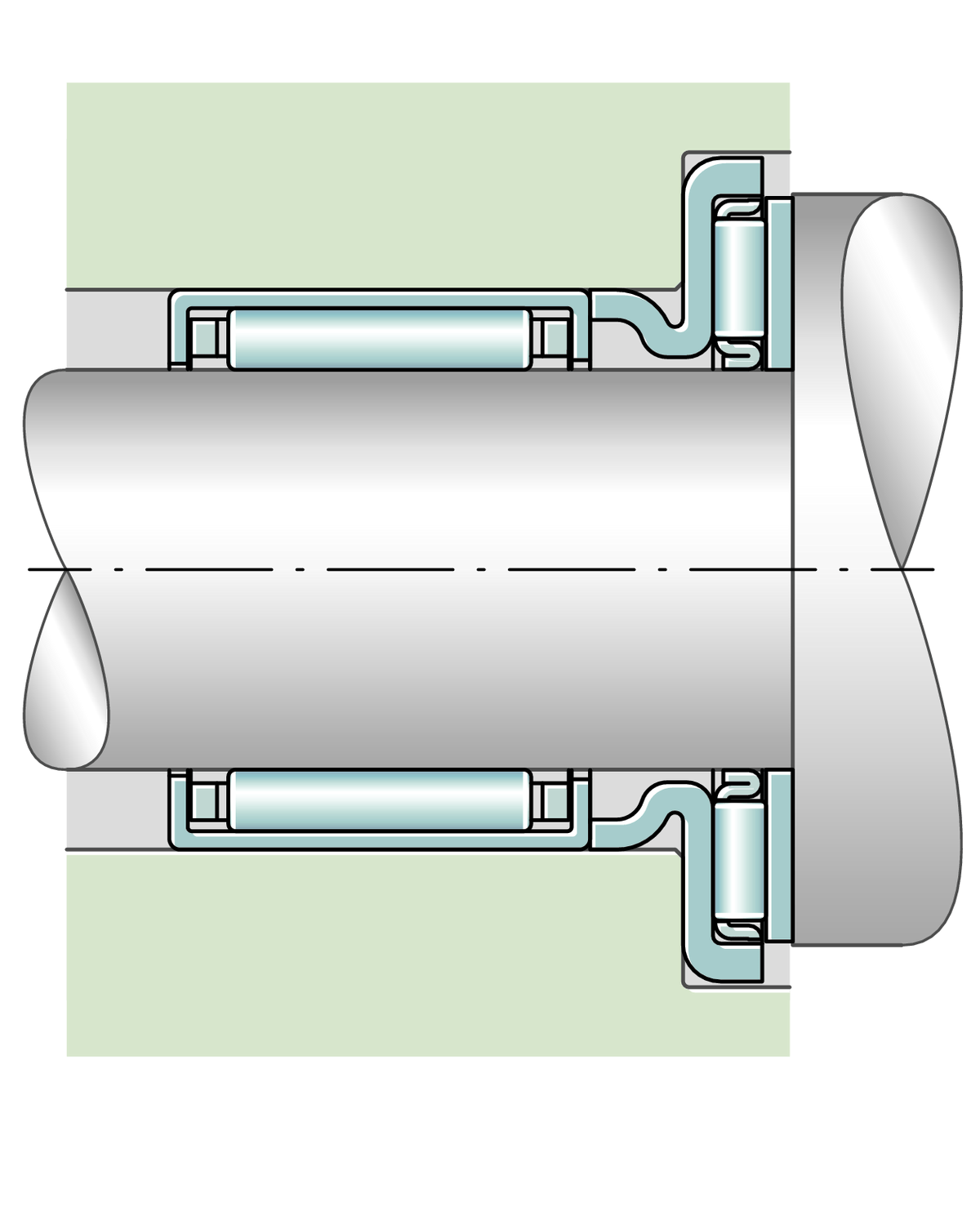

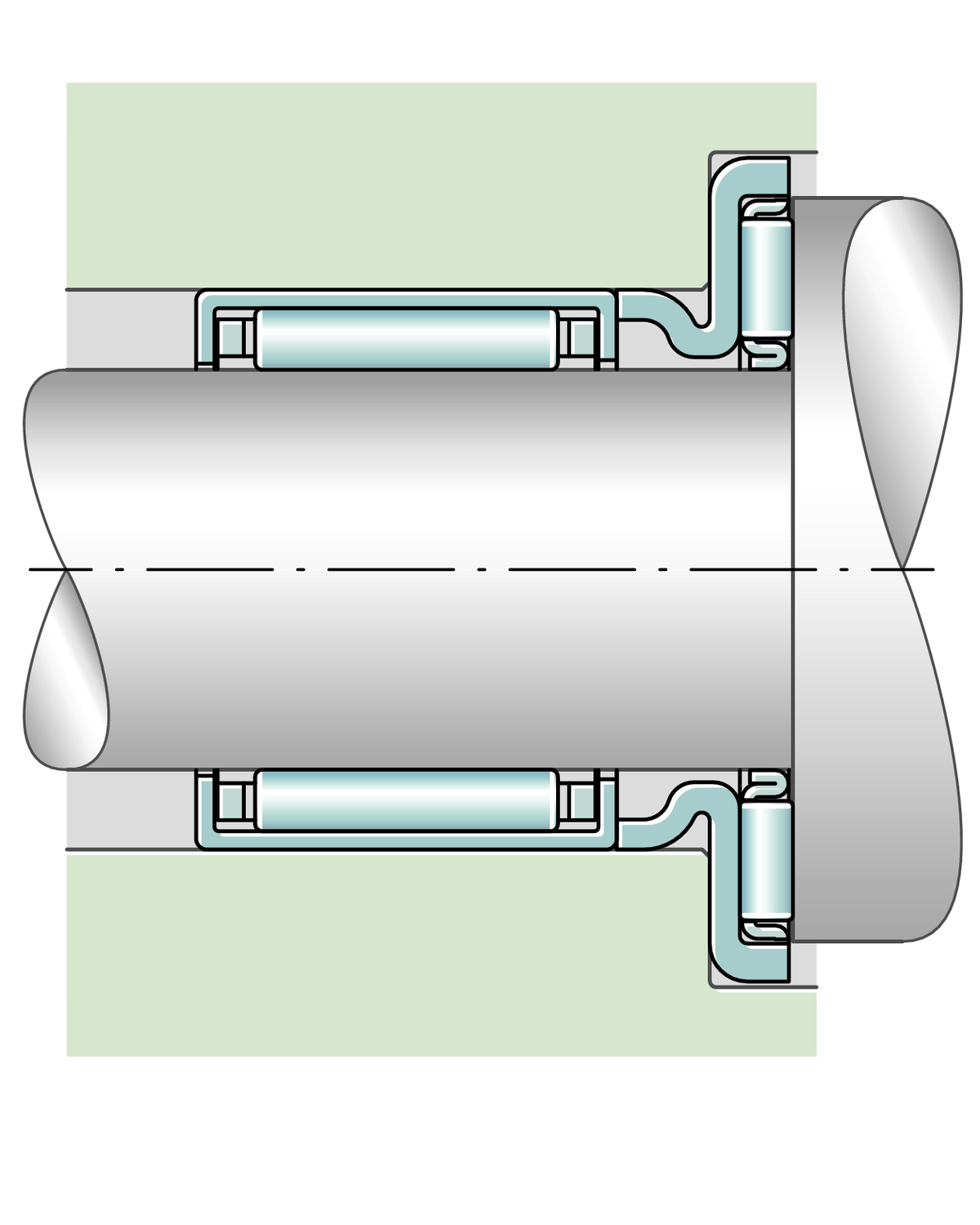

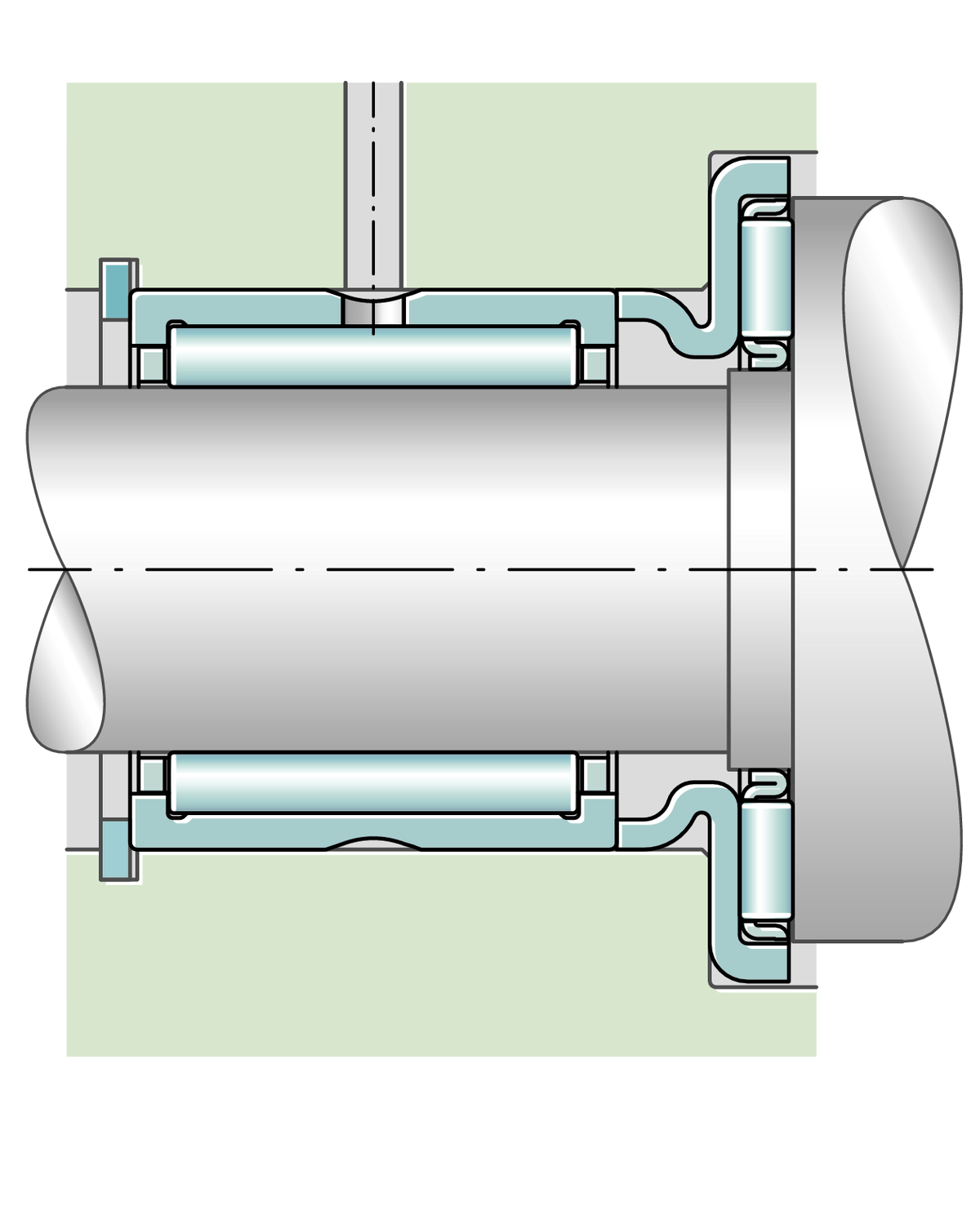

Additional information
AS1226 | Axial bearing washer | |
HK1210 | Drawn cup needle roller bearings for radial bearing arrangement | |
BK1210 | Needle bush | |
NKI6/12-TV | Needle roller bearings with inner ring | |
NKI6/16-TV | Needle roller bearings with inner ring | |
NK9/12-TV | Needle roller bearings with out inner ring | |
NK9/16-TV | Needle roller bearings with out inner ring |
