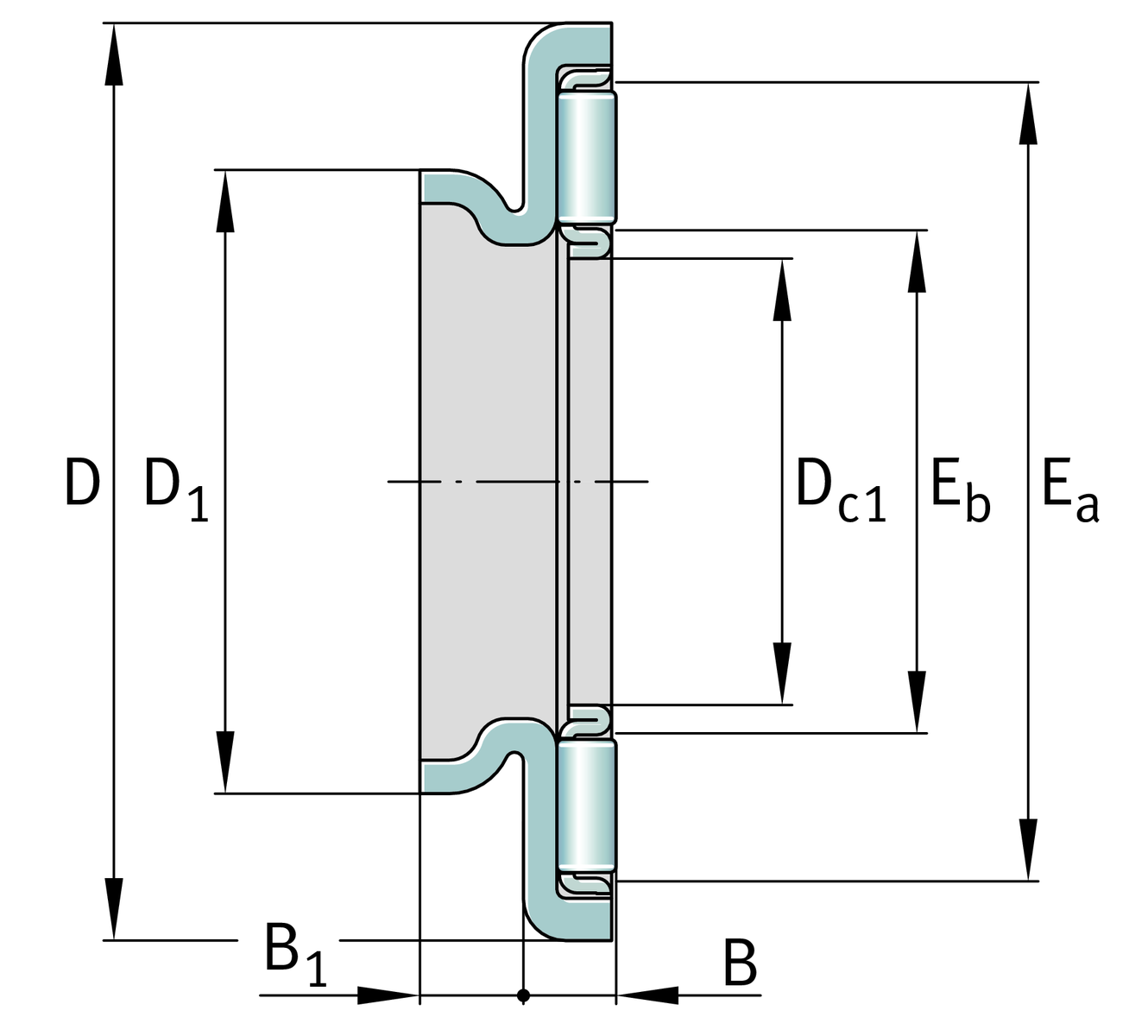

Main Dimensions & Performance Data
| Dc1 | 15 mm | Bore diameter cage |
| D | 31 mm | Outside diameter bearing washer |
| B | 3.2 mm | Height bearing |
| B1 | 3.5 mm | Height centering collar |
| D1 | 21 mm | Outside diameter centering collar |
| Ea | 27 mm | Raceway dimension |
| Eb | 17 mm | Raceway dimension |
| C | 11,400 N | Basic dynamic load rating, axial |
| C0a | 36,000 N | Basic static load rating, axial |
| cua | 3,650 N | Fatigue load limit, axial |
| nG | 13,400 1/min | Limiting speed |
| n ϑr | 6,400 1/min | Reference speed |
| ≈m | 10.5 g | Weight |
Additional information
AS1528 | Axial bearing washer | |
HK1514-RS | Drawn cup needle roller bearings turned | |
HK1516 | Drawn cup needle roller bearings | |
HK1522-ZW | Drawn cup needle roller bearings | |
HK1512 | Drawn cup needle roller bearings for radial bearing arrangement | |
BK1512 | Needle bush | |
BK1516 | Needle bush |
