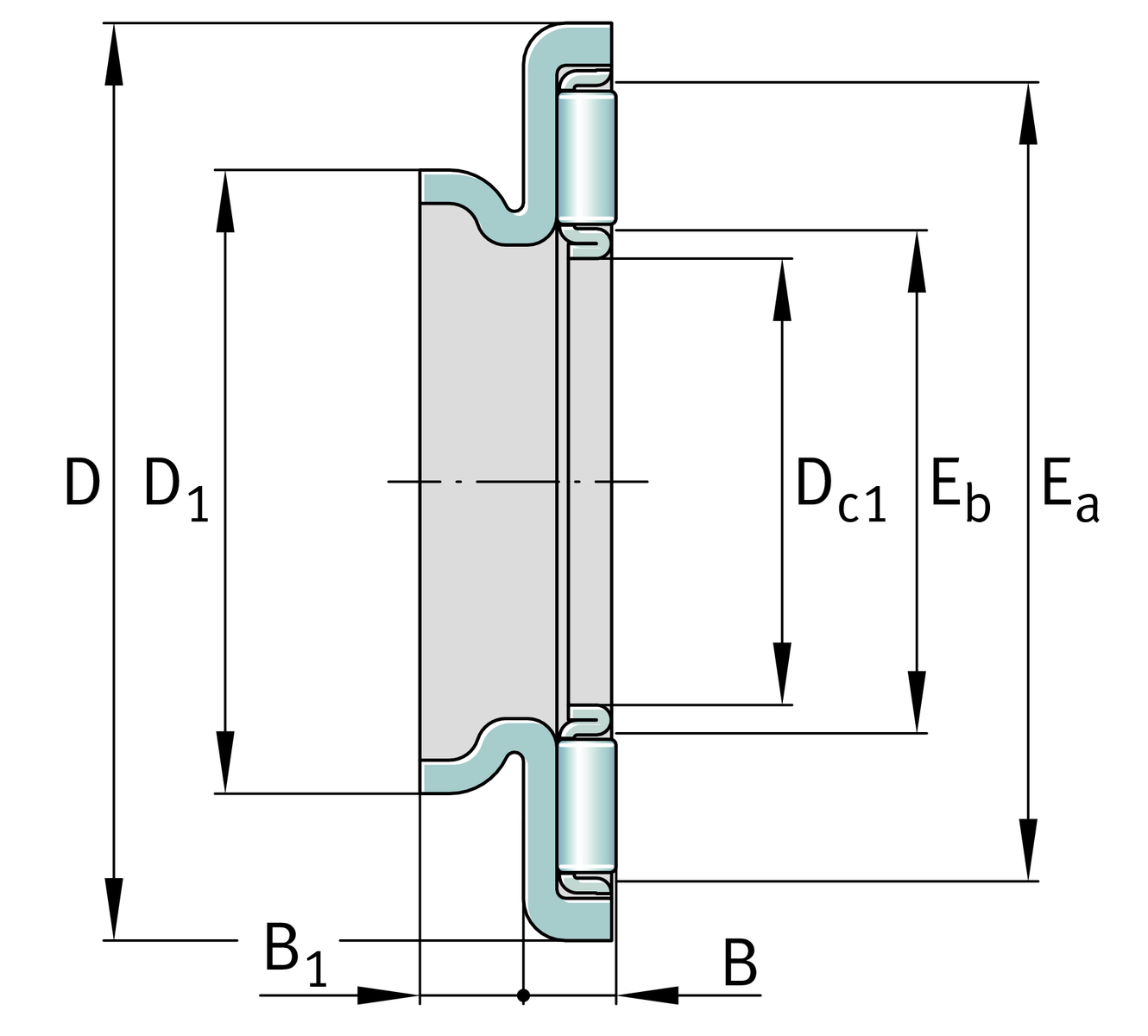

Main Dimensions & Performance Data
| Dc1 | 10 mm | Bore diameter cage |
| D | 27 mm | Outside diameter bearing washer |
| B | 3.2 mm | Height bearing |
| B1 | 3 mm | Height centering collar |
| D1 | 14 mm | Outside diameter centering collar |
| Ea | 23 mm | Raceway dimension |
| Eb | 12 mm | Raceway dimension |
| C | 9,200 N | Basic dynamic load rating, axial |
| C0a | 25,500 N | Basic static load rating, axial |
| cua | 2,550 N | Fatigue load limit, axial |
| nG | 16,900 1/min | Limiting speed |
| n ϑr | 9,300 1/min | Reference speed |
| ≈m | 8.68 g | Weight |
Additional information
AS1024 | Axial bearing washer | |
HK1012 | Drawn cup needle roller bearings | |
HK1015 | Drawn cup needle roller bearings | |
HK1010 | Drawn cup needle roller bearings for radial bearing arrangement | |
BK1010 | Needle bush | |
BK1012 | Needle bush | |
BK1015 | Needle bush | |
NK7/10-TV | Needle roller bearings with out inner ring | |
NK7/12-TV | Needle roller bearings with out inner ring |
