GE12-ZO-E
Spherical plain bearing GE12-ZO-E
Thêm vào yêu cầu báo giá

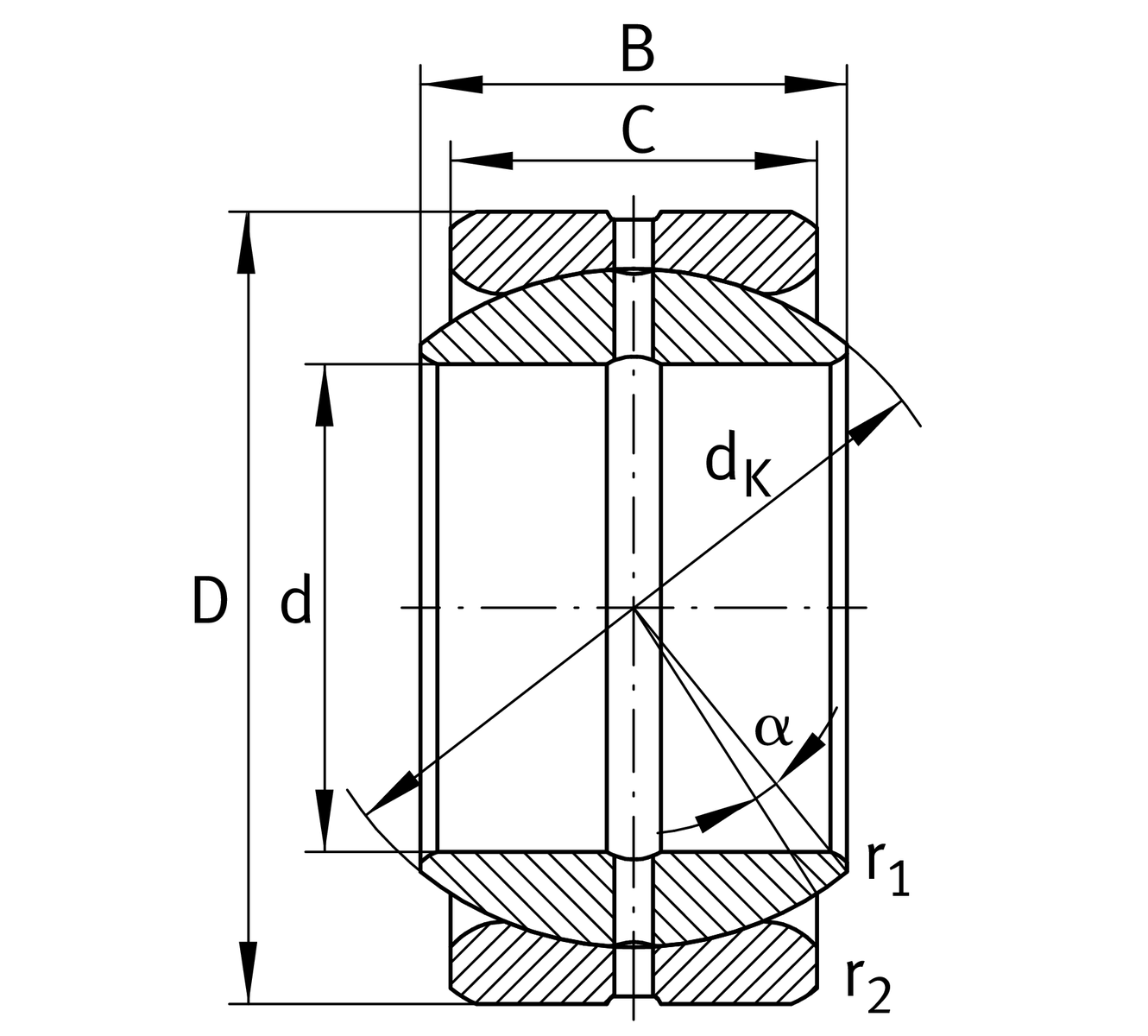

Main Dimensions & Performance Data
d
12.7 mm
Bore diameter bearing
D
22.225 mm
Outside diameter bearing
B
11.1 mm
Width Inner ring
Cr
9,700 N
Basic dynamic load rating, radial
C0r
48,500 N
Basic static load rating, radial
≈m
0.022 kg
Weight

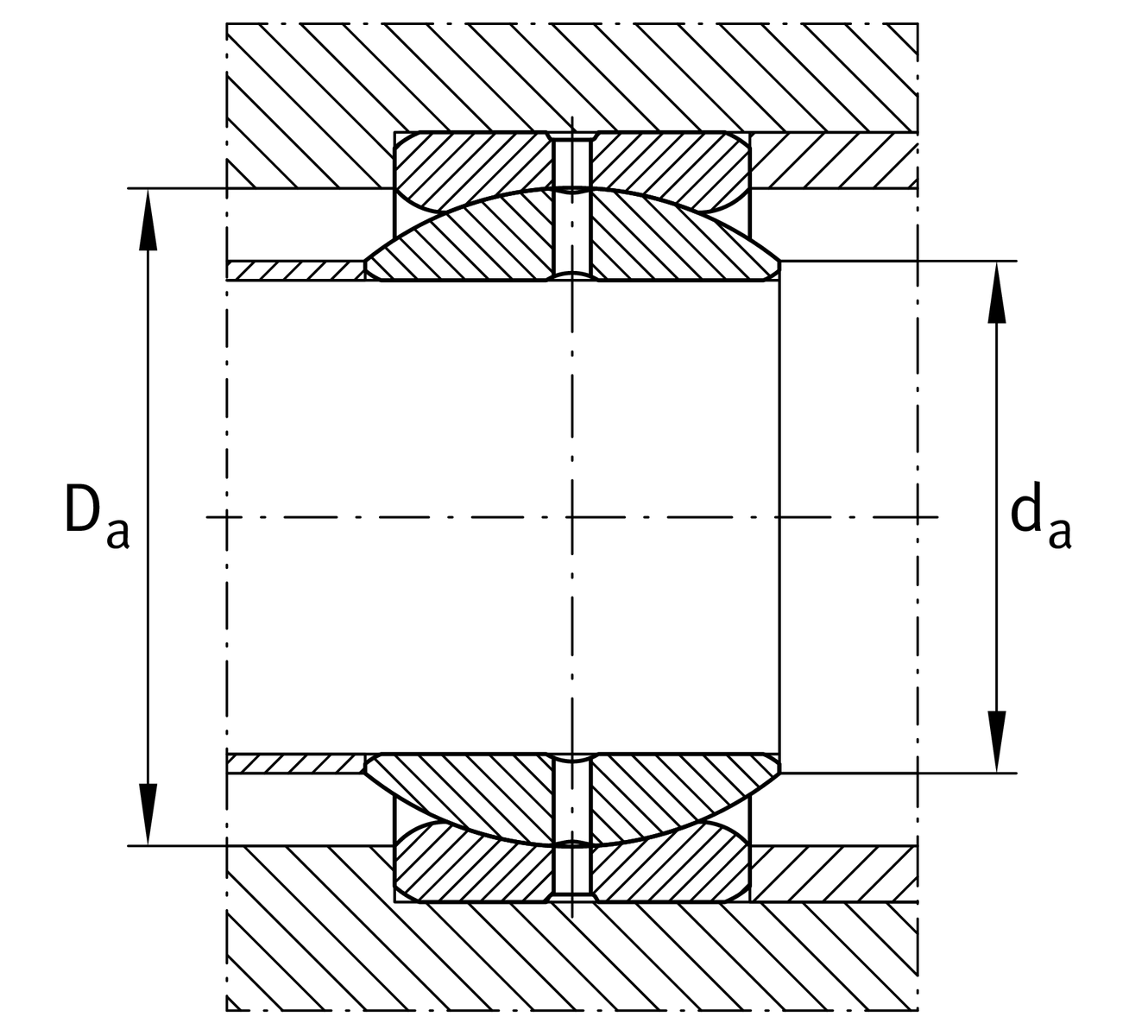

Mounting dimensions
r1smin
0.15 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
14.1 mm
Connection measure Inner ring
Da min
22 mm
Housing Connection Diameter

Dimensions
C
9.525 mm
Width Outer ring
dK
18 mm
Ball diameter
α
6 °
Tilt angle
dOT
0 mm
Bore diameter bearing, upper tolerance
dUT
-0.008 mm
Bore diameter bearing, lower tolerance
dT
0,008
Bore diameter bearing, tolerance
DOT
0 mm
Outside diameter, upper tolerance
DUT
-0.009 mm
Outside diameter, lower tolerance
BOT
0 mm
Width inner ring, upper tolerance
Gr
0,05 - 0,1
Radial Clearance
BUT
-0.12 mm
Width inner ring, lower tolerance
COT
0 mm
Width outer ring, upper tolerance
CUT
-0.24 mm
Width outer ring, lower tolerance

Temperature range
Tmin
-60 °C
Operating temperature min.
Tmax
200 °C
Operating temperature max.

Your current product variant
SealingWithout
