GE120-AW

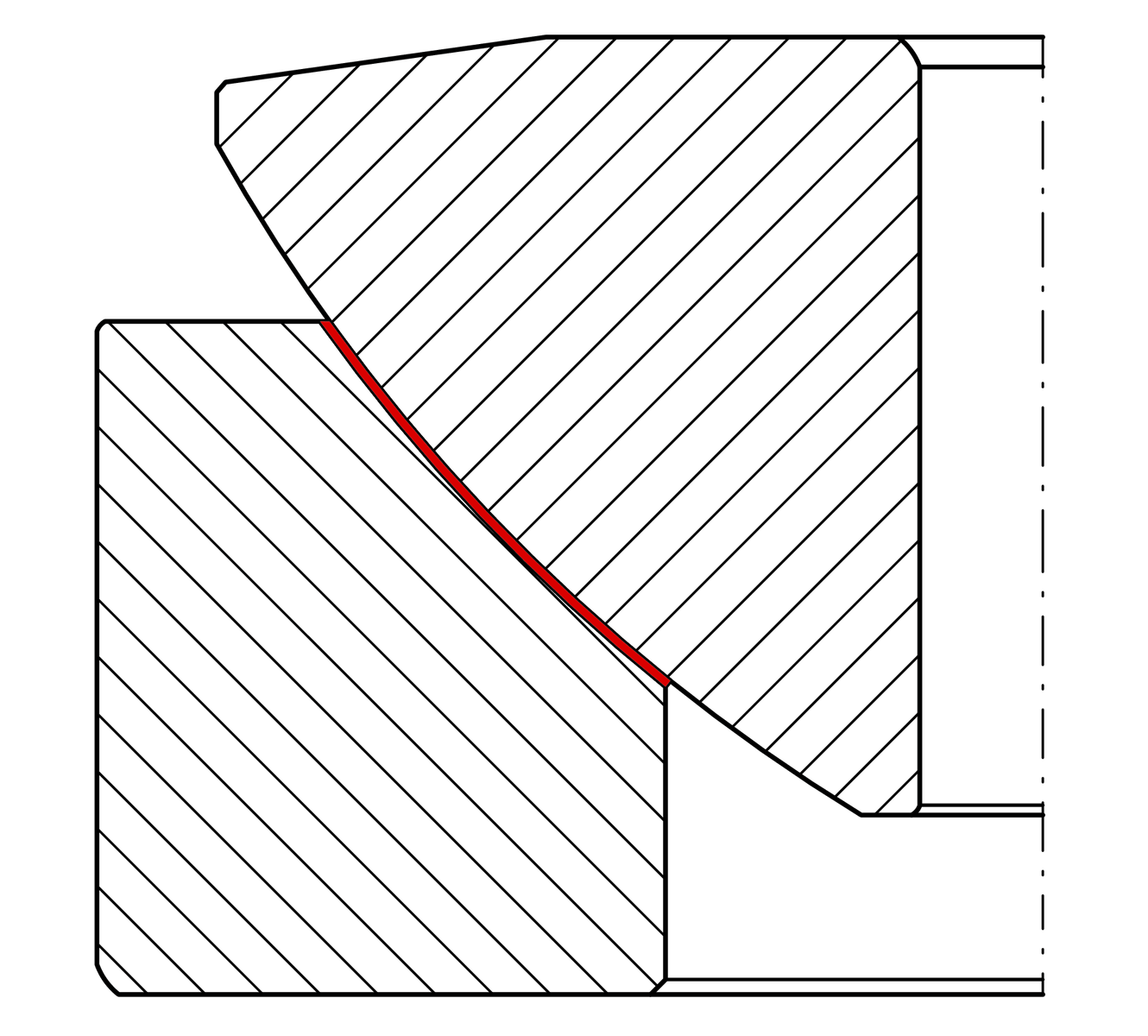

Spherical plain bearing GE120-AW
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
120 mm
Bore diameter bearing
D
230 mm
Outside diameter bearing
T
64 mm
Height
B
52 mm
Width Inner ring
Ca
3,740,000 N
Basic dynamic load rating, axial
C0a
6,230,000 N
Basic static load rating, axial
≈m
13.2 kg
Weight

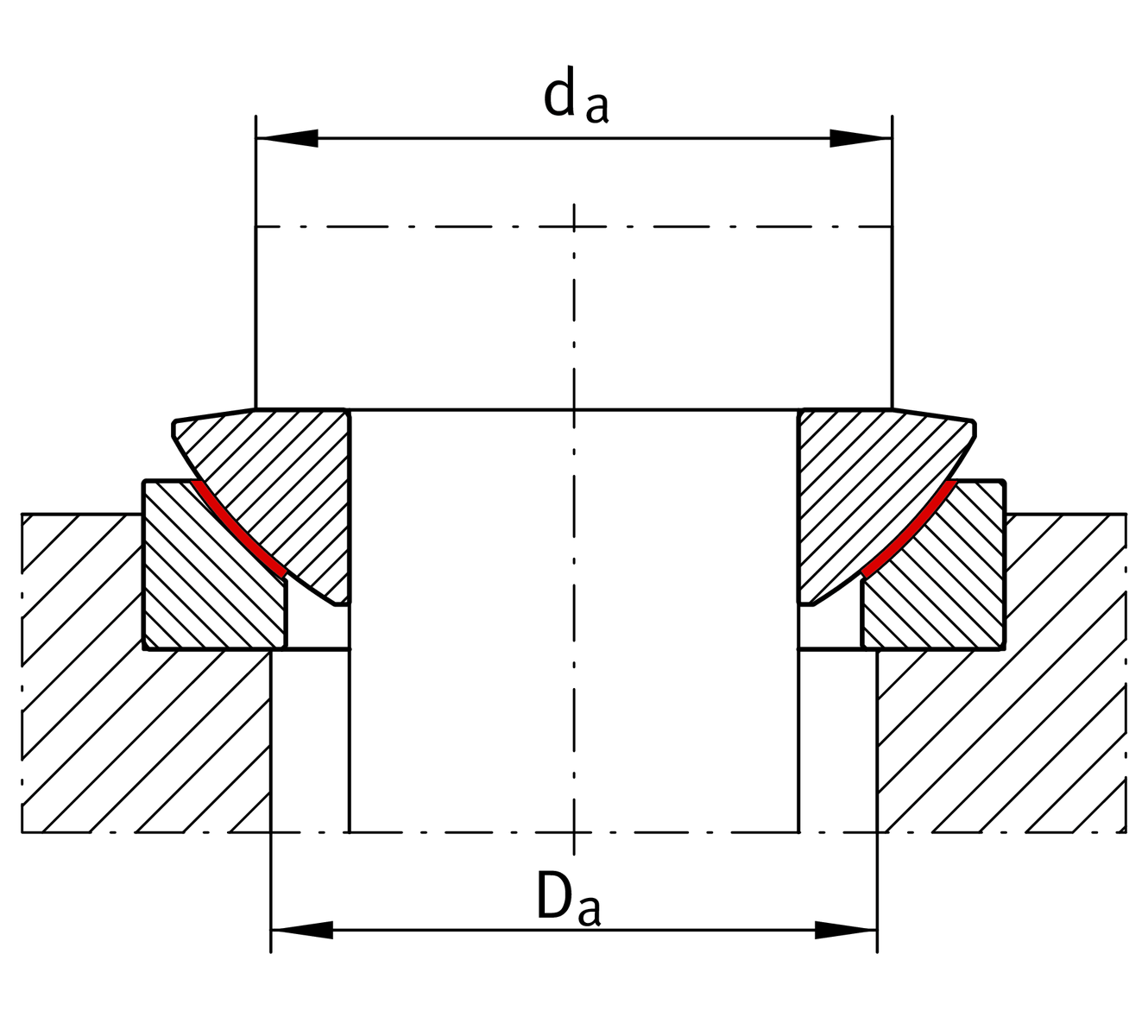

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
170 mm
Connection measure Inner ring
Da min
162 mm
Housing Connection Diameter

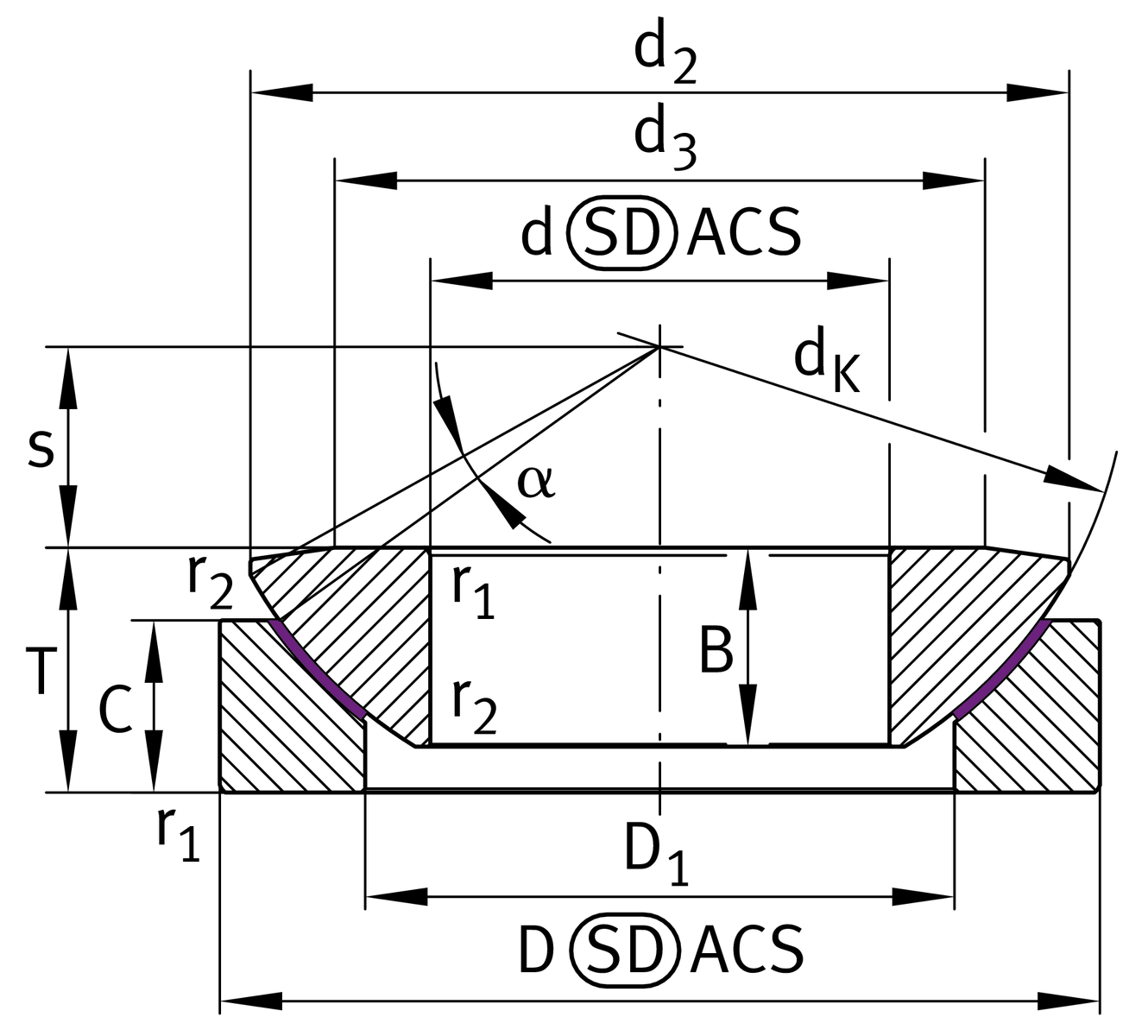

Dimensions
dK
245 mm
Ball diameter
d2
214 mm
Outer eye diameter
d3
170 mm
Front surface diameter of shaft washer
D1
154 mm
Bore diameter of housing washer
C
45 mm
Width Outer ring
s
52.5 mm
Plane Surface Spacing
α
6.5 °
Tilt angle
dOT
0 mm
Bore diameter bearing, upper tolerance
dUT
-0.02 mm
Bore diameter bearing, lower tolerance
DOT
0 mm
Outside diameter, upper tolerance
DUT
-0.03 mm
Outside diameter, lower tolerance
TOT
0 mm
Height, upper tolerance
BOT
0 mm
Width inner ring, upper tolerance
TUT
-0.5 mm
Height, lower tolerance
BUT
-0.4 mm
Width inner ring, lower tolerance
COT
0 mm
Width outer ring, upper tolerance
CUT
-0.4 mm
Width outer ring, lower tolerance

Temperature range
Tmin
-50 °C
Operating temperature min.
Tmax
150 °C
Operating temperature max.

Your current product variant
FabricELGOGLIDEELGOGLIDE
