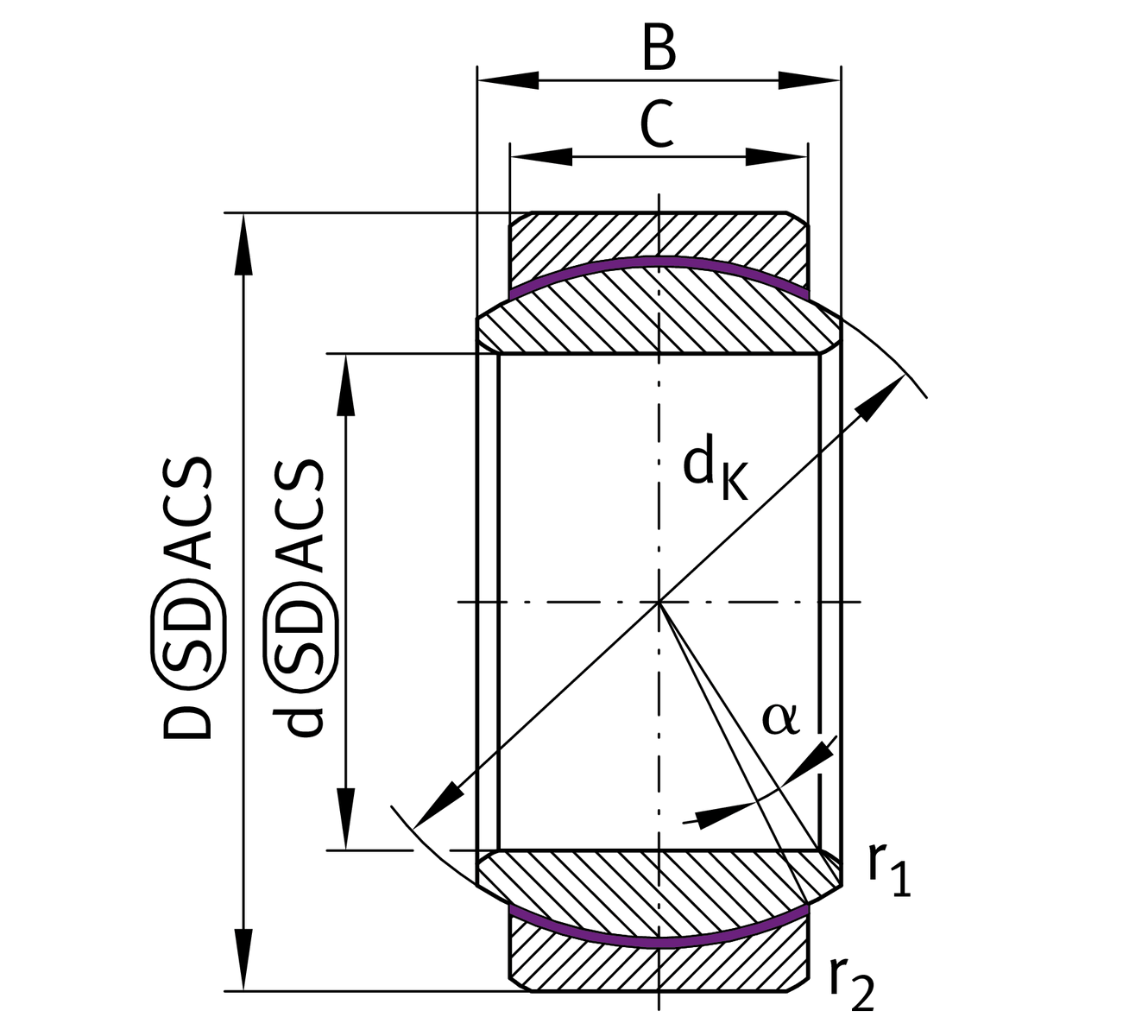

Main Dimensions & Performance Data
| d | 12 mm | Bore diameter bearing |
| D | 22 mm | Outside diameter bearing |
| B | 10 mm | Width Inner ring |
| C | 7 mm | Width Outer ring |
| Cr | 11,300 N | Basic dynamic load rating, radial |
| C0r | 28,400 N | Basic static load rating, radial |
| ≈m | 15.66 g | Weight |

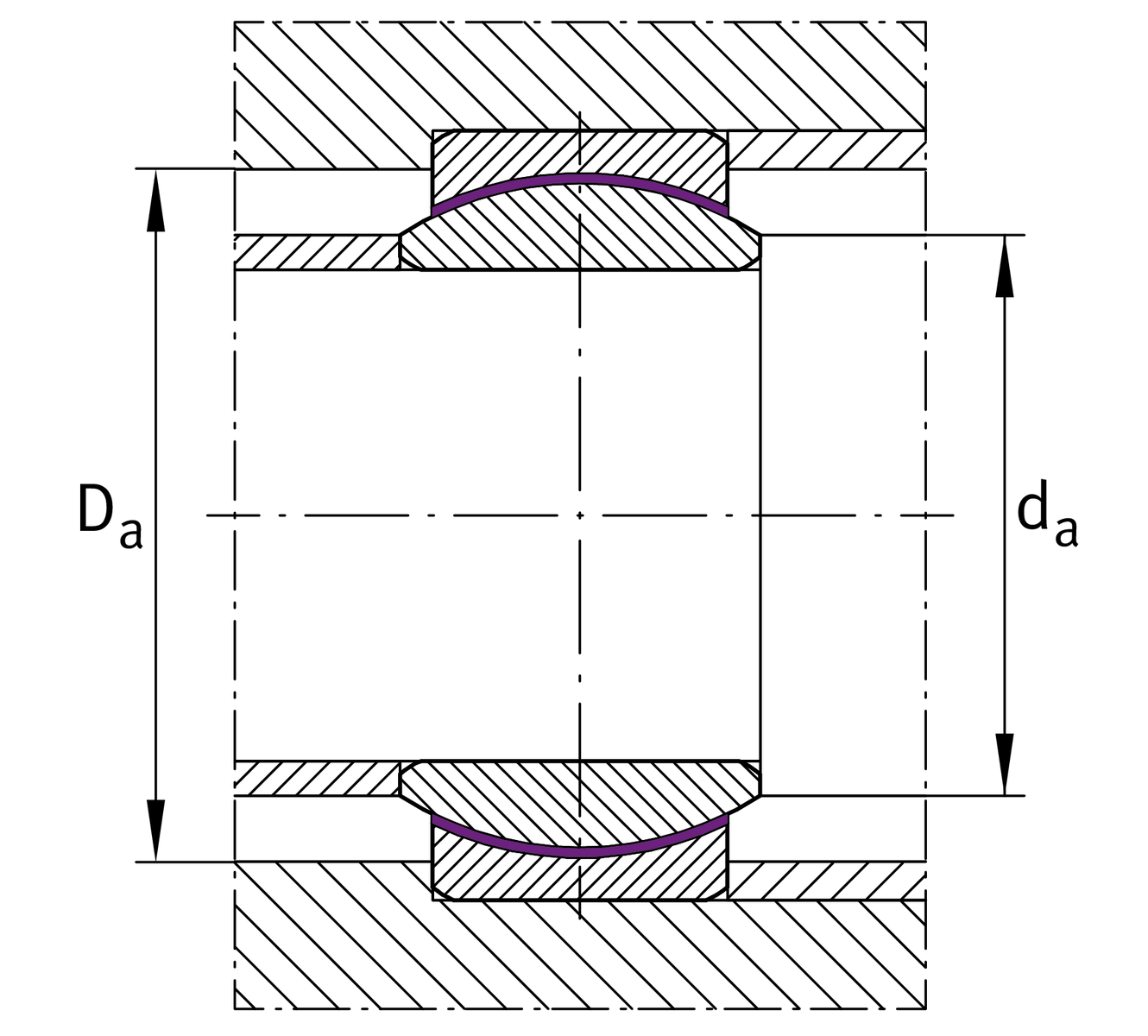

Mounting dimensions
| r1smin | 0.3 mm | Edge Spacing |
| r2smin | 0.3 mm | Edge Spacing |
| Da min | 17.5 mm | Housing Connection Diameter |
| damax | 14.9 mm | Connection measurement, inner ring |
Dimensions
| dK | 18 mm | Ball diameter |
| α | 11 ° | Tilt angle |
| DOT | 0 mm | Outside diameter, upper tolerance |
| DUT | -0.009 mm | Outside diameter, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| dUT | -0.008 mm | Bore diameter bearing, lower tolerance |
| BUT | -0.12 mm | Width inner ring, lower tolerance |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| COT | 0 mm | Width outer ring, upper tolerance |
| CUT | -0.24 mm | Width outer ring, lower tolerance |
| Gr | 0 - 0,032 | Radial Clearance |
| Grmax | 0.032 mm | Radial clearance, maximum |
| Grmin | 0 mm | Radial clearance, minimum |
Temperature range
| Tmin | -50 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Your current product variant
| Sealing | Without | |
| Bore lining | Without | |
| Coating | Without | |
| Material | Steel | Steel |
| Fabric | PTFE-composite | PTFE-composite |
