RMEY90-XL
Flanged housing unit RMEY90-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
90 mm
Bore diameter
H
265 mm
Height flange
U
60.3 mm
Total height unit
Cr
109,000 N
Basic dynamic load rating, radial
C0r
79,000 N
Basic static load rating, radial
Cur
2,700 N
Fatigue load limit, radial
≈m
8.79 kg
Weight

Mounting dimensions
J
220 mm
Pitch circle diameter (holes)
N
23 mm
Fixing bore
Z
190 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

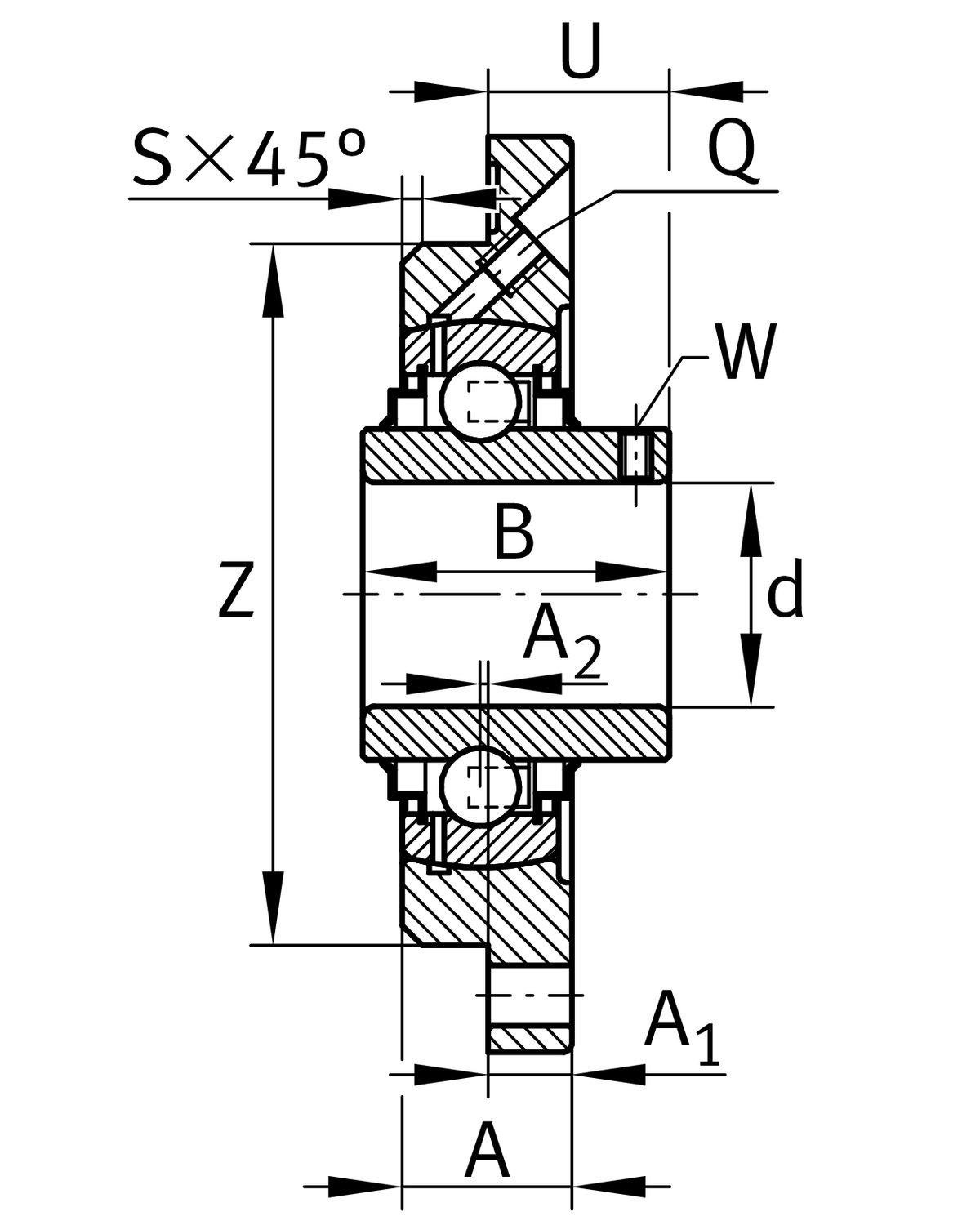

Dimensions
A
32 mm
Height housing
A1
20 mm
Thickness of flange
A2
-4 mm
Distance raceway
B
96 mm
Width
S
3 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
ME18
Housing
GYE90-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
