RMEY80-XL
Flanged housing unit RMEY80-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
80 mm
Bore diameter
H
220 mm
Height flange
U
51.3 mm
Total height unit
Cr
76,000 N
Basic dynamic load rating, radial
C0r
54,000 N
Basic static load rating, radial
Cur
2,190 N
Fatigue load limit, radial
≈m
5.249 kg
Weight

Mounting dimensions
J
184 mm
Pitch circle diameter (holes)
N
18 mm
Fixing bore
Z
160 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

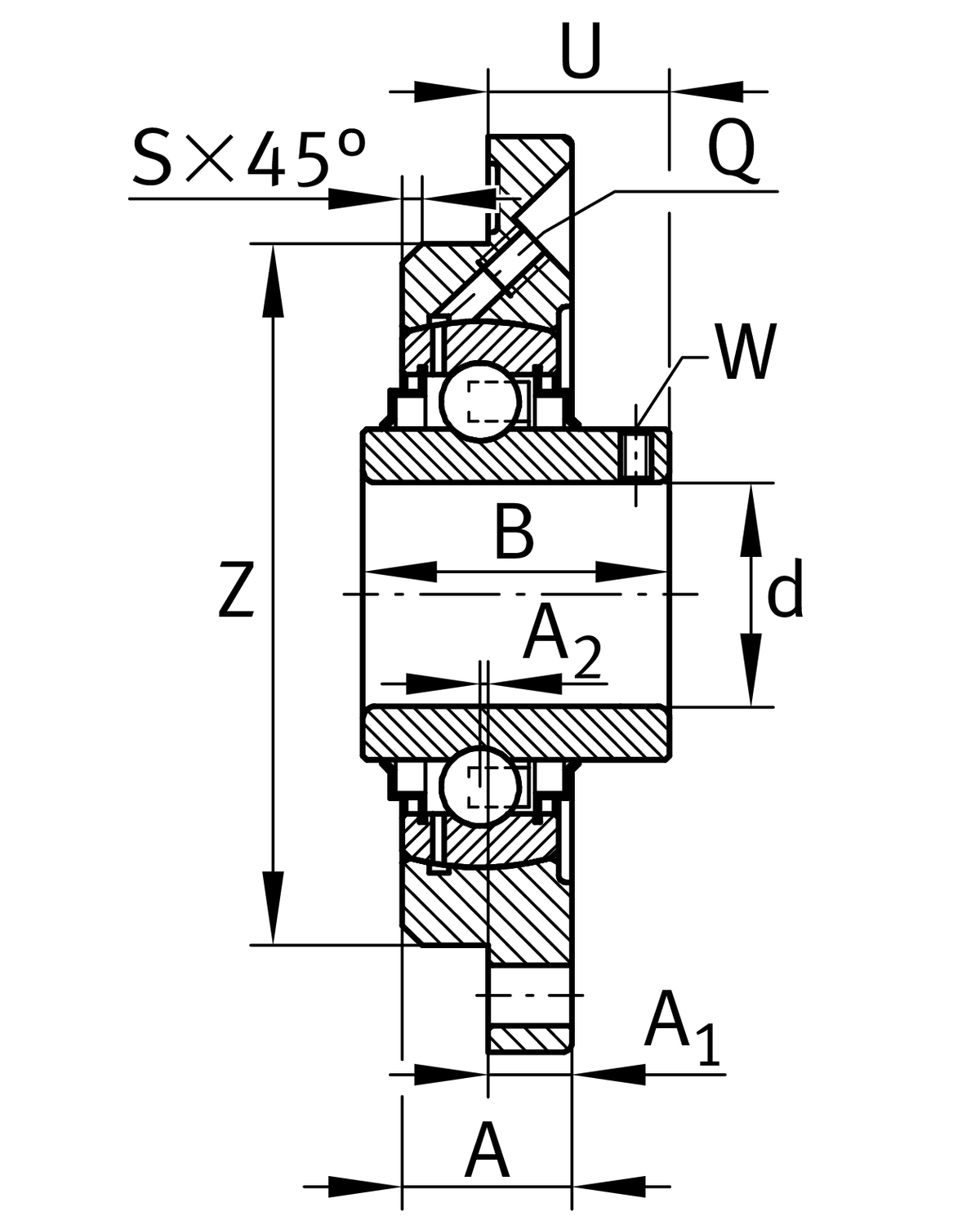

Dimensions
A
31 mm
Height housing
A1
18 mm
Thickness of flange
A2
-2 mm
Distance raceway
B
82.6 mm
Width
S
6 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
ME16
Housing
GYE80-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
