RMEY75-XL
Flanged housing unit RMEY75-XL
Thêm vào yêu cầu báo giá

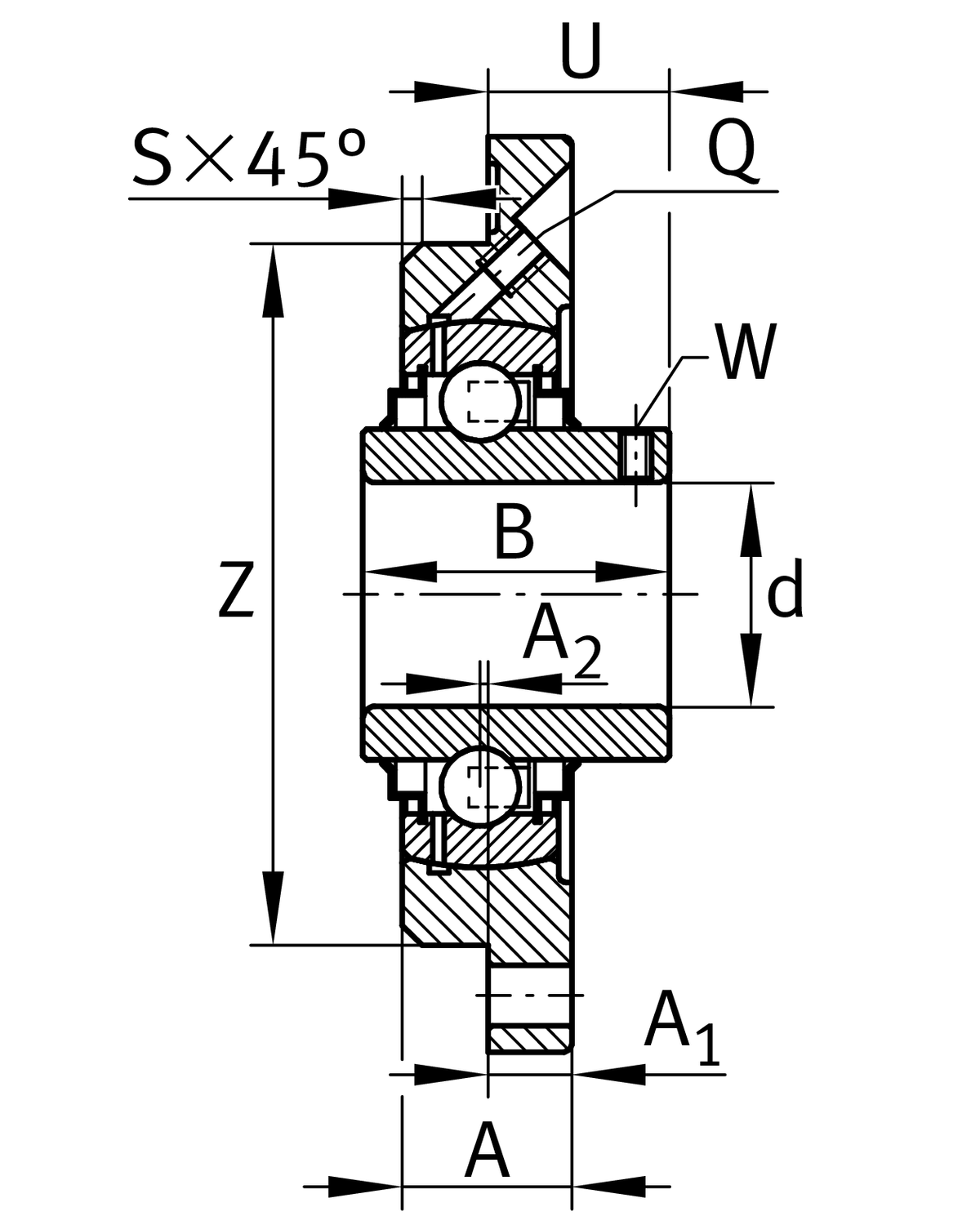

Main Dimensions & Performance Data
d
75 mm
Bore diameter
H
220 mm
Height flange
U
44.5 mm
Total height unit
Cr
62,000 N
Basic dynamic load rating, radial
C0r
44,500 N
Basic static load rating, radial
Cur
1,880 N
Fatigue load limit, radial
≈m
5.26 kg
Weight

Mounting dimensions
J
184 mm
Pitch circle diameter (holes)
N
18 mm
Fixing bore
Z
160 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

Dimensions
A
32 mm
Height housing
A1
18 mm
Thickness of flange
B
77.8 mm
Width
S
6 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
GG.ME15
Housing
GYE75-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
