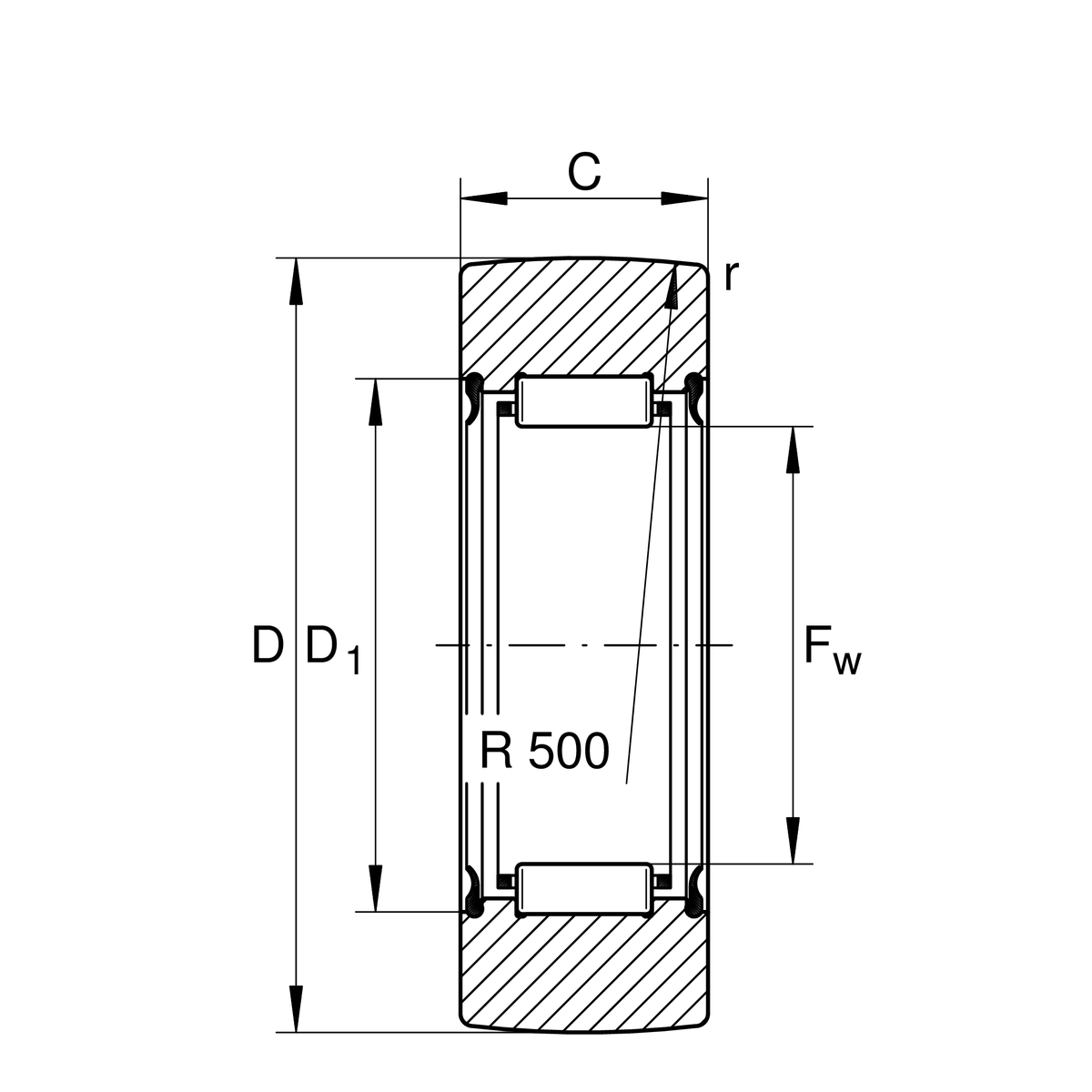

Main Dimensions & Performance Data
| D | 19 mm | Outside diameter |
| Fw | 10 mm | Under roller diameter |
| C | 11.8 mm | Width, outer ring |
| Cr w | 3,350 N | Basic dynamic load rating, radial |
| C0r w | 3,650 N | Basic static load rating, radial |
| Cur w | 495 N | Fatigue load limit, radial |
| nD G | 9,000 1/min | Speed on permanent grease lubrication |
| ≈m | 13.905 g | Weight |
Dimensions
| D1 min | 15.15 mm | Minimum mounting dimension |
| rmin | 0.3 mm | Minimum chamfer dimension |
| R | 500 mm | Radius of outer ring outside profile |
Your current product variant
| Sealing | 2RSR | Lip seal on both sides |
| Outer Ring profile | R500 | R500 |
