RTUEO80-XL
Take-up housing unit RTUEO80-XL
Thêm vào yêu cầu báo giá

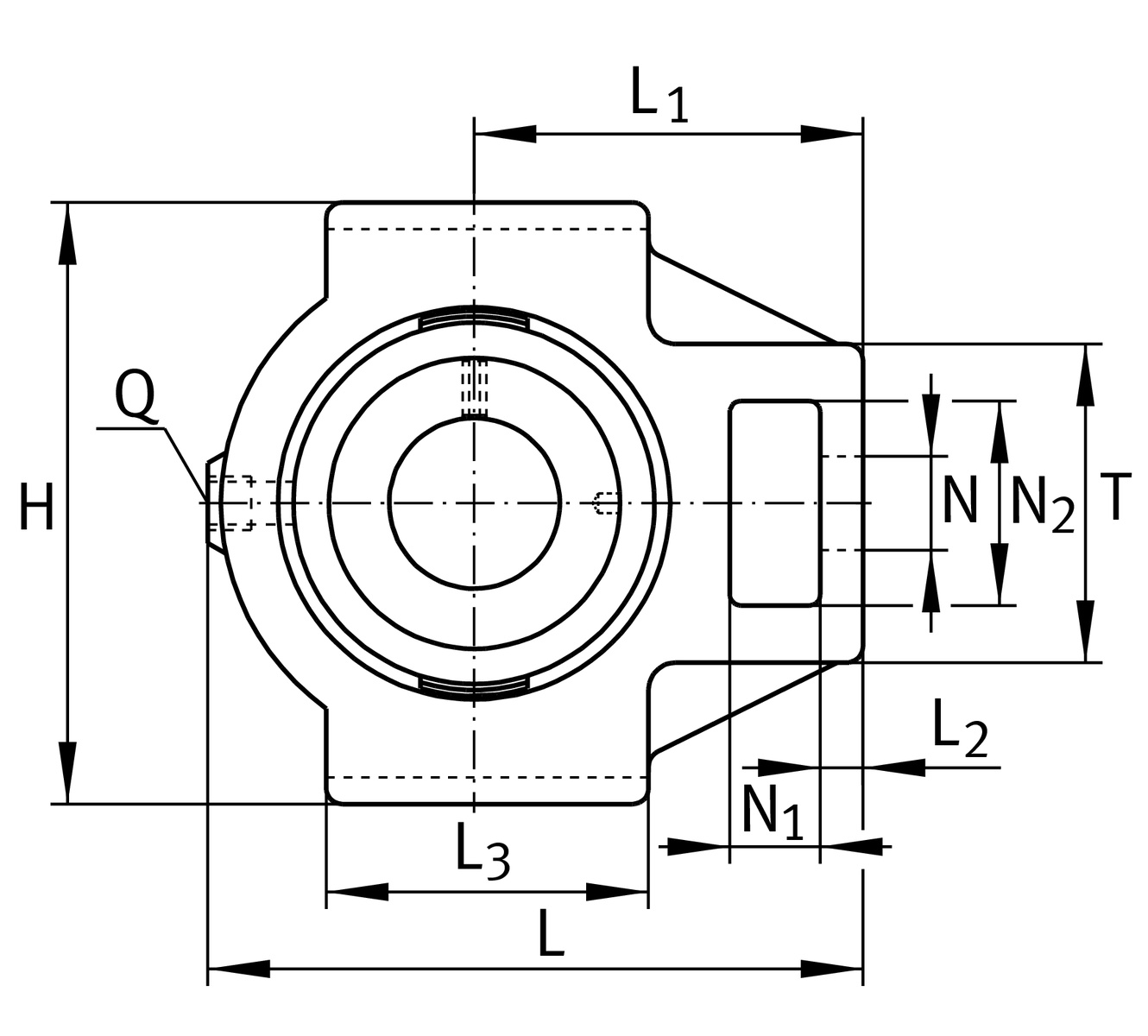

Main Dimensions & Performance Data
d
80 mm
Bore diameter
H
230 mm
Height
L
282 mm
Length total
B1
93.6 mm
Locking collar total width
≈m
16.17 kg
Weight

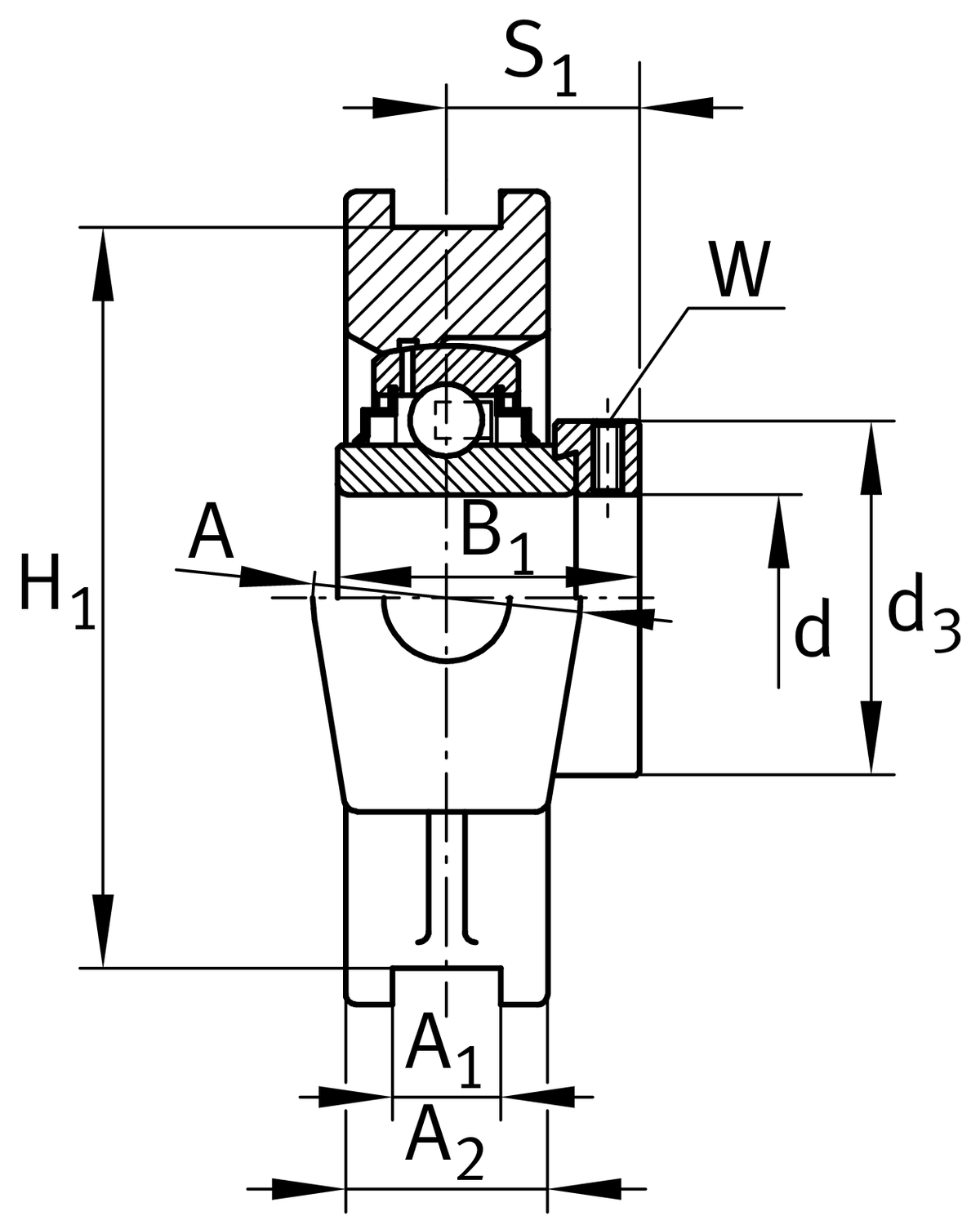

Mounting dimensions
A1
30 mm
Width guidance groove
H13
Width guidance groove clearance
H1
204 mm
Distance guidance grooves
0 mm
Upper distance guidance groove tolerance
-0.6 mm
Lower distance guidance groove tolerance
N
53 mm
Fixing bore

Dimensions
L1
174 mm
Distance shaft axis
L2
28 mm
Length fixed link
L3
150 mm
Length guidance groove
A
102 mm
Width housing fixing side
N1
42 mm
Width recess
N2
98 mm
Height recess
S1
59.6 mm
Distance of raceway to locking collar
T
150 mm
Height housing fixing side
Q
M6
Connection thread for lubrication
A2
60 mm
Width housing

Additional information
TUEO16
Housing
GNE80-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
