RTUEO90-XL
Take-up housing unit RTUEO90-XL
Thêm vào yêu cầu báo giá

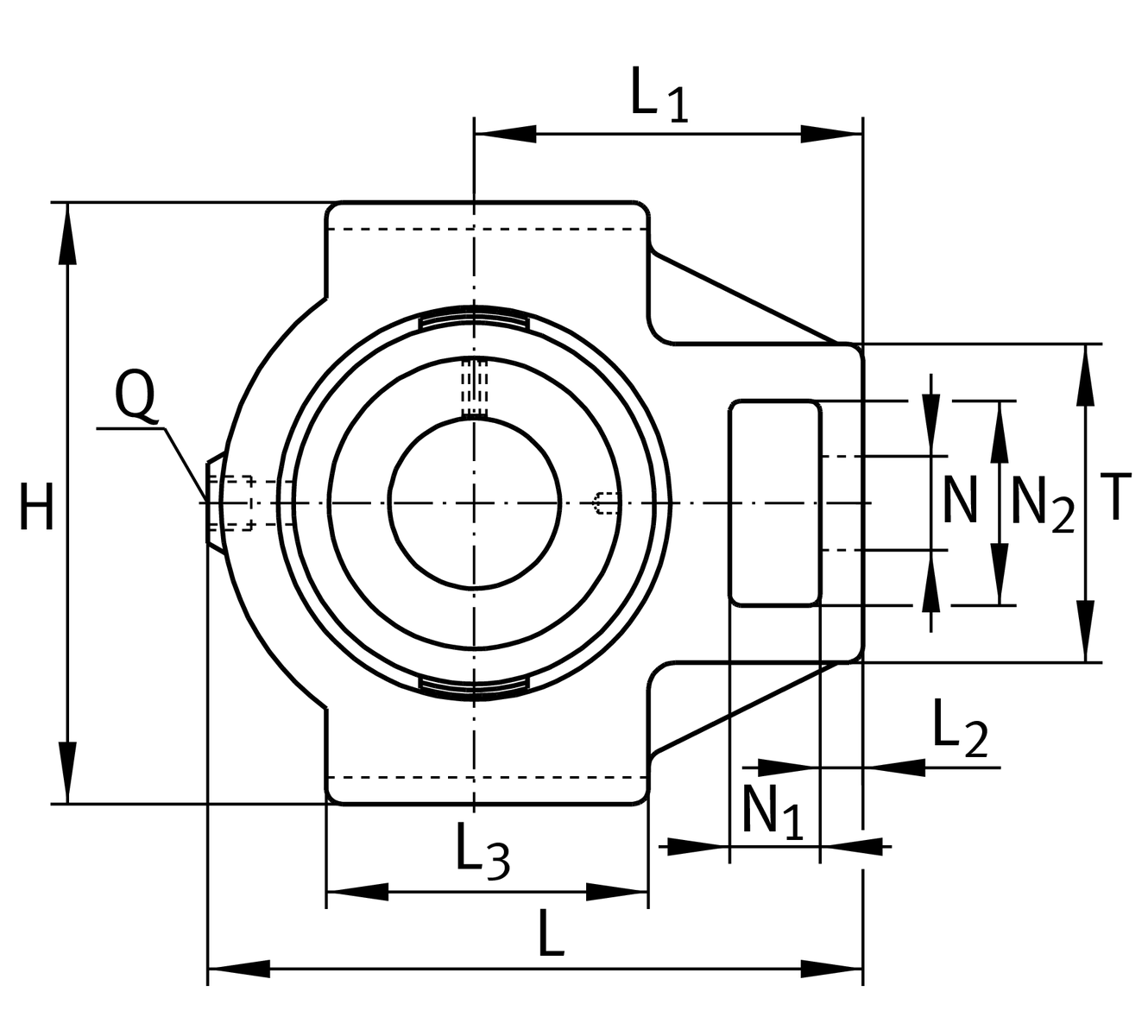

Main Dimensions & Performance Data
d
90 mm
Bore diameter
H
255 mm
Height
L
312 mm
Length total
B1
101 mm
Locking collar total width
≈m
22.26 kg
Weight

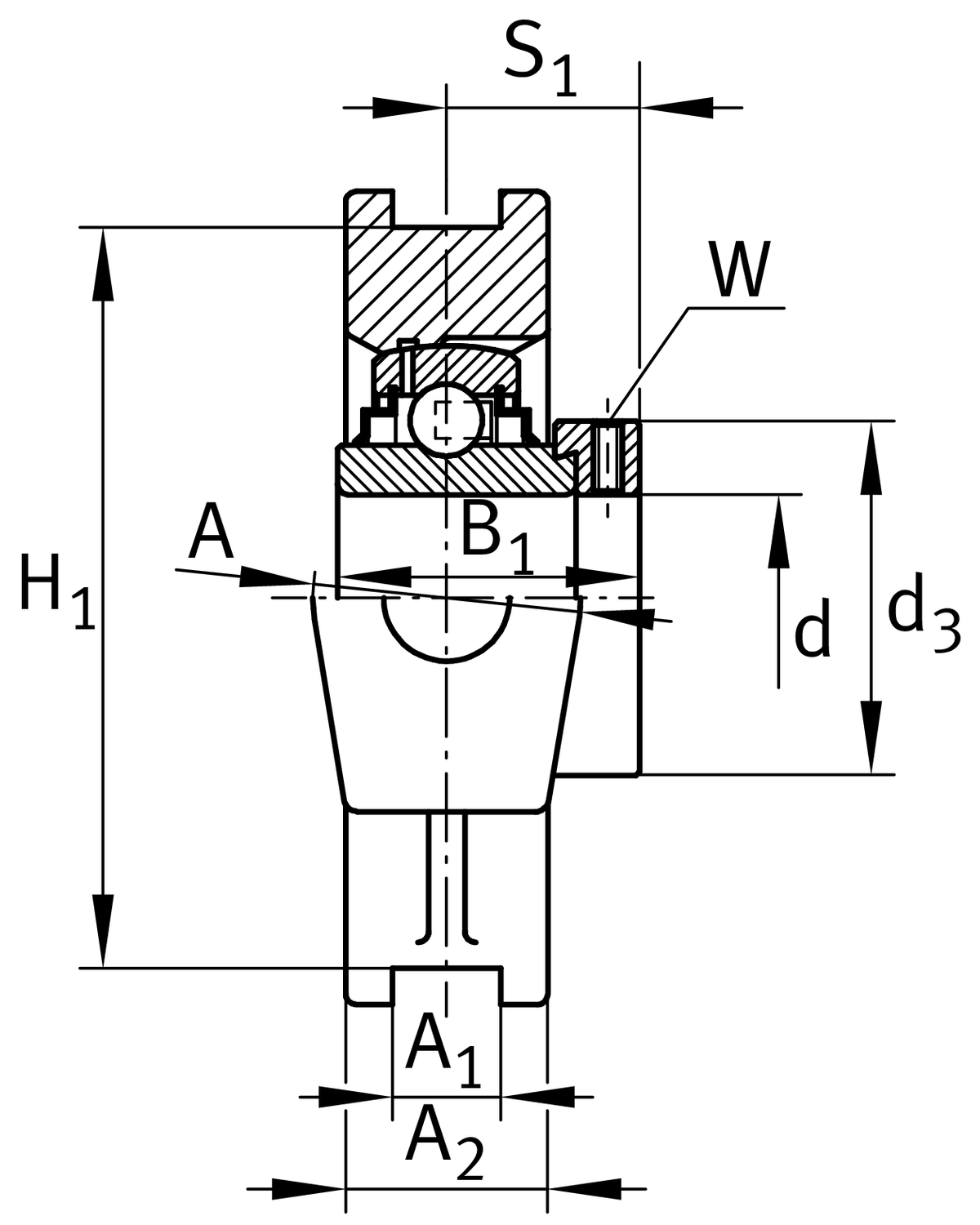

Mounting dimensions
A1
32 mm
Width guidance groove
H13
Width guidance groove clearance
H1
228 mm
Distance guidance grooves
0 mm
Upper distance guidance groove tolerance
-0.6 mm
Lower distance guidance groove tolerance
N
57 mm
Fixing bore

Dimensions
L1
192 mm
Distance shaft axis
L2
30 mm
Length fixed link
L3
165 mm
Length guidance groove
A
110 mm
Width housing fixing side
N1
46 mm
Width recess
N2
106 mm
Height recess
S1
65.5 mm
Distance of raceway to locking collar
T
160 mm
Height housing fixing side
Q
M6
Connection thread for lubrication
A2
66 mm
Width housing

Additional information
TUEO18
Housing
GNE90-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
