RTUE90-XL
Take-up housing unit RTUE90-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
90 mm
Bore diameter
H
215 mm
Height
L
275 mm
Length total
B1
69.5 mm
Locking collar total width
≈m
11.81 kg
Weight

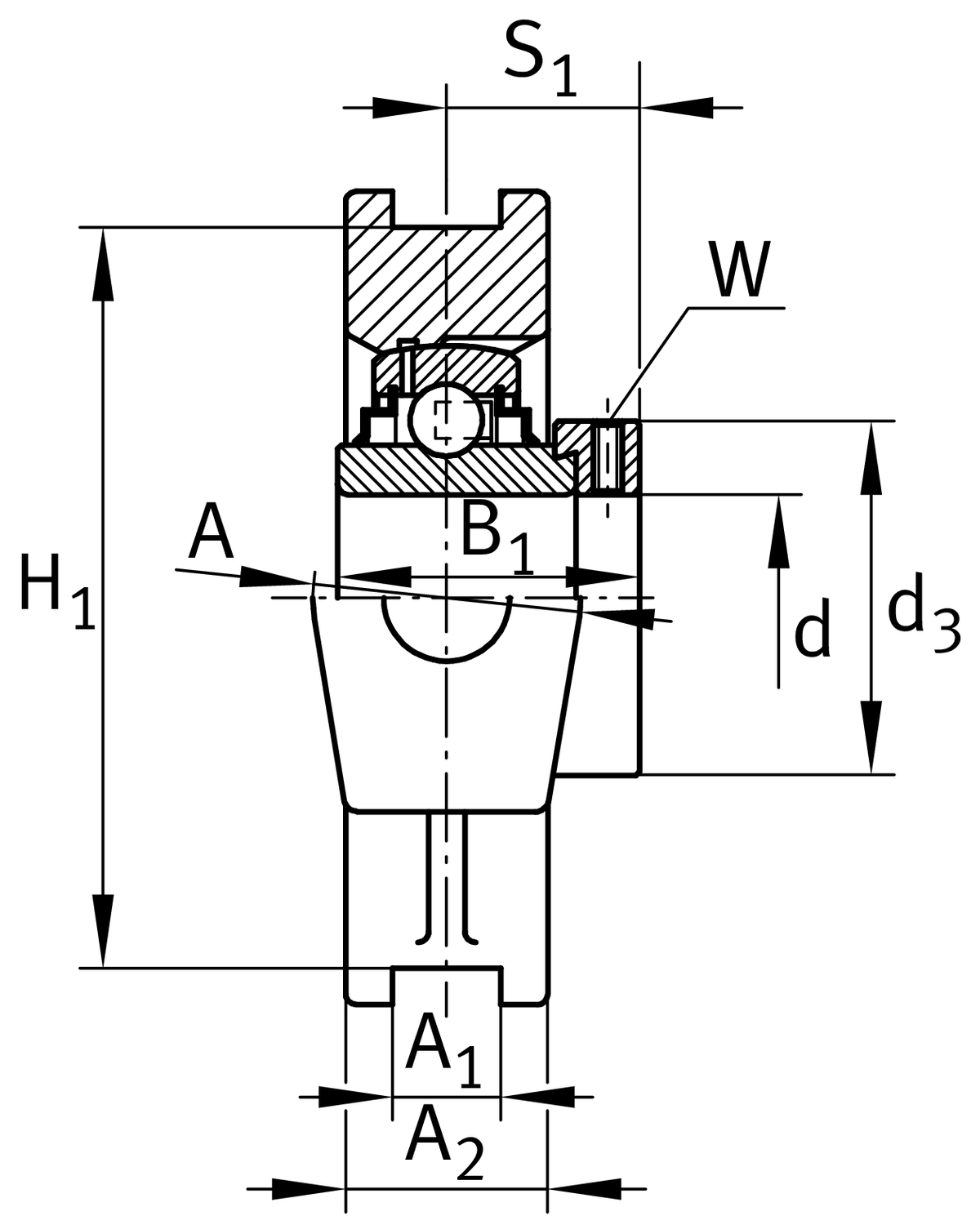

Mounting dimensions
A1
28 mm
Width guidance groove
H13
Width guidance groove clearance
H1
190 mm
Distance guidance grooves
0.25 mm
Upper distance guidance groove tolerance
-0.25 mm
Lower distance guidance groove tolerance
N
47 mm
Fixing bore

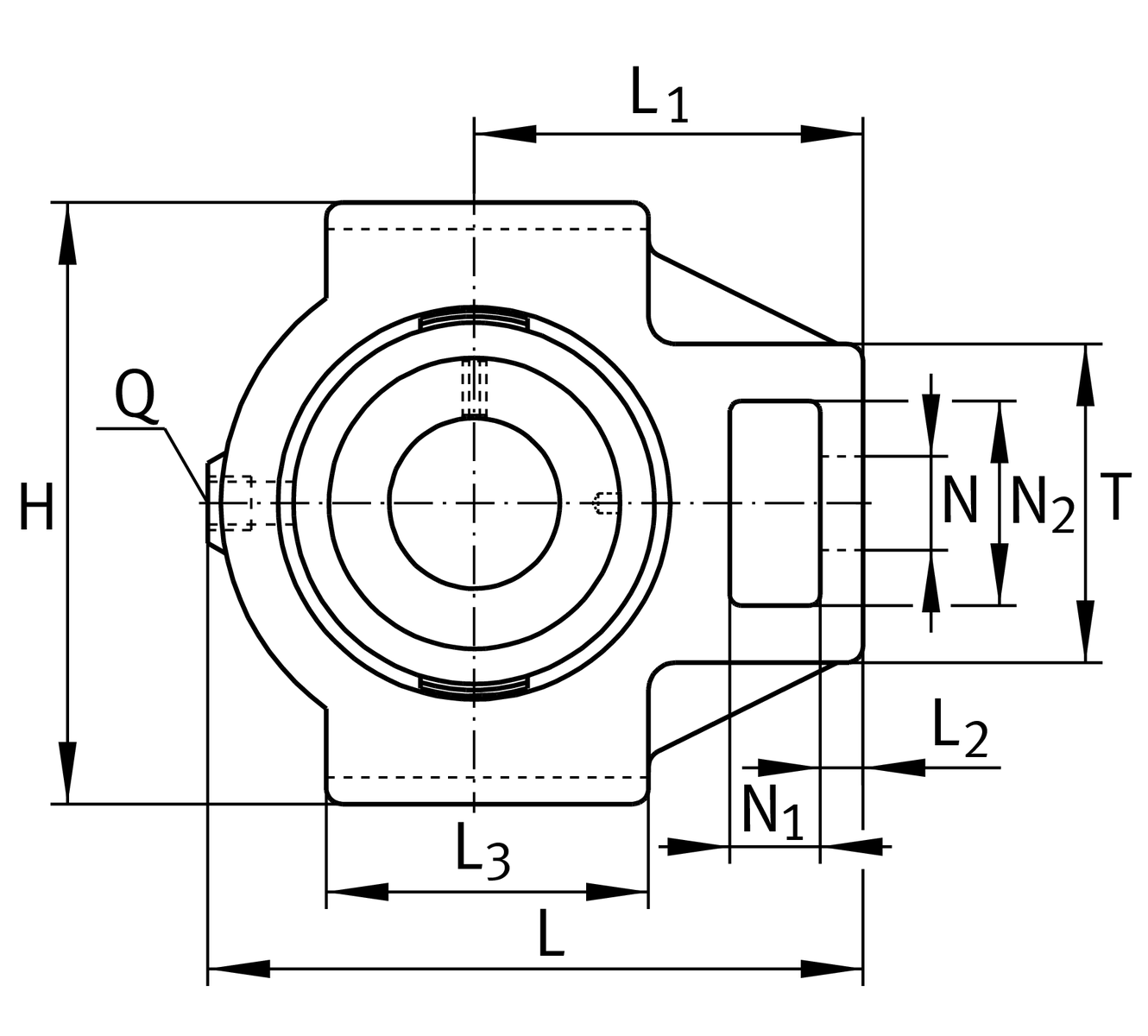

Dimensions
L1
170 mm
Distance shaft axis
L2
30 mm
Length fixed link
L3
140 mm
Length guidance groove
A
80 mm
Width housing fixing side
N1
40 mm
Width recess
N2
80 mm
Height recess
S1
46.5 mm
Distance of raceway to locking collar
T
130 mm
Height housing fixing side
Q
M6
Connection thread for lubrication
A2
55 mm
Width housing

Additional information
TUE18
Housing
GE90-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
