GVKE30-211-KTT-B-AS2/V
Self-aligning deep groove ball bearings GVKE30-211-KTT-B-AS2/V
Thêm vào yêu cầu báo giá

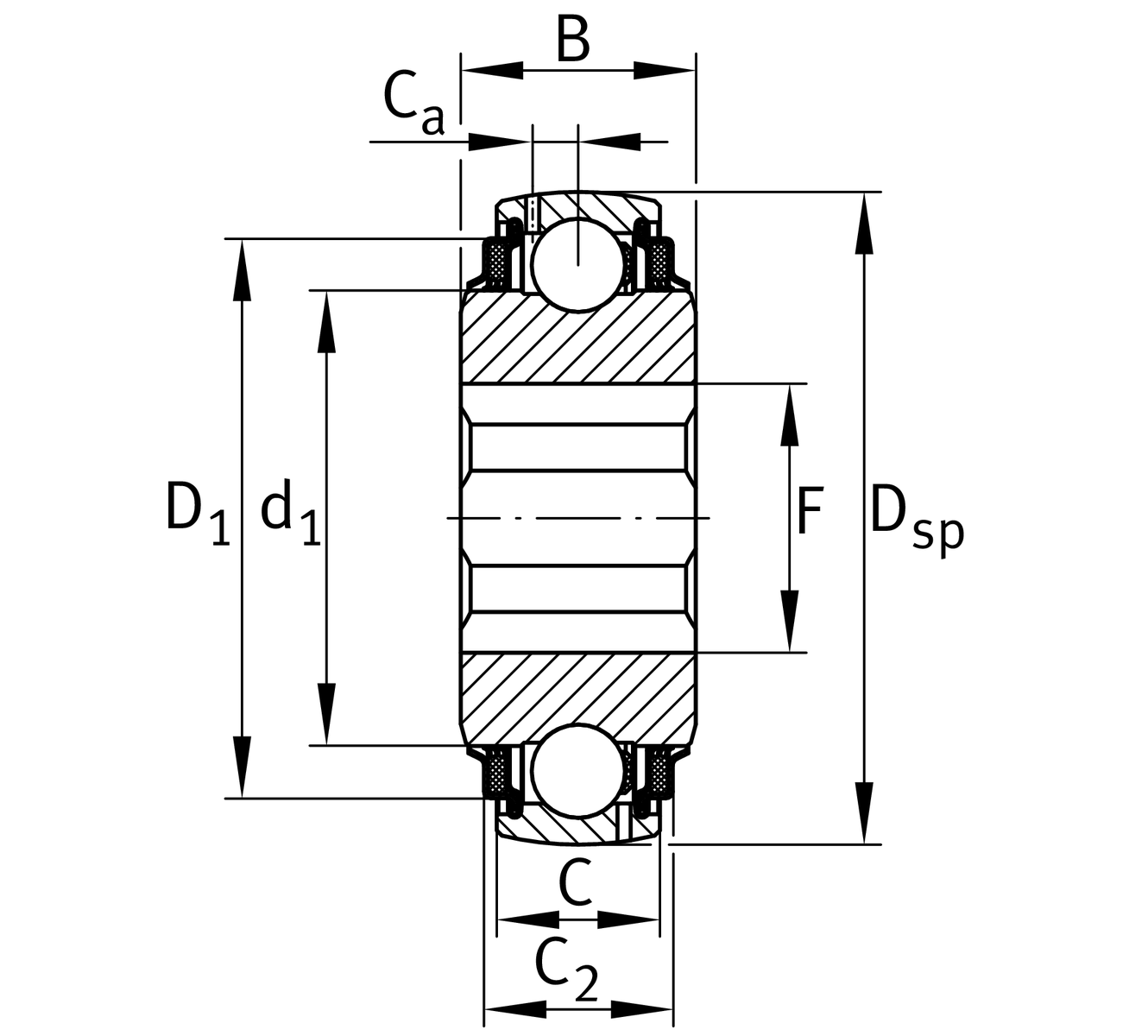

Main Dimensions & Performance Data
DSP
100 mm
Outside diameter
B
36 mm
Width
Cr
43,500 N
Basic dynamic load rating, radial
C0r
29,000 N
Basic static load rating, radial
≈m
1.234 kg
Weight

Dimensions
D1
85.3 mm
Outside diameter seal
C
25 mm
Width, outer ring
F
40.3 mm

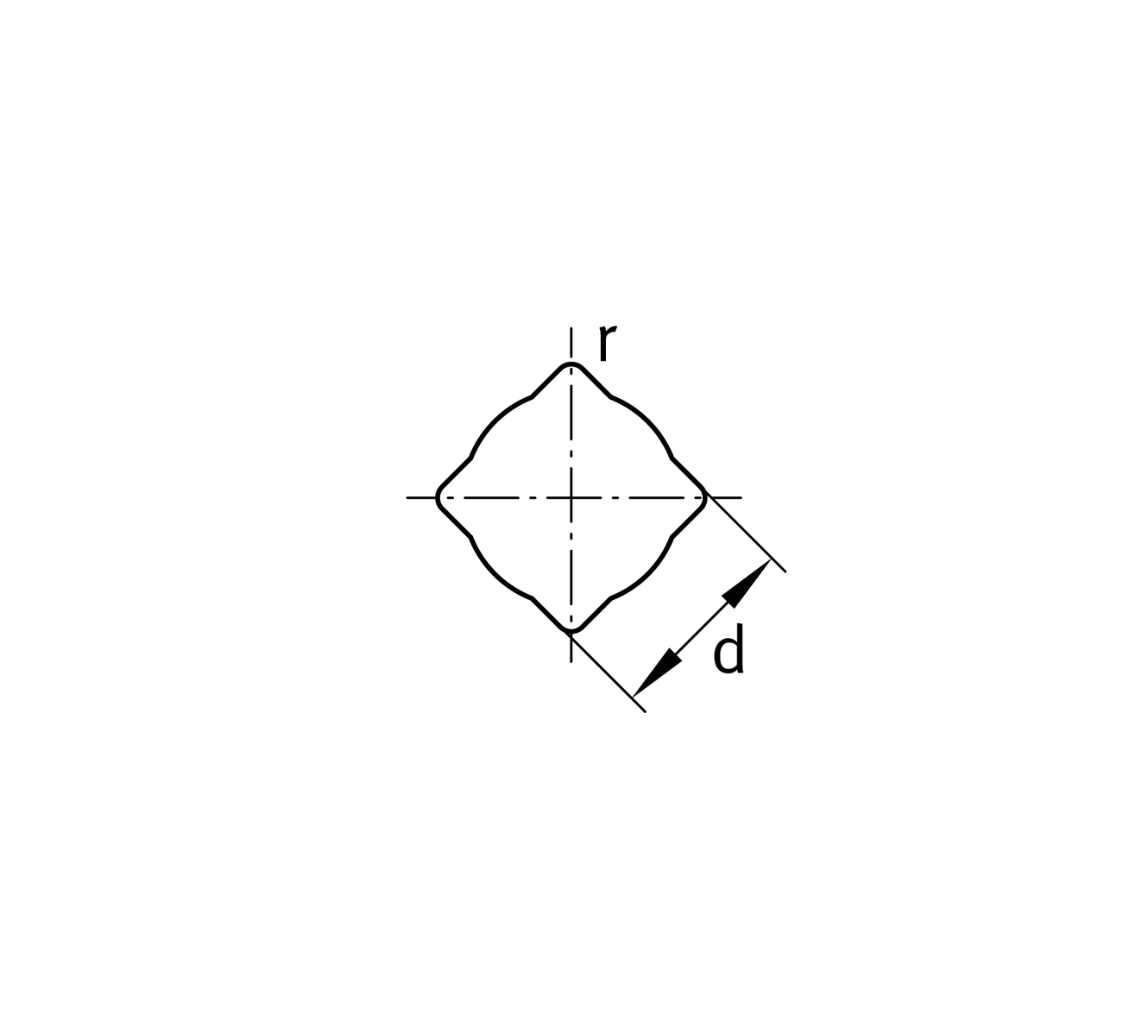

Maximum distance hexagonal bore
r
2.5 mm
Radius hexagonal bore
C2
27.4 mm
Sealing total width
d1
69.7 mm
Rib diameter inner ring
d
30 mm
Width of flats
Ca
7.1 mm
Distance to lubrication hole
0.9 mm
Width across flats upper tolerance
0.6 mm
Width across flats lower tolerance

Calculation factors
f0
14.2
Calculation factor

Your current product variant
SealingKTTTriple lip seals on both sides
Shape of outer surfaceBSpherical
Deviating ballset211211
Deviating featureAS2/VAS2/V
