GW10
Shaft support block GW10
Thêm vào yêu cầu báo giá

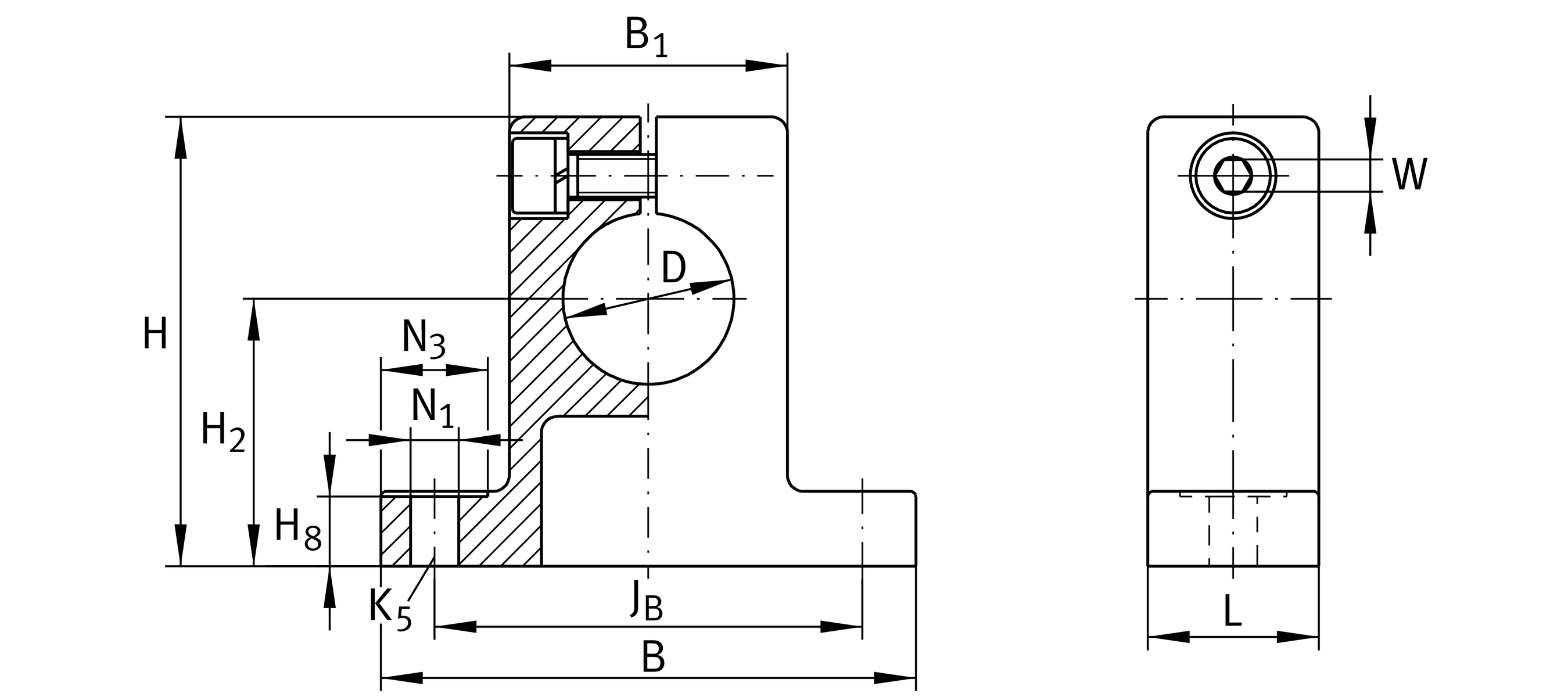

Main Dimensions & Performance Data
D
10 mm
Diameter
B
37 mm
Width
L
11 mm
Length
H
30 mm
Height
≈m
30 g
Weight

Mounting dimensions
JB
28 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
B1
18 mm
Mounting Dimension
H2
17 mm
Mounting Dimension
Tol H2
+0,15
Upper Tolerance
Tol H2
-0,15
Lower tolerance
H8
5 mm
Mounting Dimension
N1
3.4 mm
Mounting Dimension 1
N3
8 mm
Mounting Dimension
K5
M3
Size thread fixing screws above
W
2.5 mm
Width across Flat 2

Your current product variant
Size code10
