GVK109-211-KTT-B
Self-aligning deep groove ball bearings GVK109-211-KTT-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
DSP
100 mm
Outside diameter
B
36 mm
Width
Cr
43,500 N
Basic dynamic load rating, radial
C0r
29,000 N
Basic static load rating, radial
≈m
1.07 kg
Weight

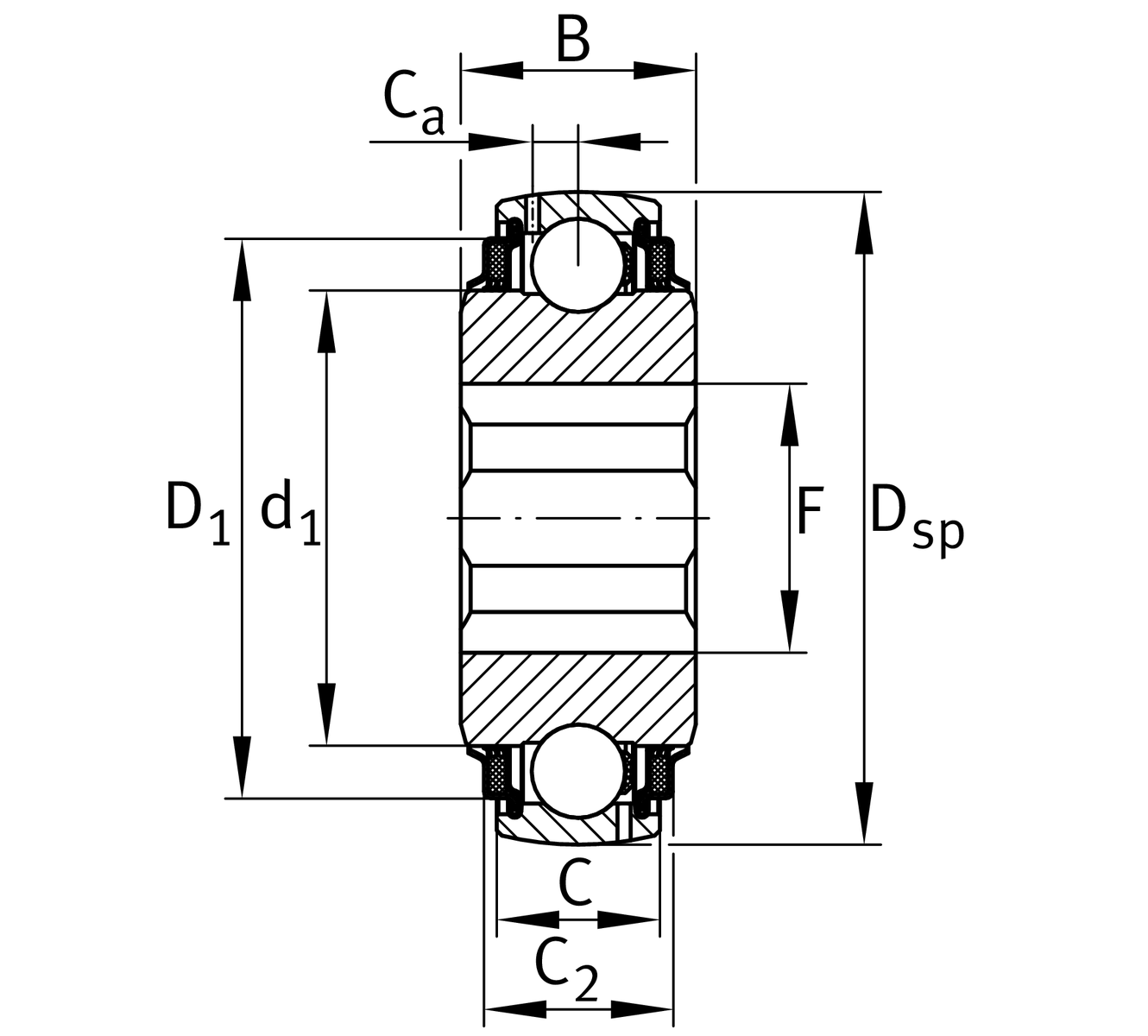

Dimensions
D1
85.8 mm
Outside diameter seal
C
25 mm
Width, outer ring
F
55.1 mm
Maximum distance hexagonal bore
r
2.5 mm
Radius hexagonal bore
C2
28.9 mm
Sealing total width
d1
69.8 mm
Rib diameter inner ring

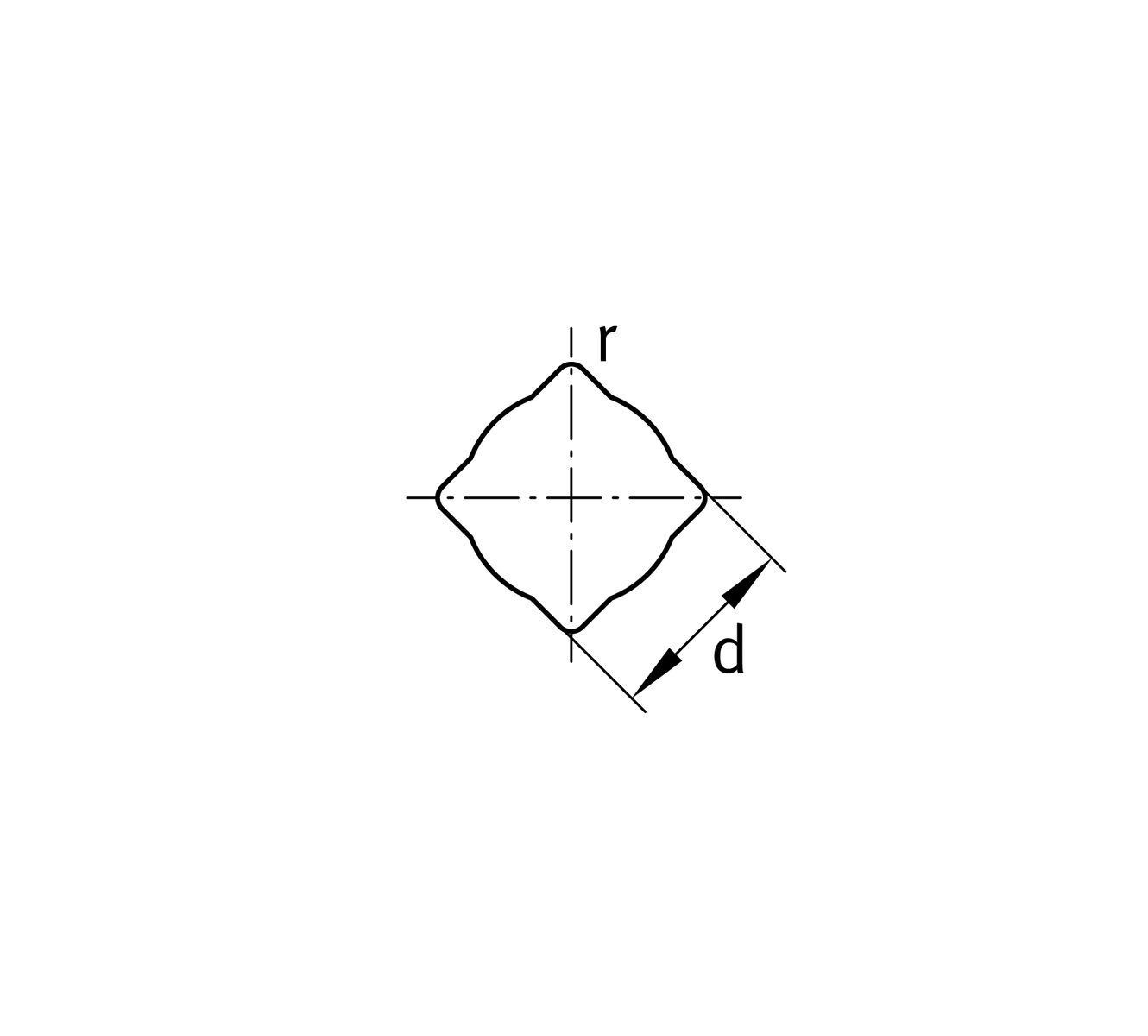

d
39.6875 mm
Width of flats
Ca
7 mm
Distance to lubrication hole
0.3 mm
Width across flats upper tolerance
d
39.688 mm
Width across flats (Inch)
0 mm
Width across flats lower tolerance

Calculation factors
f0
14.2
Calculation factor

Your current product variant
SealingKTTTriple lip seals on both sides
Shape of outer surfaceBSpherical
Deviating ballset211211
