RMEL40-N
Flanged housing unit RMEL40-N
Thêm vào yêu cầu báo giá

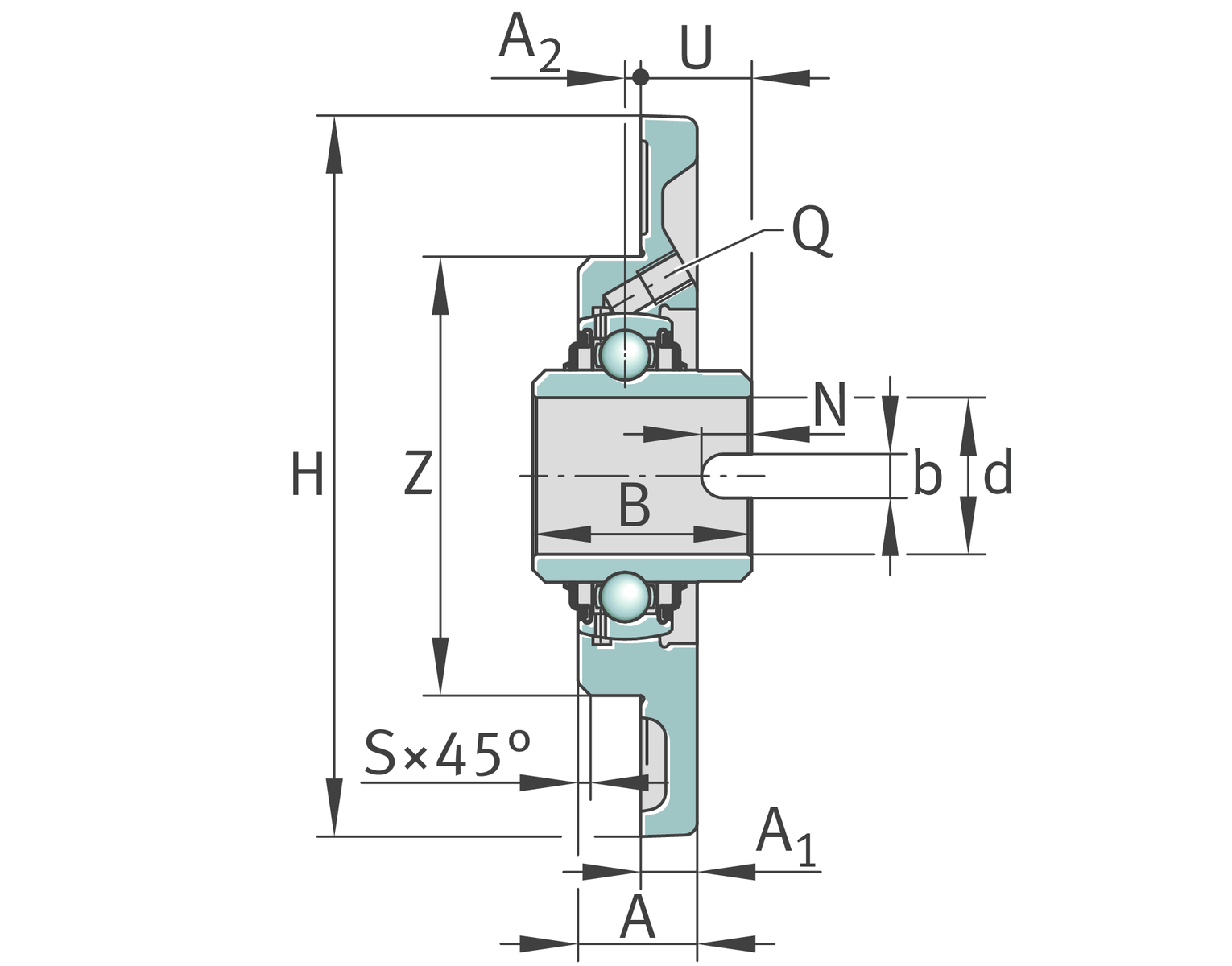

Main Dimensions & Performance Data
d
40 mm
Bore diameter
H
145 mm
Height flange
U
42.9 mm
Total height unit
Cr
34,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
Cur
910 N
Fatigue load limit, radial
≈m
1.58 kg
Weight

Mounting dimensions
J
120 mm
Pitch circle diameter (holes)
N
11.5 mm
Fixing bore
Z
100 mm
Diameter spigot
n
4
Number of screwing holes

Dimensions
A
23 mm
Height housing
A1
11.5 mm
Thickness of flange
A2
1 mm
Distance raceway
B
42.9 mm
Width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
ME08-N
Housing
GLE40-XL-KRR-B
Bearing designation

Temperature range
Tmin
-40 °C
Operating temperature min.
Tmax
180 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
