RMEL60-N
Flanged housing unit RMEL60-N
Thêm vào yêu cầu báo giá

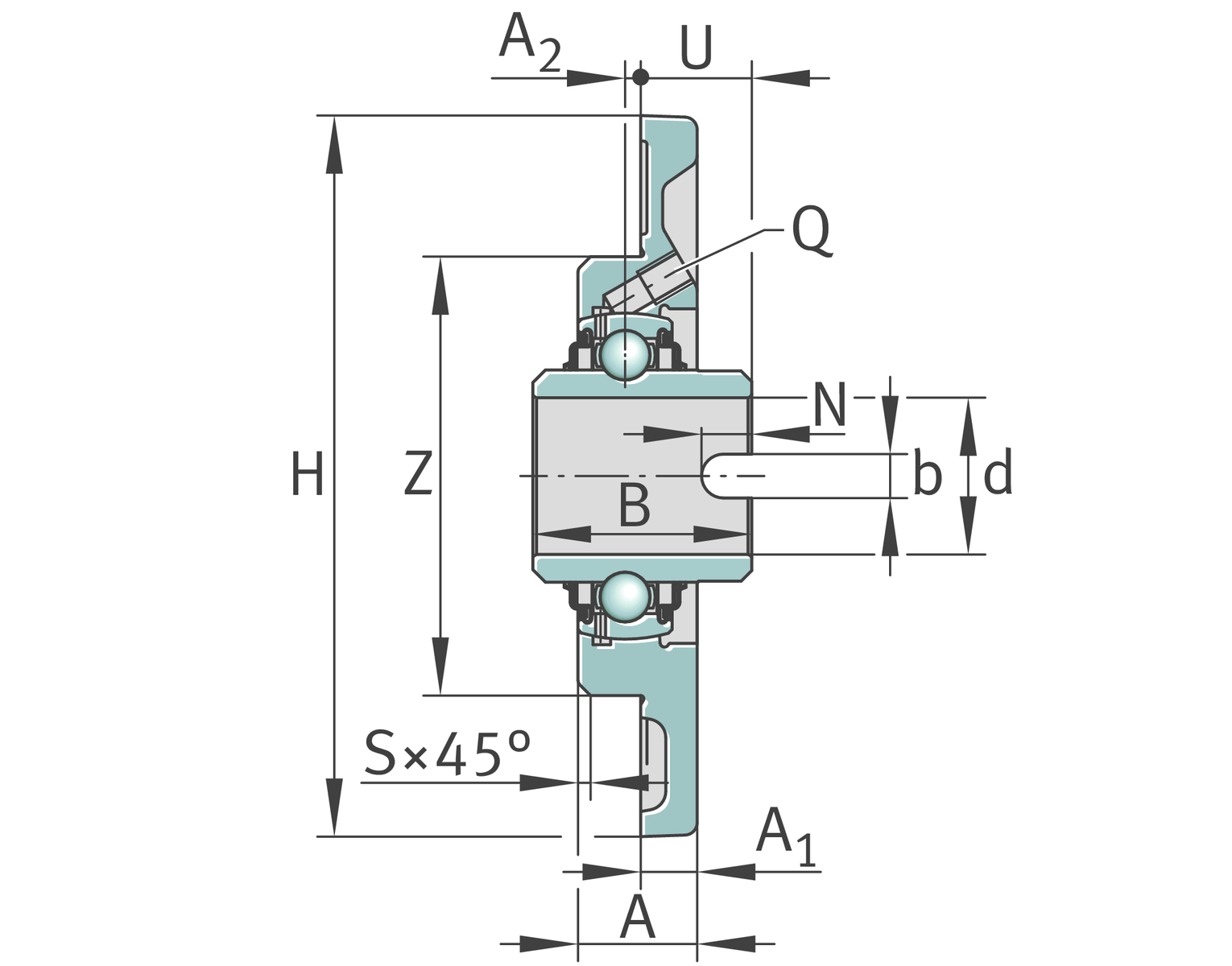

Main Dimensions & Performance Data
d
60 mm
Bore diameter
H
195 mm
Height flange
U
61.9 mm
Total height unit
Cr
56,000 N
Basic dynamic load rating, radial
C0r
36,000 N
Basic static load rating, radial
Cur
1,870 N
Fatigue load limit, radial
≈m
3.7 kg
Weight

Mounting dimensions
J
160 mm
Pitch circle diameter (holes)
N
18 mm
Fixing bore
Z
135 mm
Diameter spigot
n
4
Number of screwing holes

Dimensions
A
29 mm
Height housing
A1
16 mm
Thickness of flange
A2
1 mm
Distance raceway
B
61.9 mm
Width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
ME12-N
Housing
GLE60-XL-KRR-B
Bearing designation

Temperature range
Tmin
-40 °C
Operating temperature min.
Tmax
180 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
