Main Dimensions & Performance Data
| d | 65 mm | Rib diameter inner ring |
| Ew | 106.25 mm | |
| B | 60 mm | Width |
| Cr | 340,000 N | Basic dynamic load rating, radial |
| C0r | 420,000 N | Basic static load rating, radial |
| Cur | 79,000 N | Fatigue load limit, radial |
| nG | 3,650 1/min | Limiting speed |
| nϑr | 1,820 1/min | Reference speed |
| ≈m | 1.83 kg | Weight |

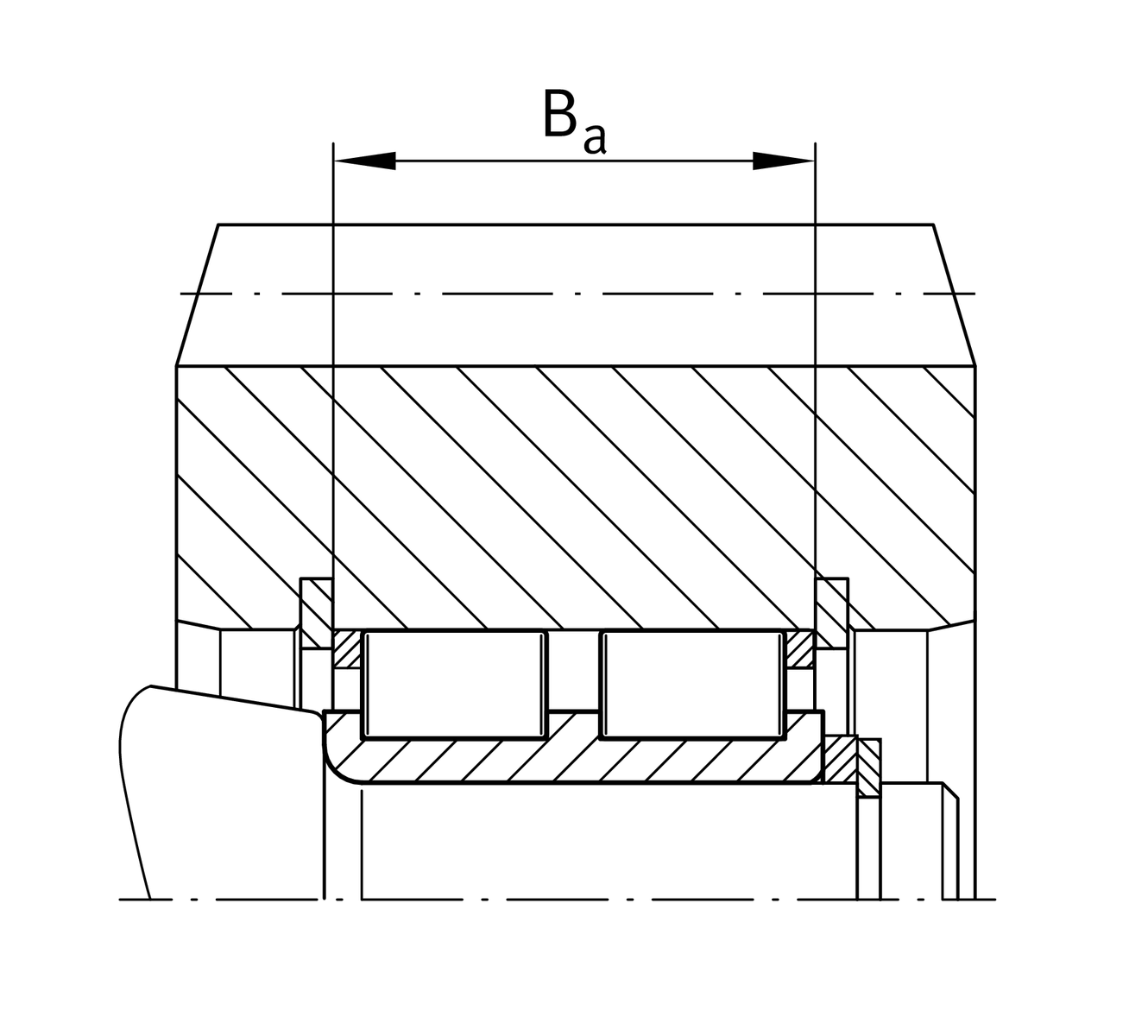

Mounting dimensions
| da min | 82 mm | Minimum diameter shaft shoulder |

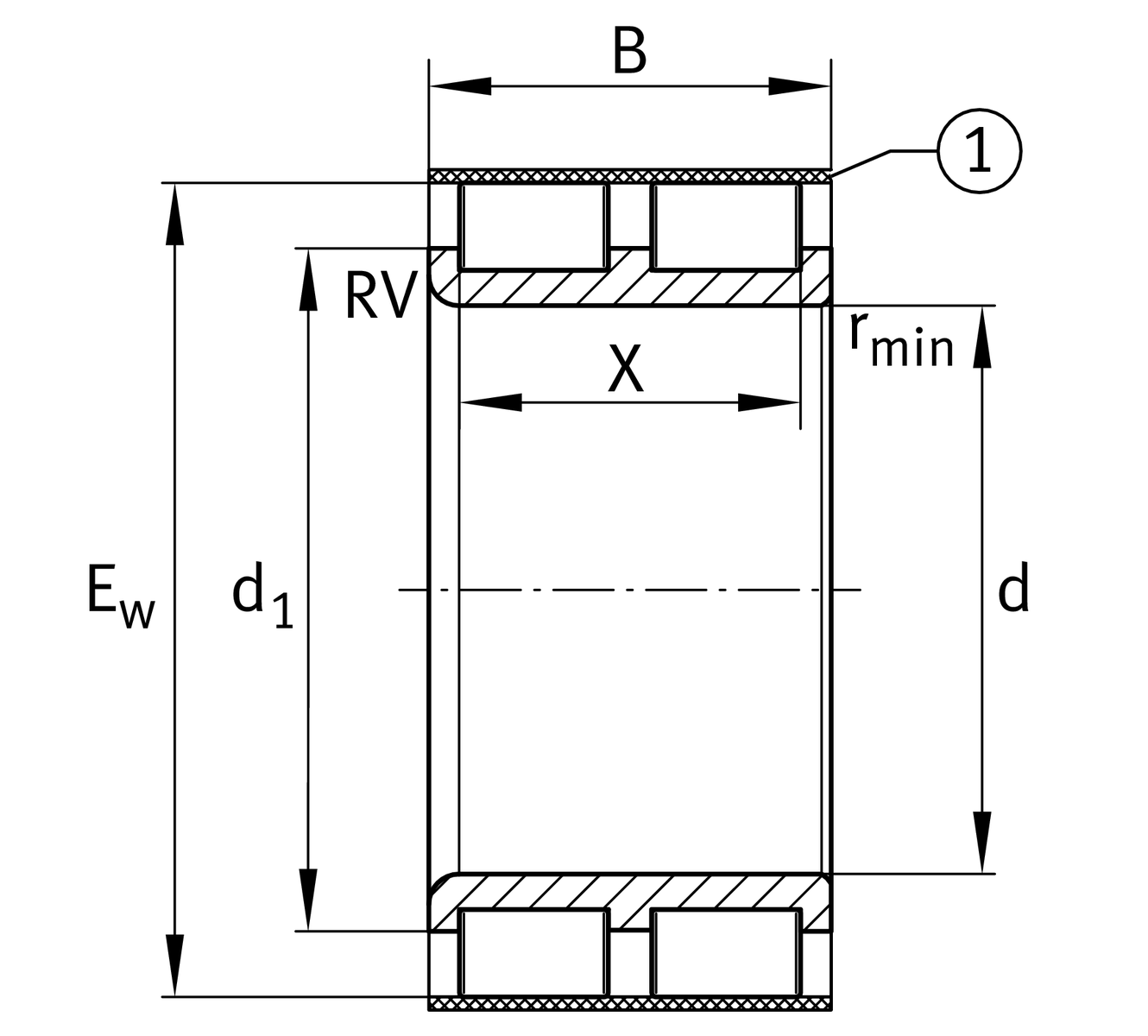

Dimensions
| rmin | 1.5 mm | Minimum chamfer dimension |
| X | 50.4 mm | raceway width |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Number of rolling element rows | 2 | Double-row design |
