Main Dimensions & Performance Data
| d | 60 mm | Rib diameter inner ring |
| Ew | 99.17 mm | |
| B | 55 mm | Width |
| Cr | 290,000 N | Basic dynamic load rating, radial |
| C0r | 350,000 N | Basic static load rating, radial |
| Cur | 66,000 N | Fatigue load limit, radial |
| nG | 3,900 1/min | Limiting speed |
| nϑr | 1,950 1/min | Reference speed |
| ≈m | 1.49 kg | Weight |
Mounting dimensions
| da min | 76.5 mm | Minimum diameter shaft shoulder |

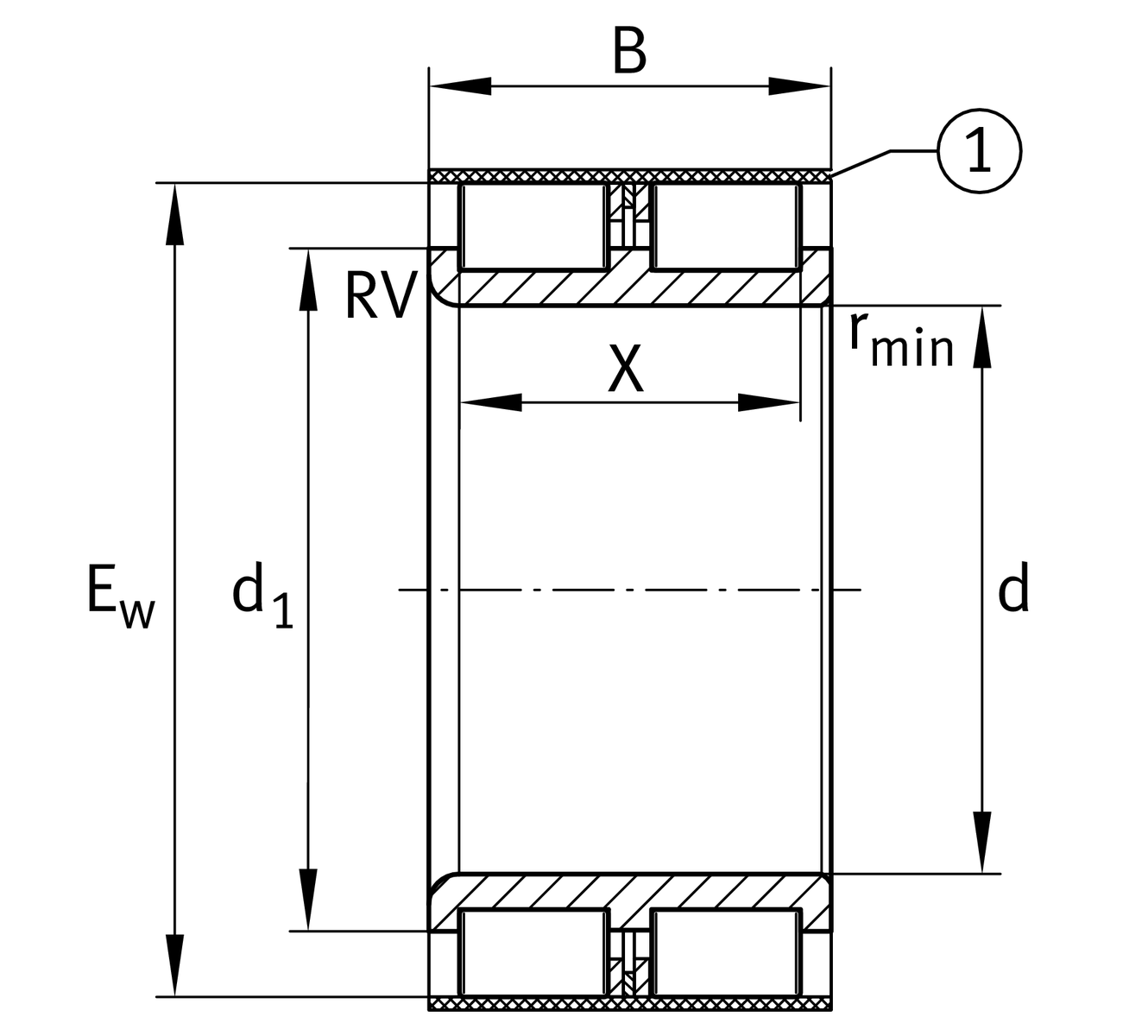

Dimensions
| rmin | 1.5 mm | Minimum chamfer dimension |
| X | 47 mm | raceway width |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Number of rolling element rows | 2 | Double-row design |
