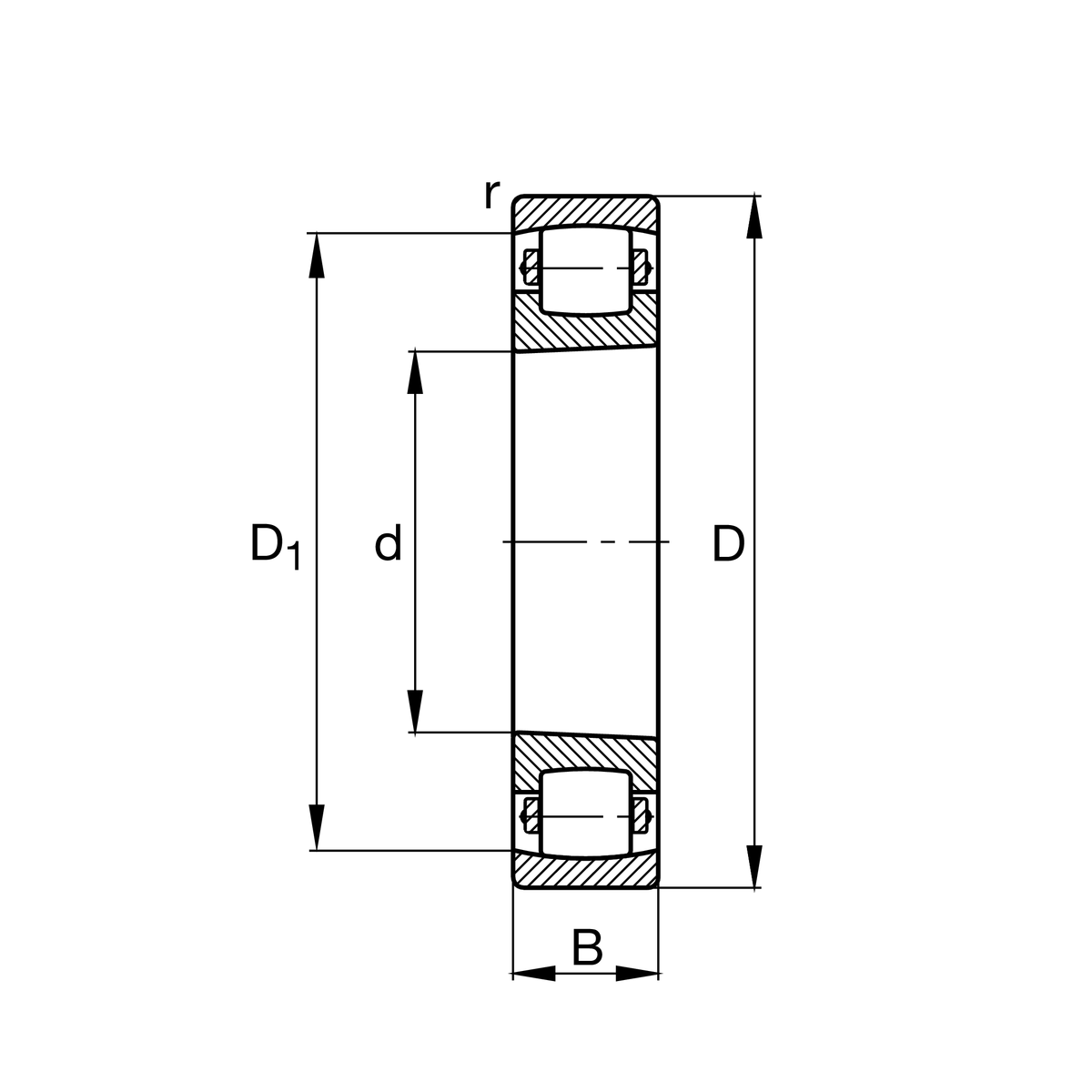

Main Dimensions & Performance Data
| d | 60 mm | Bore diameter |
| D | 110 mm | Outside diameter |
| B | 22 mm | Width |
| Cr | 85,000 N | Basic dynamic load rating, radial |
| C0r | 100,000 N | Basic static load rating, radial |
| Cur | 11,000 N | Fatigue load limit, radial |
| nG | 6,600 1/min | Limiting speed |
| ≈m | 0.796 kg | Weight |

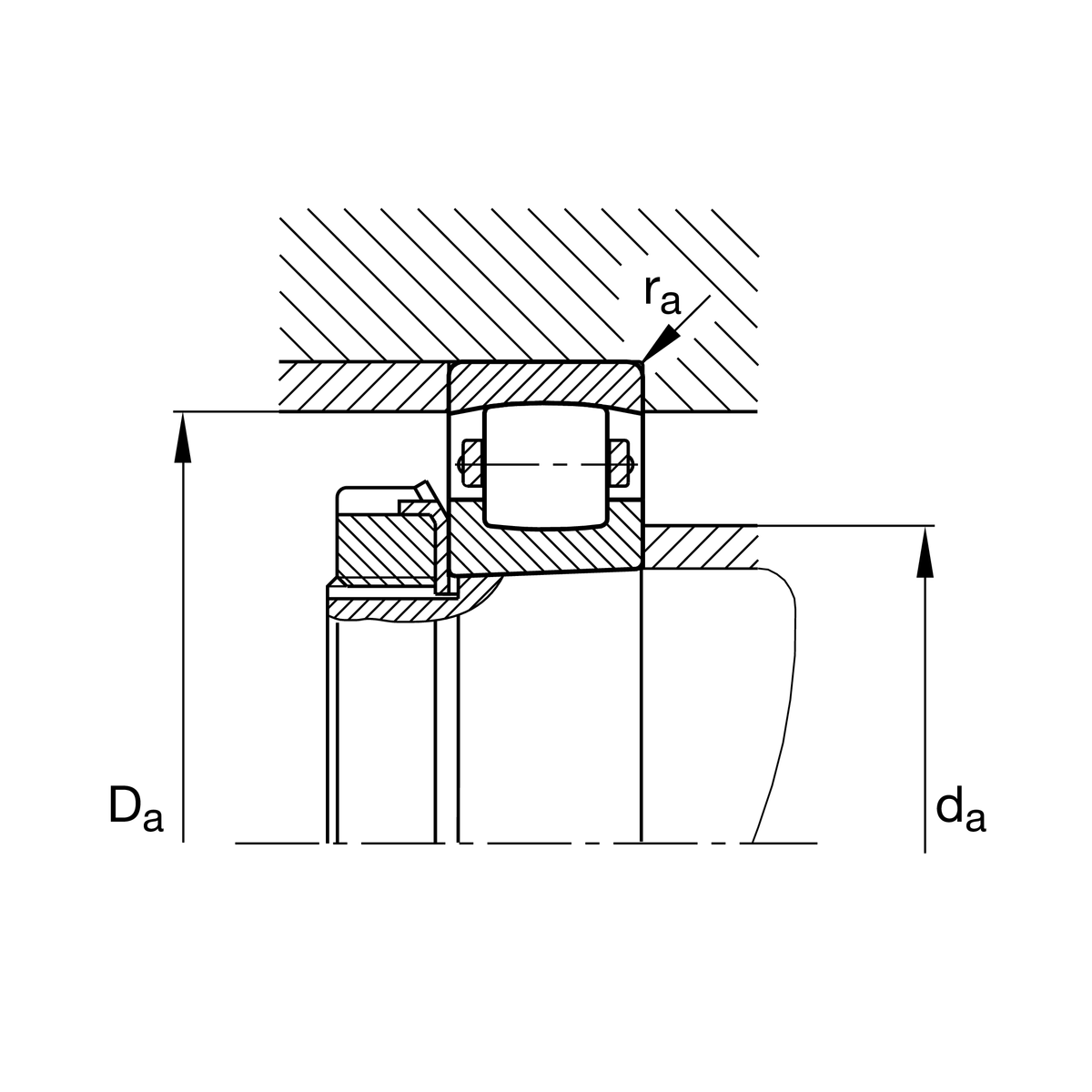

Mounting dimensions
| da min | 69 mm | Minimum diameter shaft shoulder |
| Da max | 101 mm | Maximum diameter of housing shoulder |
| ra max | 1.5 mm | Maximum recess radius |
| da max | 73 mm | Maximum diameter of shaft shoulder |
| db min | 64 mm | Minimum cavity diameter of the sleeve |
| Ba min | 6 mm | Minimum cavity width of the sleeve |
Dimensions
| rmin | 1.5 mm | Minimum chamfer dimension |
| D1 | 97.8 mm | Bore diameter outer ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
H212 | Adapter sleeve |
Your current product variant
| Bore type | K | Tapered, taper 1:12 |
| Cage | TVP | Plastic cage |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
