FAG INA Schaeffler
INA
GAY40-XL-NPP-B
Radial insert ball bearing GAY40-XL-NPP-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
40 mm
Bore diameter
DSP
80 mm
Outside diameter
B
39.45 mm
Width
Cur
910 N
Fatigue load limit, radial
Cr
32,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
≈m
0.53 kg
Weight

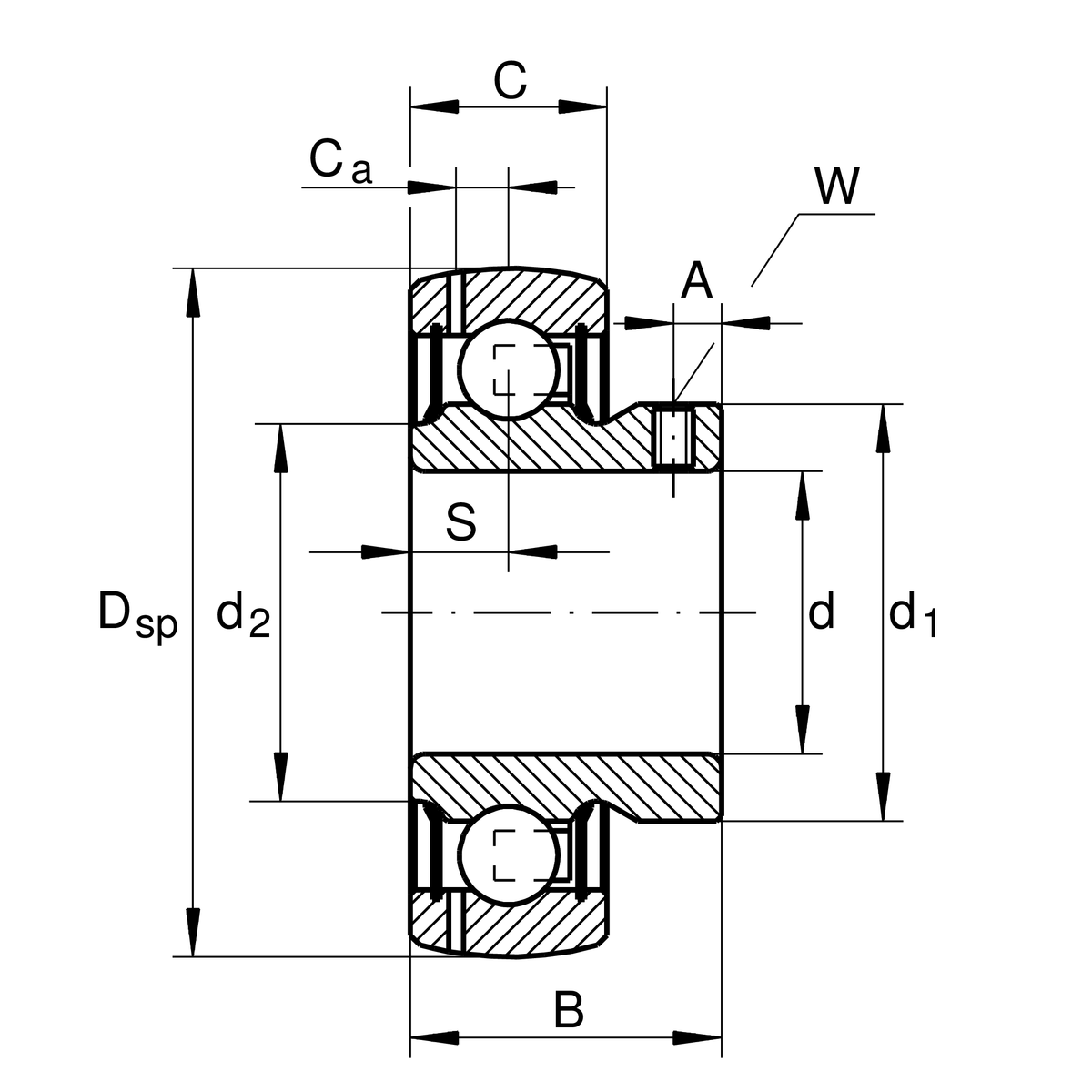

Dimensions
C
21 mm
Width, outer ring
S
10.5 mm
Distance raceway
d1
52.4 mm
Rib diameter inner ring
d2
49.3 mm
Rib diameter sealing inner ring
Ca
6.4 mm
Distance to lubrication hole
A
8 mm
Distance thread
W
4 mm
Width of flats

Calculation factors
f0
13.6
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Shape of outer surfaceB
