GAY60-XL-NPP-B
Radial insert ball bearing GAY60-XL-NPP-B
Thêm vào yêu cầu báo giá

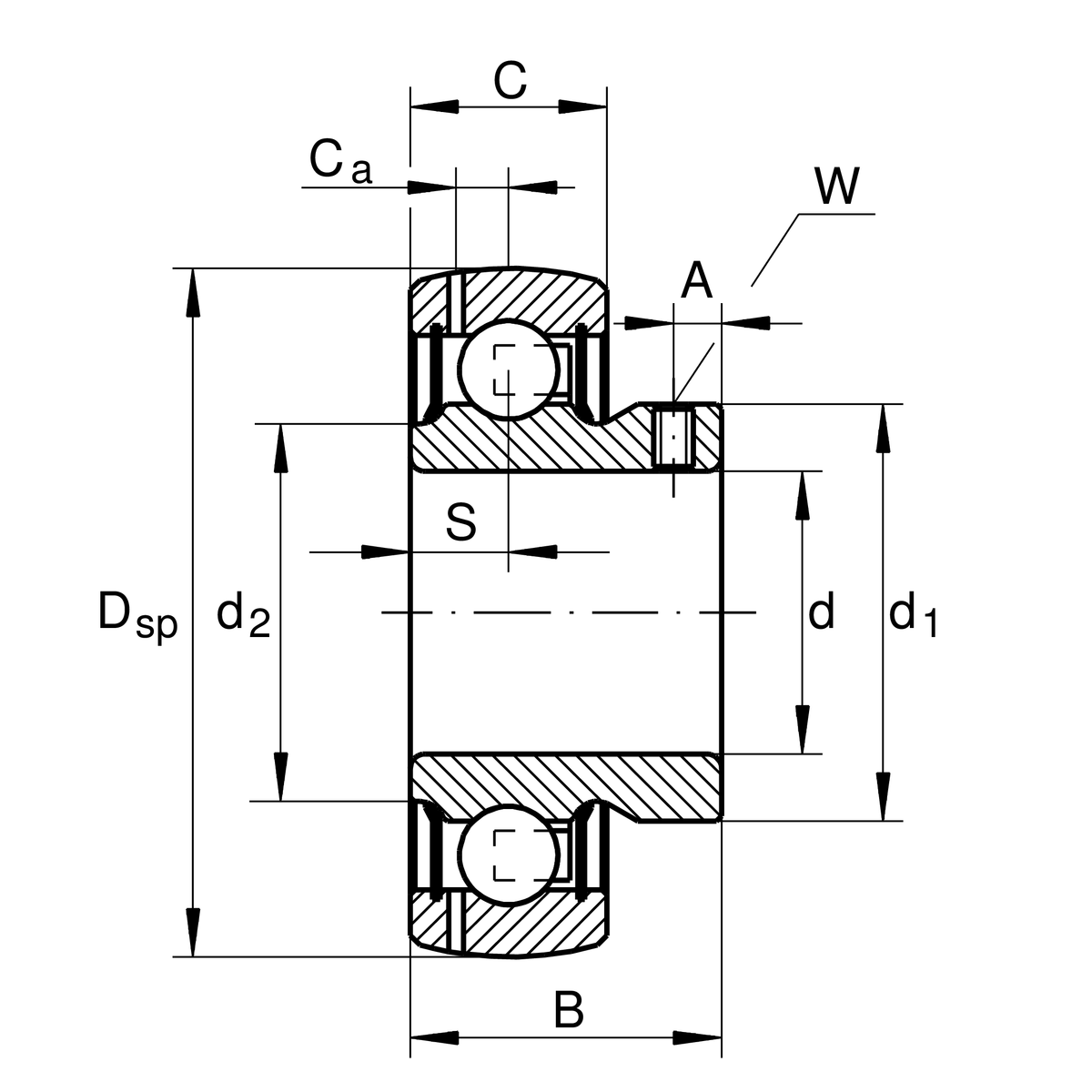

Main Dimensions & Performance Data
d
60 mm
Bore diameter
DSP
110 mm
Outside diameter
B
47 mm
Width
Cur
1,530 N
Fatigue load limit, radial
Cr
52,000 N
Basic dynamic load rating, radial
C0r
36,000 N
Basic static load rating, radial
≈m
1.109 kg
Weight

Dimensions
C
24 mm
Width, outer ring
S
13 mm
Distance raceway
d1
76 mm
Rib diameter inner ring
d2
73.6 mm
Rib diameter sealing inner ring
Ca
7.2 mm
Distance to lubrication hole
A
10 mm
Distance thread
W
5 mm
Width of flats

Calculation factors
f0
14.3
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Shape of outer surfaceB
