Main Dimensions & Performance Data
| d | 40 mm | Bore diameter |
| DSP | 80 mm | Outside diameter |
| B | 18 mm | Width |
| Cur | 1,030 N | Fatigue load limit, radial |
| Cr | 32,500 N | Basic dynamic load rating, radial |
| C0r | 19,800 N | Basic static load rating, radial |
| ≈m | 0.323 kg | Weight |

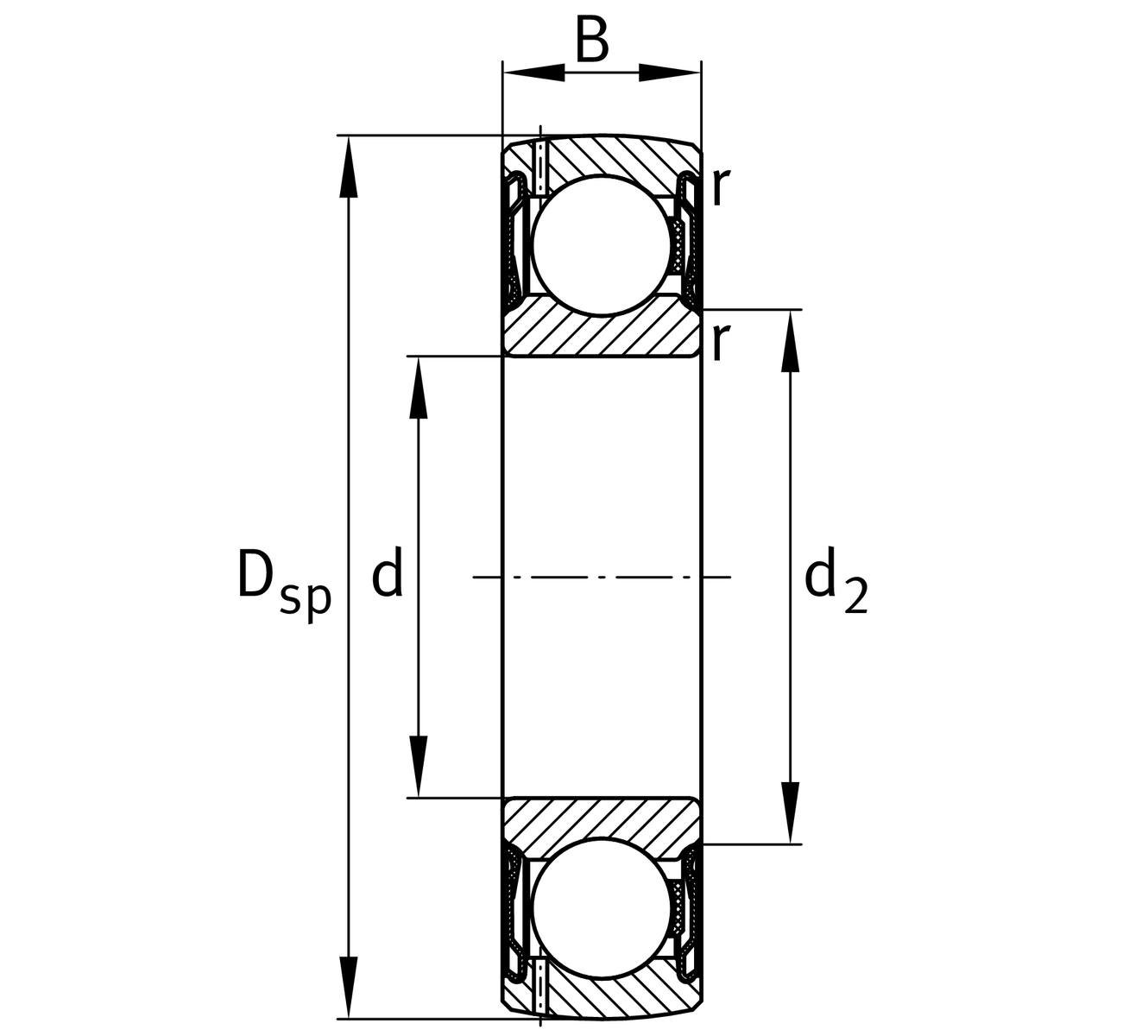

Dimensions
| d2 | 48.4 mm | Rib diameter sealing inner ring |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Calculation factors
| f0 | 13.6 | Calculation factor |
Your current product variant
| Sealing | NPP | Lip seal on both sides |
| Shape of outer surface | B |
