G206-NPP-B
Self-aligning deep groove ball bearings G206-NPP-B
Thêm vào yêu cầu báo giá

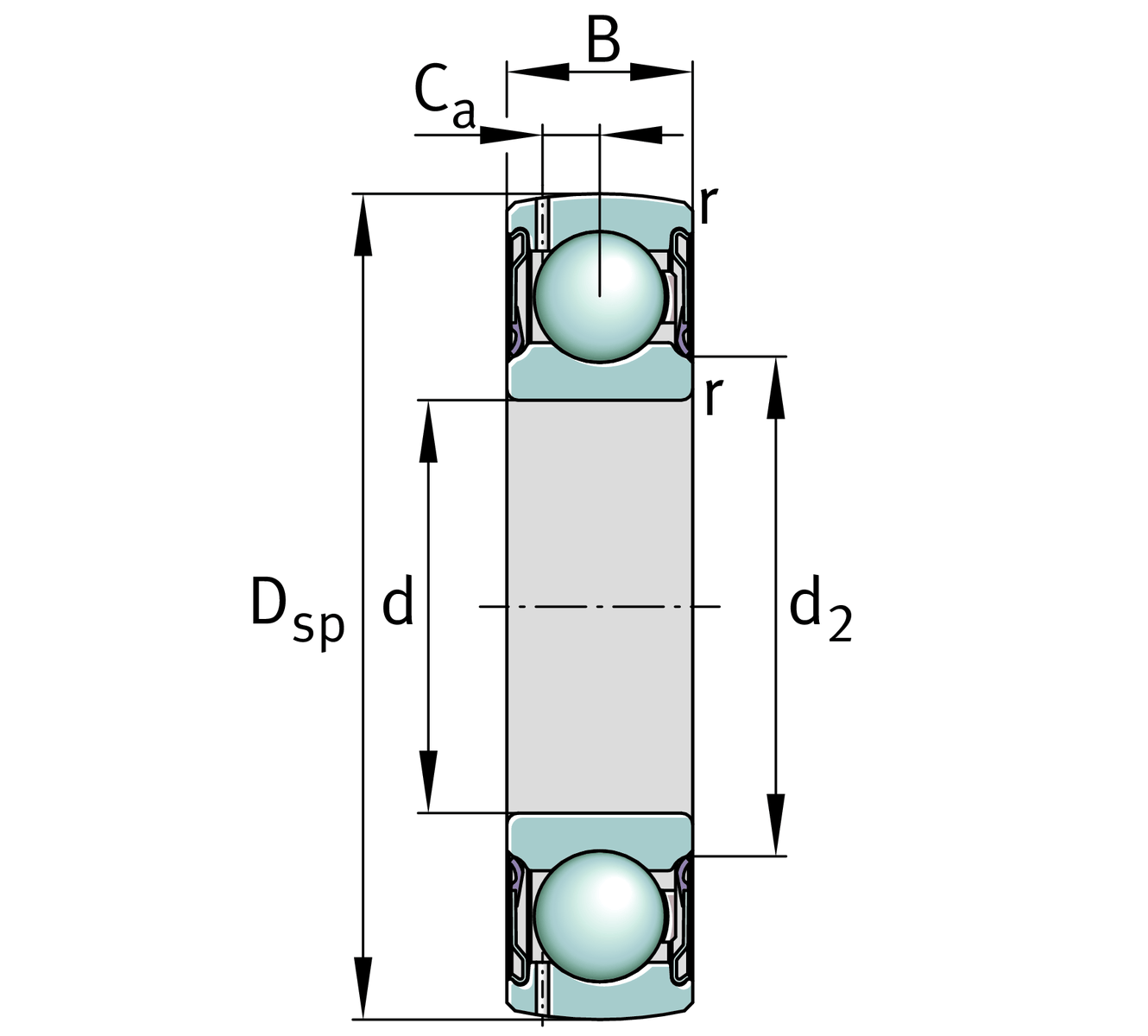

Main Dimensions & Performance Data
d
30 mm
Bore diameter
DSP
62 mm
Outside diameter
B
16 mm
Width
Cr
19,500 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
≈m
0.18 kg
Weight

Dimensions
d2
37.4 mm
Rib diameter sealing inner ring
Ca
4.6 mm
Distance to lubrication hole

Your current product variant
SealingNPP
Shape of outer surfaceBSpherical
