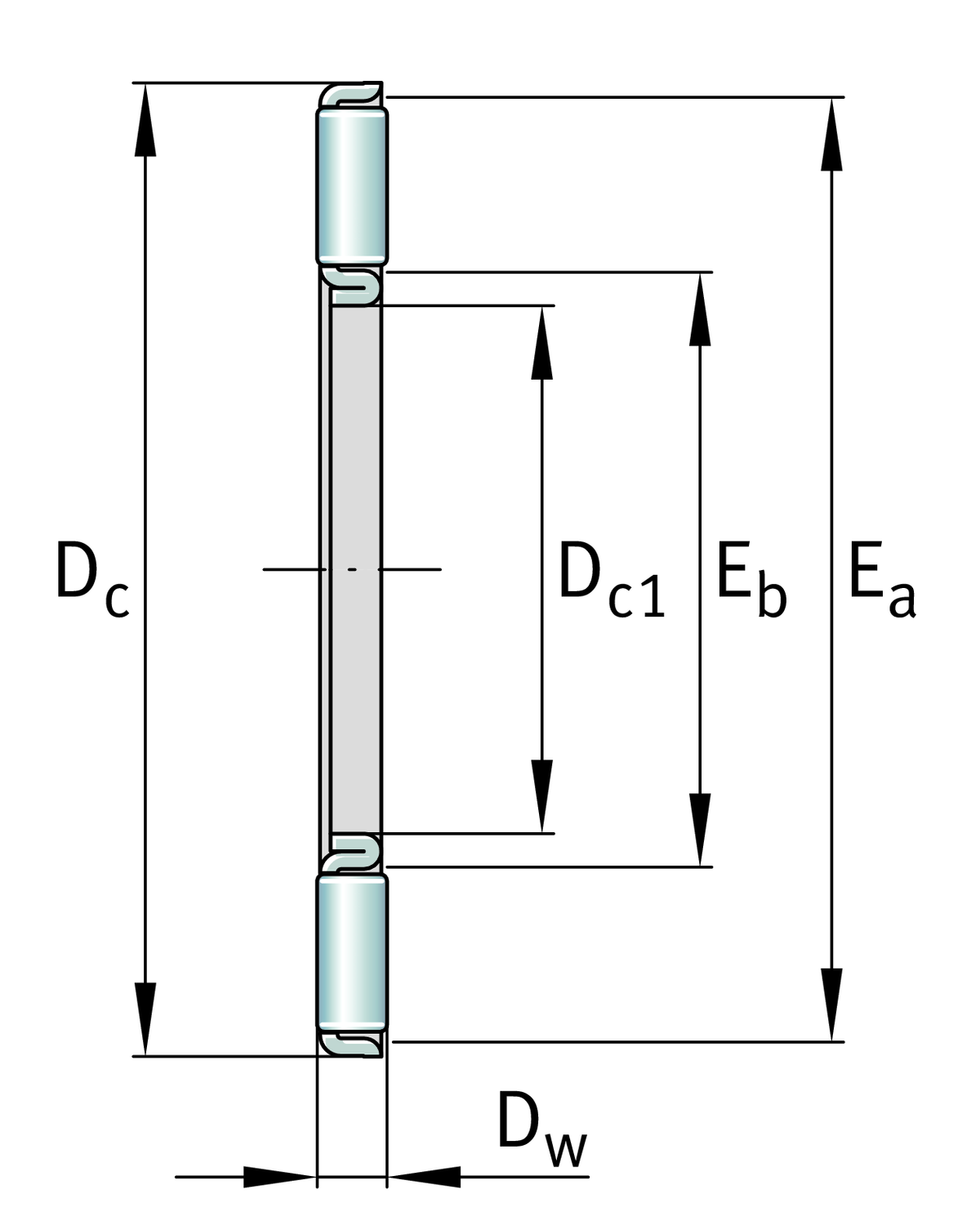

Main Dimensions & Performance Data
| Dc1 | 40 mm | Bore diameter cage |
| Dc | 60 mm | Outside diameter |
| Dw | 3 mm | Rolling element diameter |

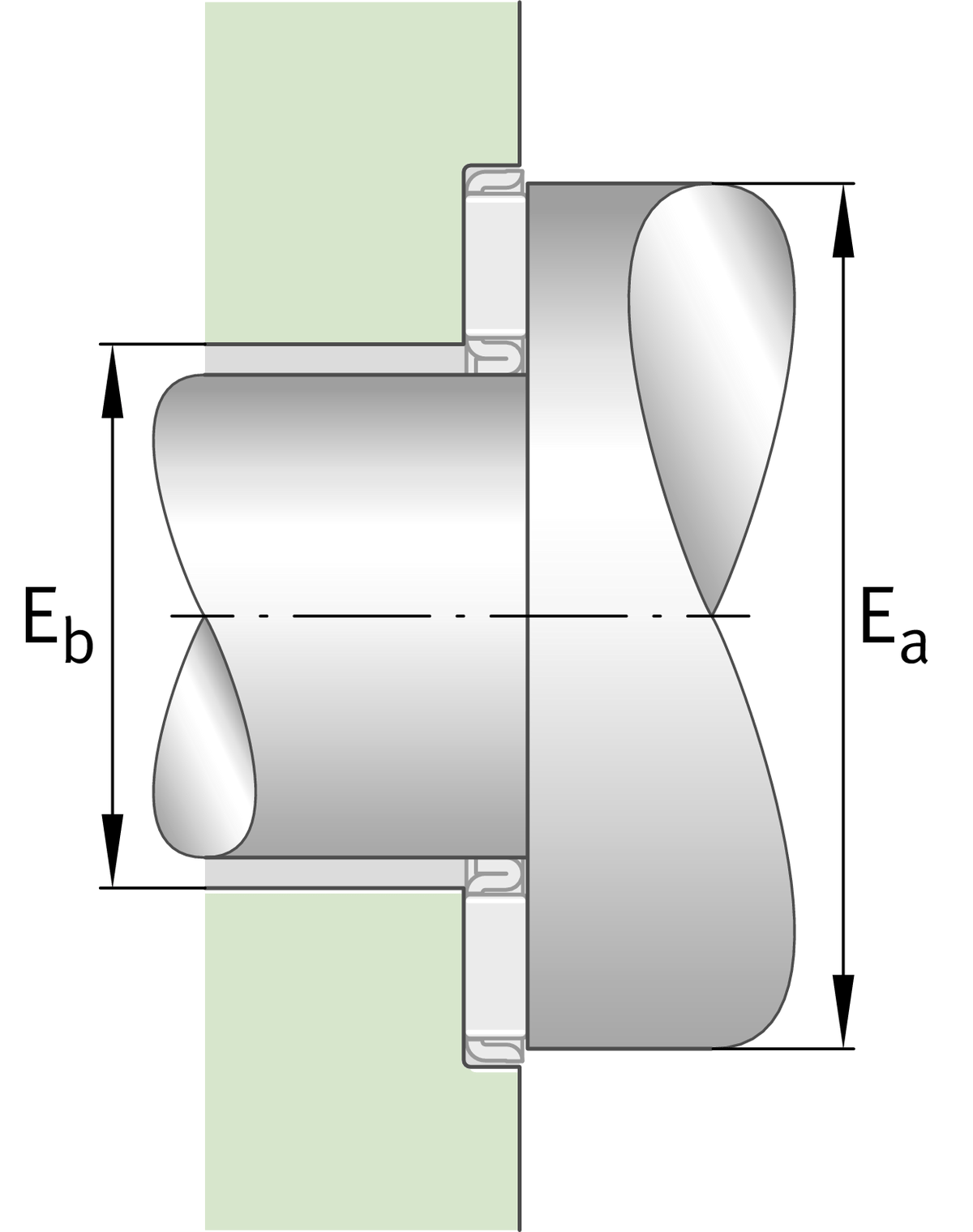

| Ea | 58 mm | Raceway dimension |
| Eb | 45 mm | Raceway dimension |
| ca | 28,000 N | Basic dynamic load rating, axial |
| c0a | 114,000 N | Basic static load rating, axial |
| cua | 12,100 N | Fatigue load limit, axial |
| nG | 5,800 1/min | Limiting speed |
| nϑr | 2,440 1/min | Reference speed |
| ≈m | 15.974 g | Weight |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
AS4060 | Axial bearing washer |
