Main Dimensions & Performance Data

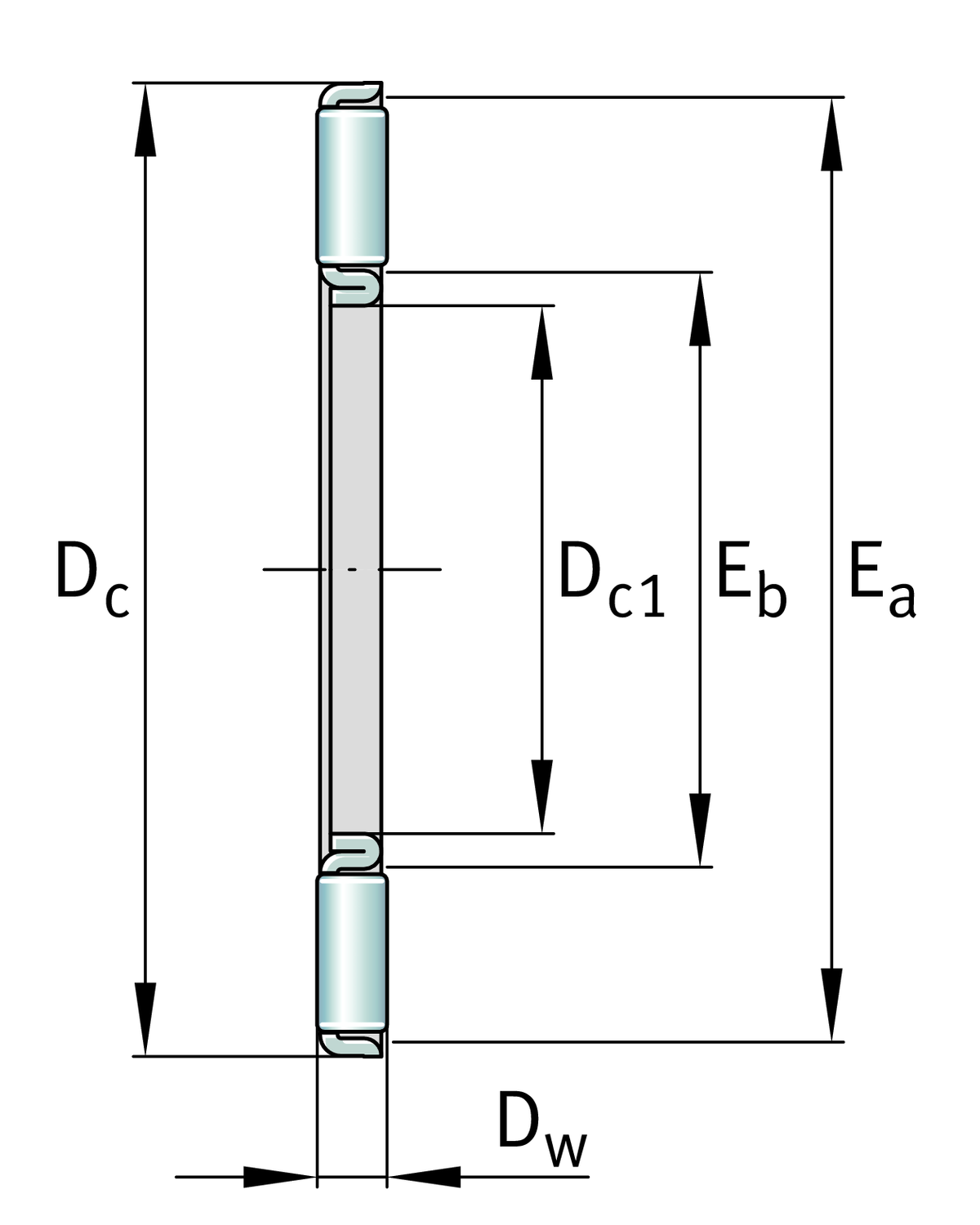

| Dc1 | 35 mm | Bore diameter cage |
| Dc | 52 mm | Outside diameter |
| Dw | 2 mm | Rolling element diameter |

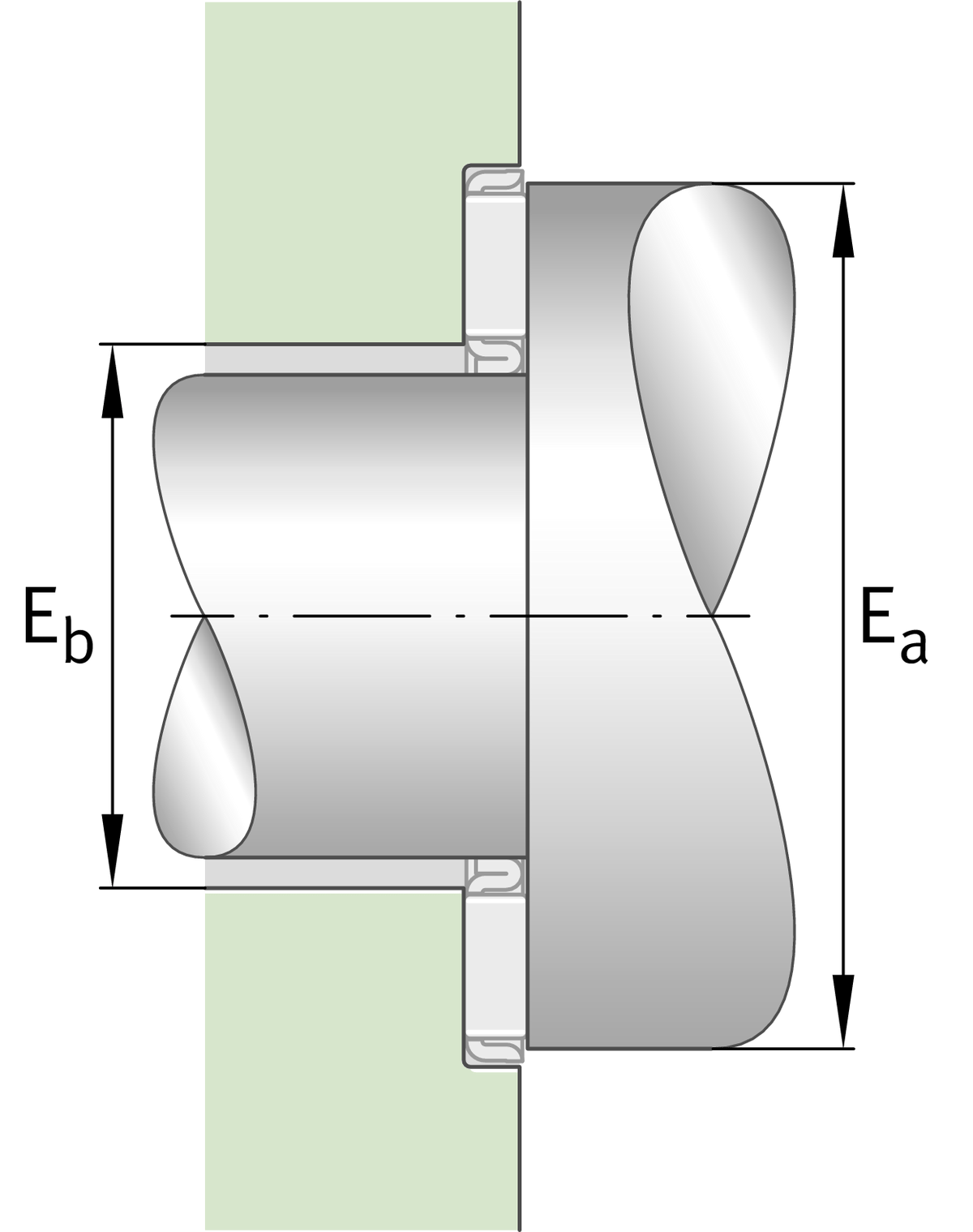

| Ea | 51 mm | Raceway dimension |
| Eb | 39 mm | Raceway dimension |
| ca | 17,900 N | Basic dynamic load rating, axial |
| c0a | 81,000 N | Basic static load rating, axial |
| cua | 8,400 N | Fatigue load limit, axial |
| nG | 6,600 1/min | Limiting speed |
| nϑr | 2,800 1/min | Reference speed |
| ≈m | 9.386 g | Weight |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
AS3552 | Axial bearing washer |
