FAG INA Schaeffler
INA
G1108-KRR-B-AS2/V
Radial insert ball bearing G1108-KRR-B-AS2/V
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
38.1 mm
Bore diameter
d
38.1 mm
Bore diameter, inch
DSP
80 mm
Outside diameter
B
42.9 mm
Width
Cur
940 N
Fatigue load limit, radial
B1
56.5 mm
Locking collar total width
Cr
32,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
≈m
0.735 kg
Weight

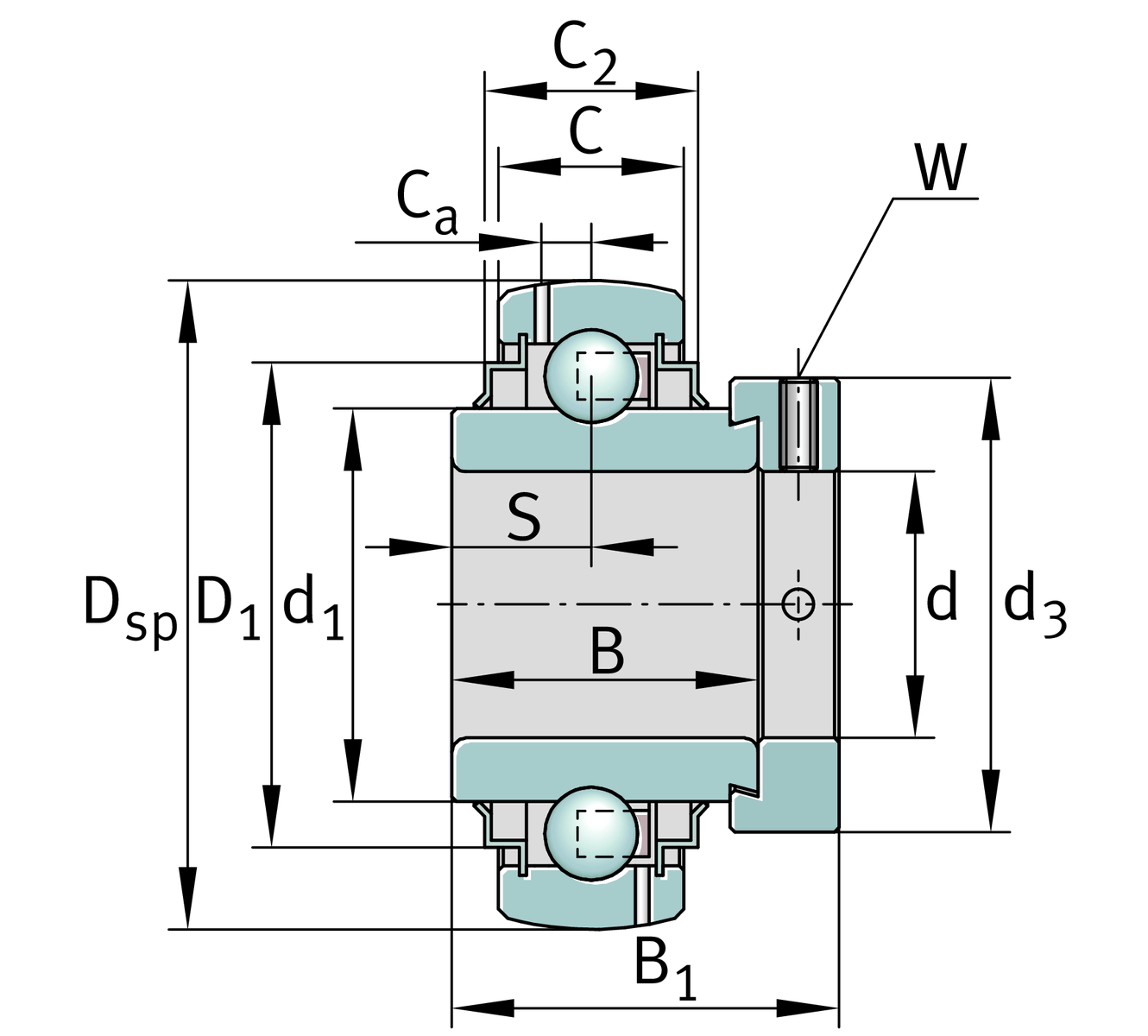

Dimensions
C
21 mm
Width, outer ring
C2
22.5 mm
Sealing total width
S
21.4 mm
Distance raceway
d1
52.3 mm
Rib diameter inner ring
D1
68.3 mm
Outside diameter seal
Ca
6.5 mm
Distance to lubrication hole
d3
58 mm
Outside diameter locking collar/locknut

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Calculation factors
f0
13.6
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
