G1107-KRR-B-AS2/V

Radial insert ball bearing G1107-KRR-B-AS2/V

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	36.5125 mm	Bore diameter
d	36.512 mm	Bore diameter, inch
D_SP	72 mm	Outside diameter
B	37.7 mm	Width
C_ur	730 N	Fatigue load limit, radial
B₁	51.3 mm	Locking collar total width
C_r	25,500 N	Basic dynamic load rating, radial
C_0r	15,300 N	Basic static load rating, radial
≈m	0.49 kg	Weight

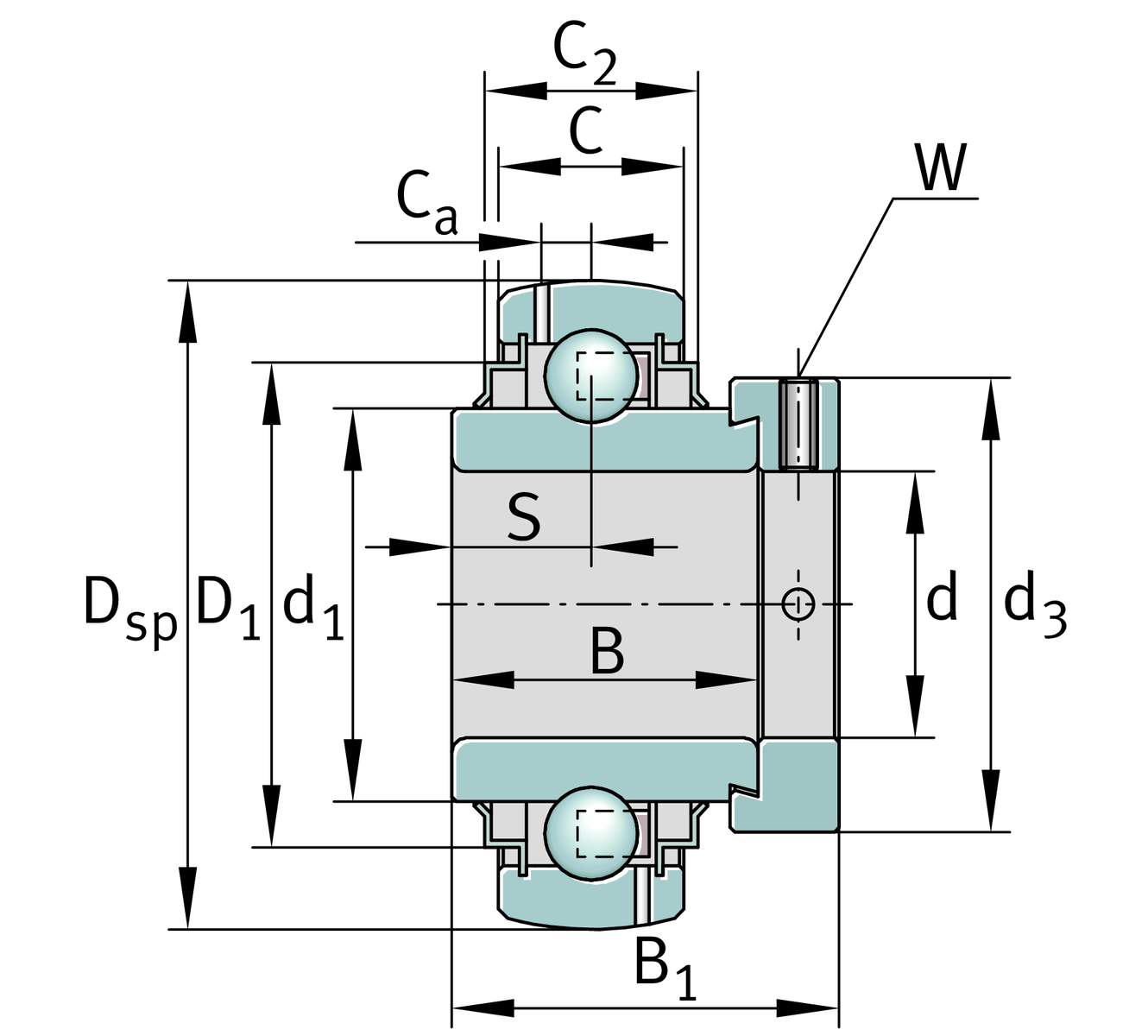

Dimensions

C	19 mm	Width, outer ring
C₂	20.7 mm	Sealing total width
S	18.8 mm	Distance raceway
d₁	46.8 mm	Rib diameter inner ring
D₁	60.3 mm	Outside diameter seal
C_a	5.7 mm	Distance to lubrication hole
d₃	51 mm	Outside diameter locking collar/locknut

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Calculation factors

f₀	13.8	Calculation factor

Your current product variant

Sealing	KRR	Lip seals on both sides
Shape of outer surface	B
Lubrication hole transposed	AS2/V	AS2/V
