S3026-H-N-FZ-AB-L
Plummer block housing S3026-H-N-FZ-AB-L
Thêm vào yêu cầu báo giá

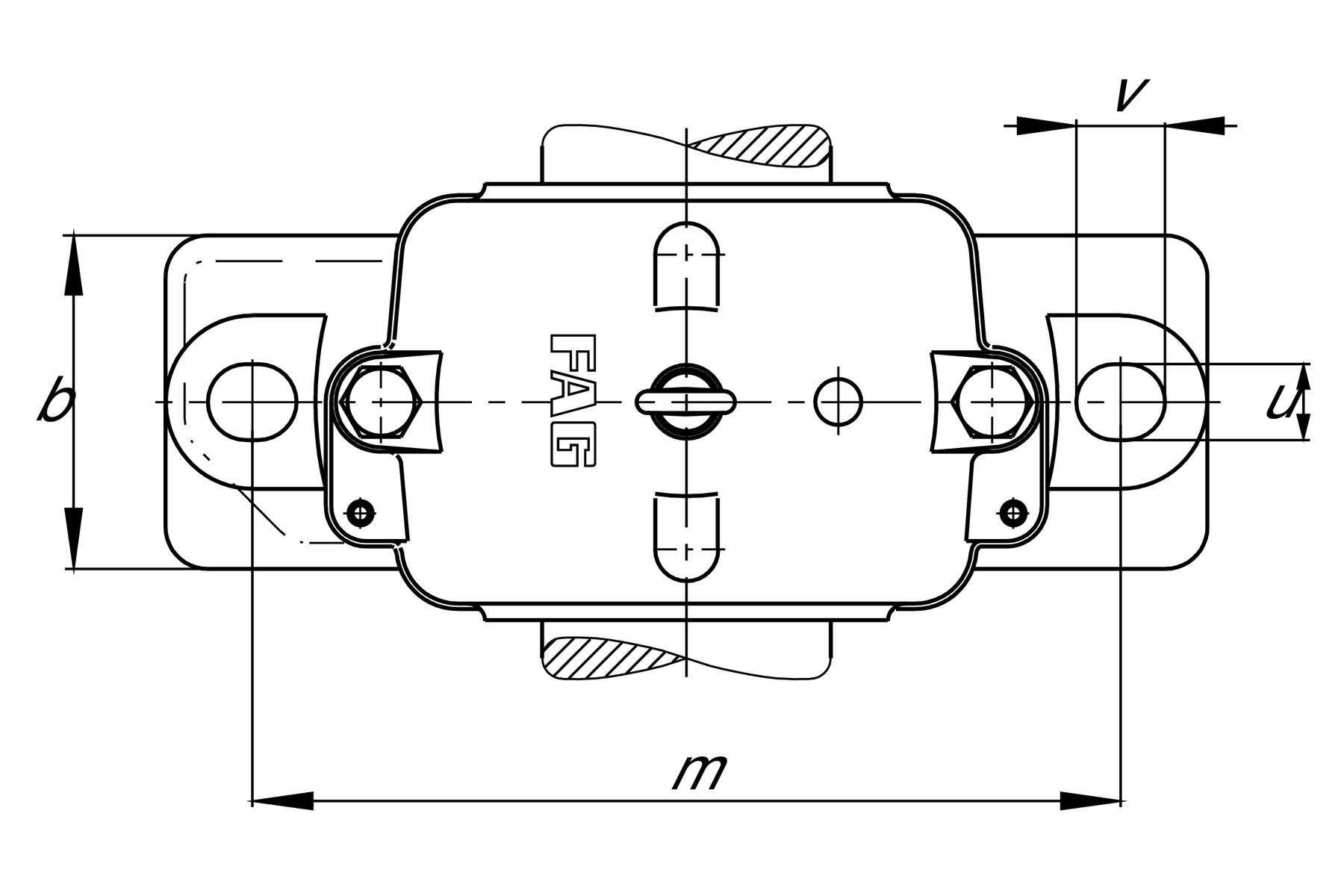

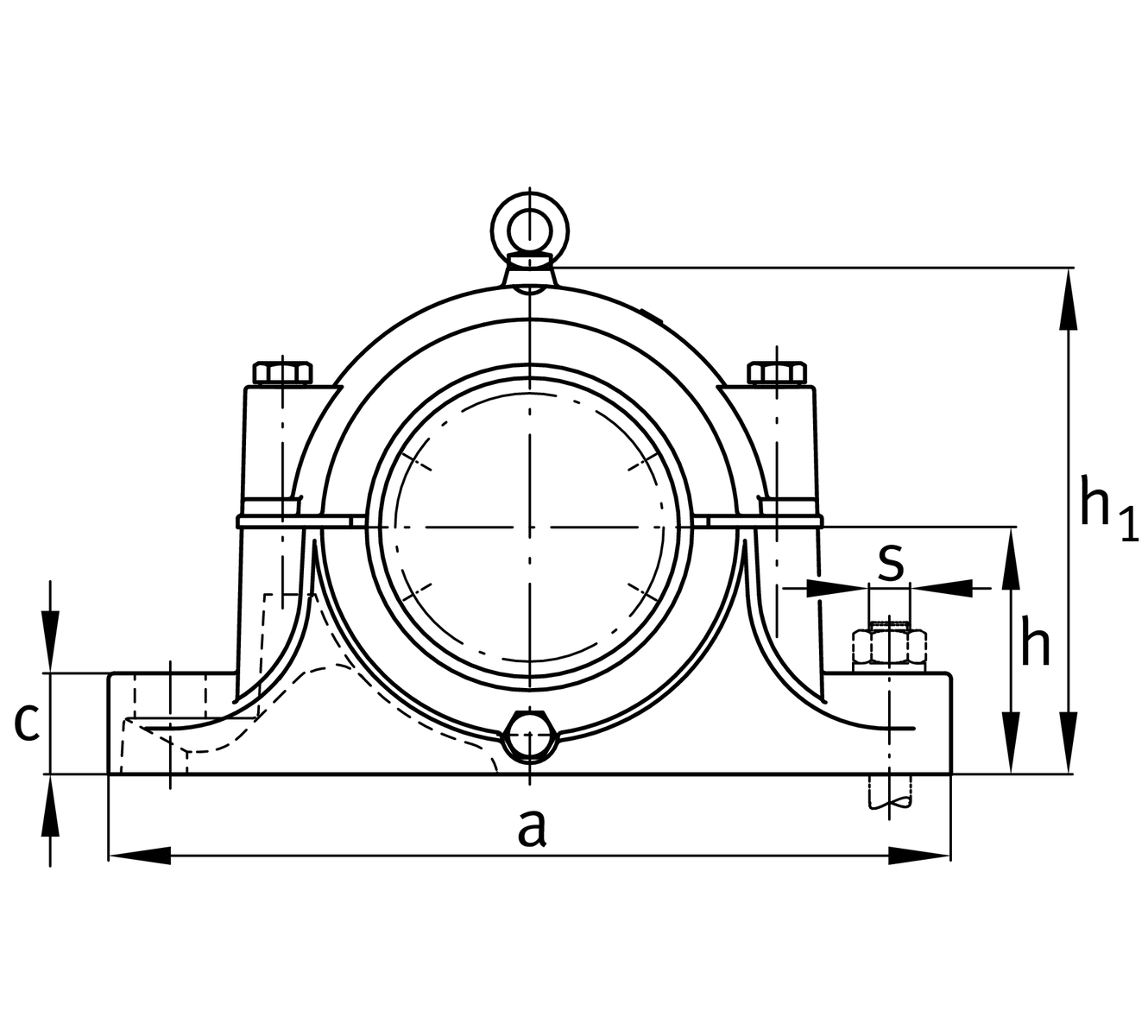

Main Dimensions & Performance Data
d1
115 mm
shaft diameter
a
420 mm
Length base
h1
239 mm
total height
g
160 mm
Width housing
≈m
24.254 kg
Weight

Dimensions
M10x1
Connection thread for lubrication
b
120 mm
Width base
c
45 mm
Height foot
D
200 mm
Outside diameter bearing
g3
18 mm
Wall thickness g3
h
125 mm
Distance shaft axis
m
350 mm
Distance fixing bore
s
M24
size of fixing screw
s
25.4 mm
Screw size
u
30 mm
Width oblong hole
v
36 mm
Lenght oblong hole
