S3024-H-N-FZ-AB-L
Plummer block housing S3024-H-N-FZ-AB-L
Thêm vào yêu cầu báo giá

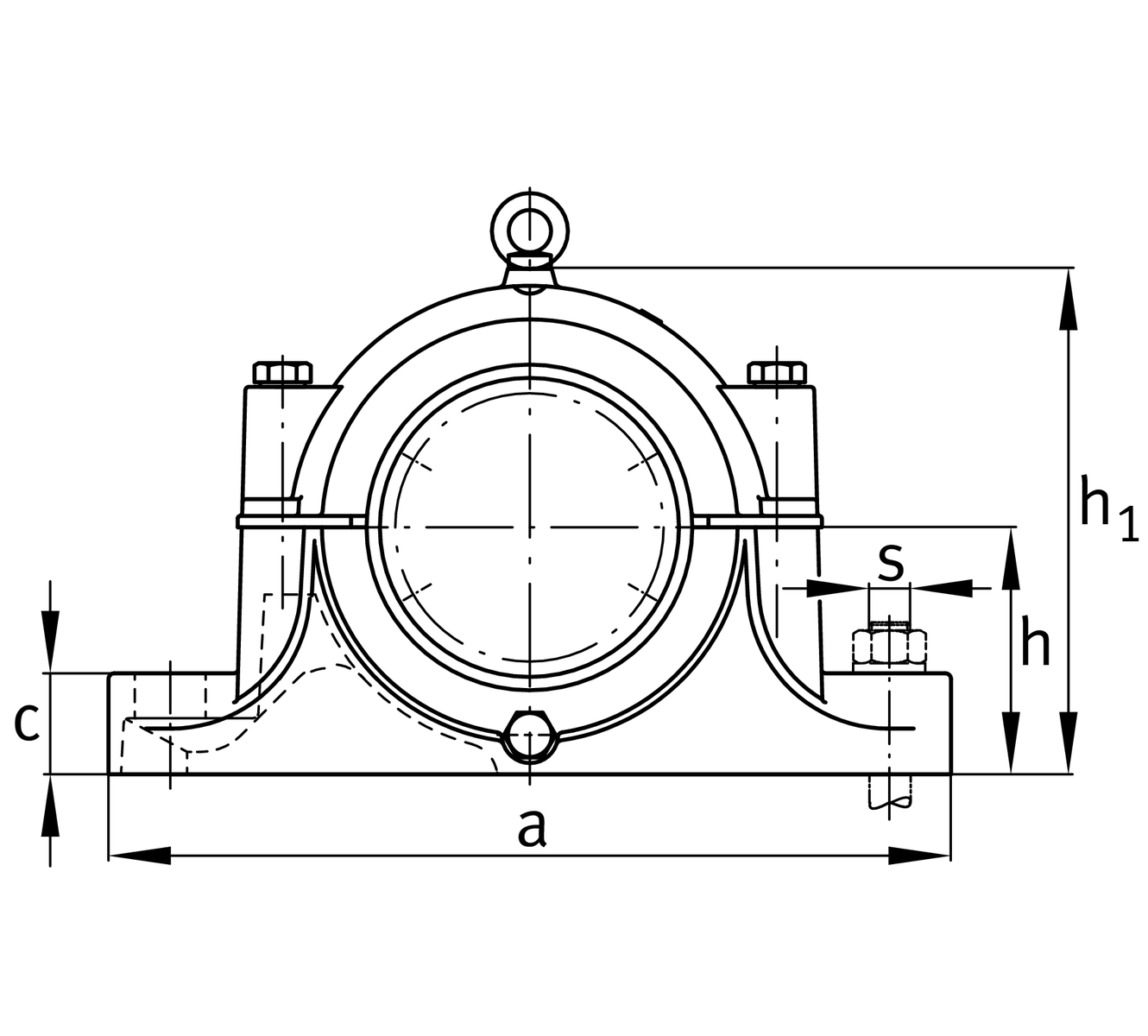

Main Dimensions & Performance Data
d1
110 mm
shaft diameter
a
390 mm
Length base
h1
215 mm
total height
g
150 mm
Width housing
≈m
17.2 kg
Weight

Dimensions
M10x1
Connection thread for lubrication

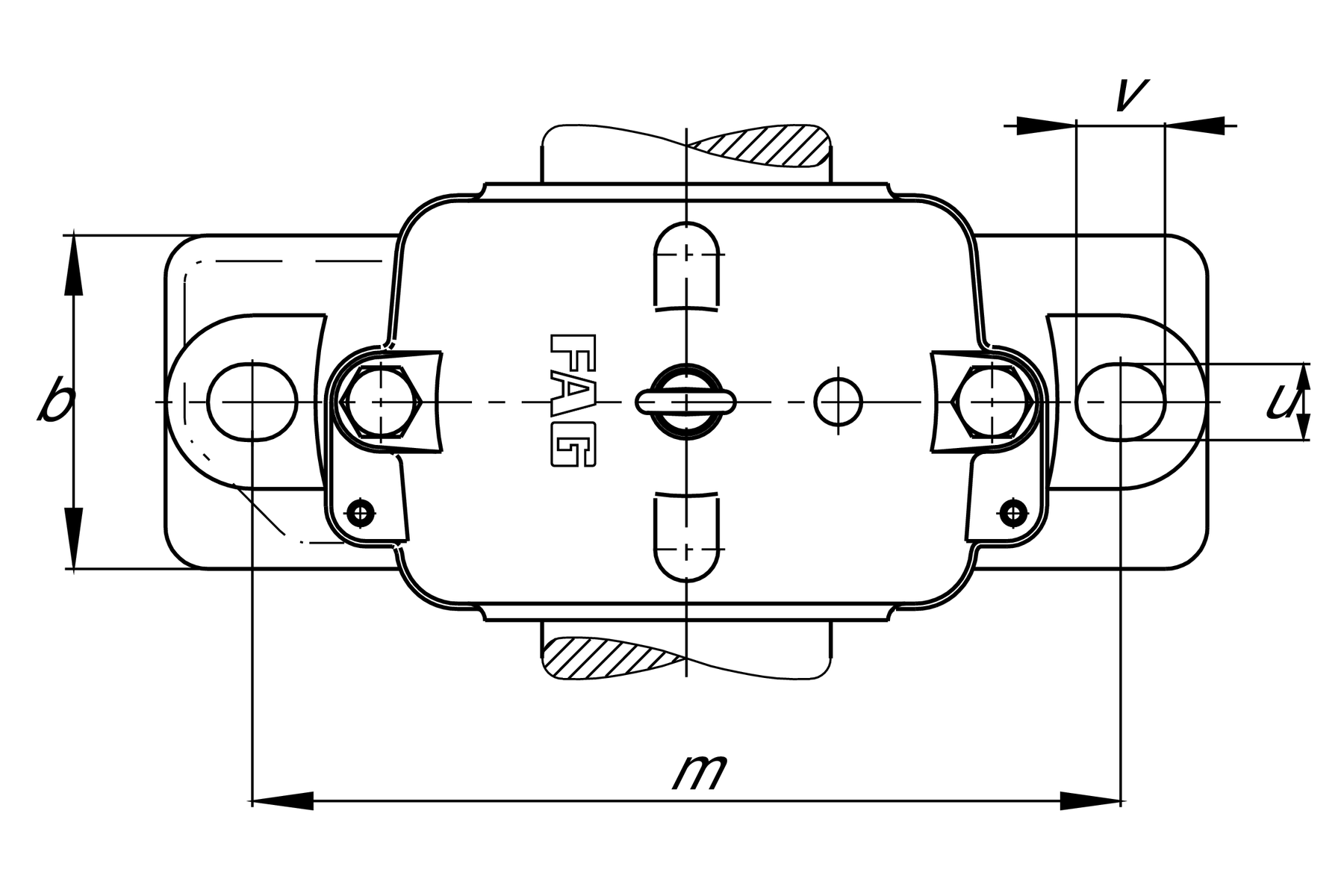

b
110 mm
Width base
c
40 mm
Height foot
D
180 mm
Outside diameter bearing
g3
18 mm
Wall thickness g3
h
112 mm
Distance shaft axis
m
320 mm
Distance fixing bore
s
M24
size of fixing screw
s
25.4 mm
Screw size
u
30 mm
Width oblong hole
v
36 mm
Lenght oblong hole
