RHEY40-TV-VA

Take-up housing unit RHEY40-TV-VA

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	40 mm	Bore diameter
L	140 mm	Length
M	100 mm	Housing total width
≈m	0.95 kg	Weight

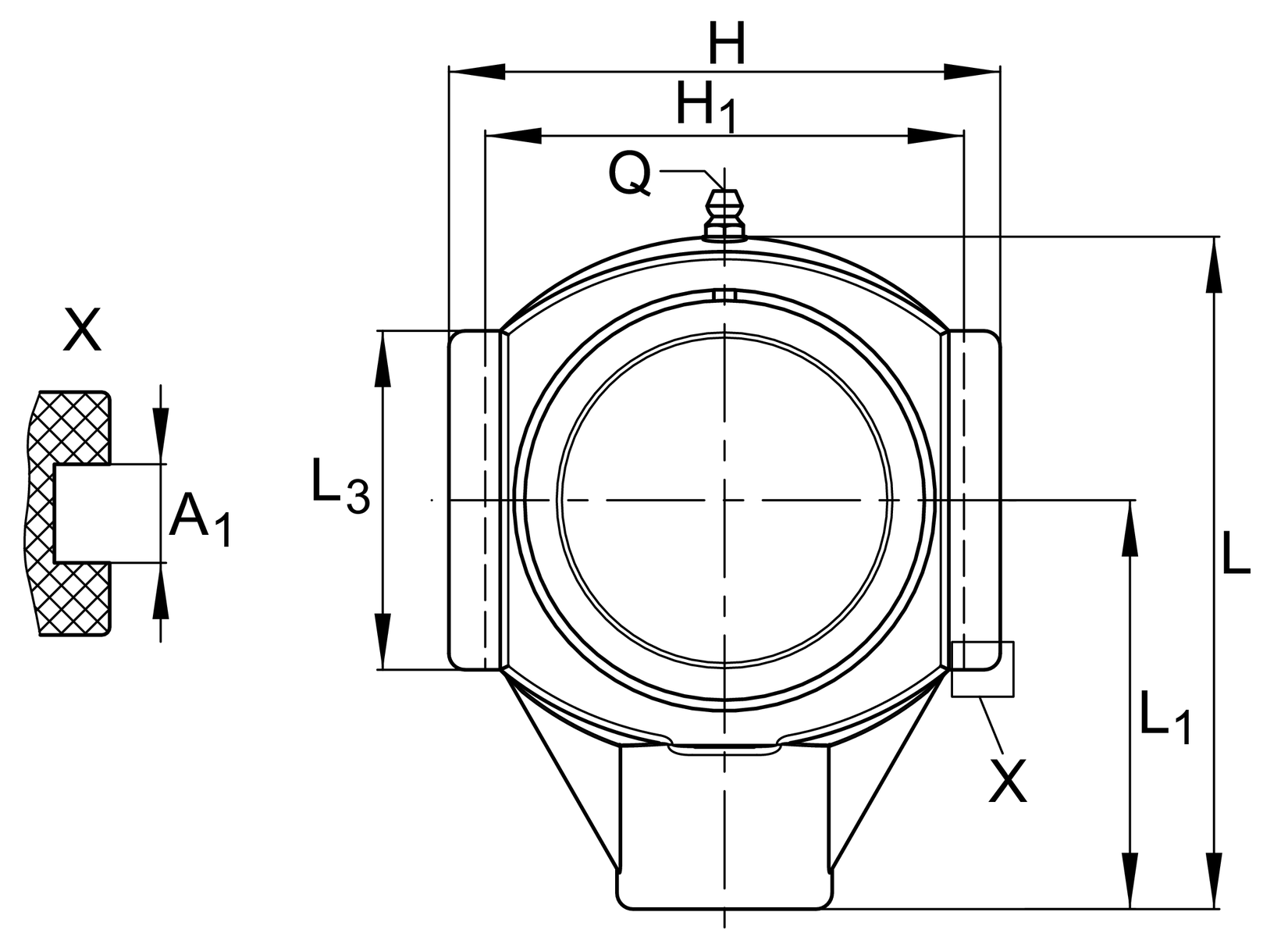

Mounting dimensions

L₁	85 mm	Distance shaft axis
L₃	80 mm	Length guidance grooves
K	M16	Thread fixing bore
Q	1/4-28 UNF	Connection thread for lubrication

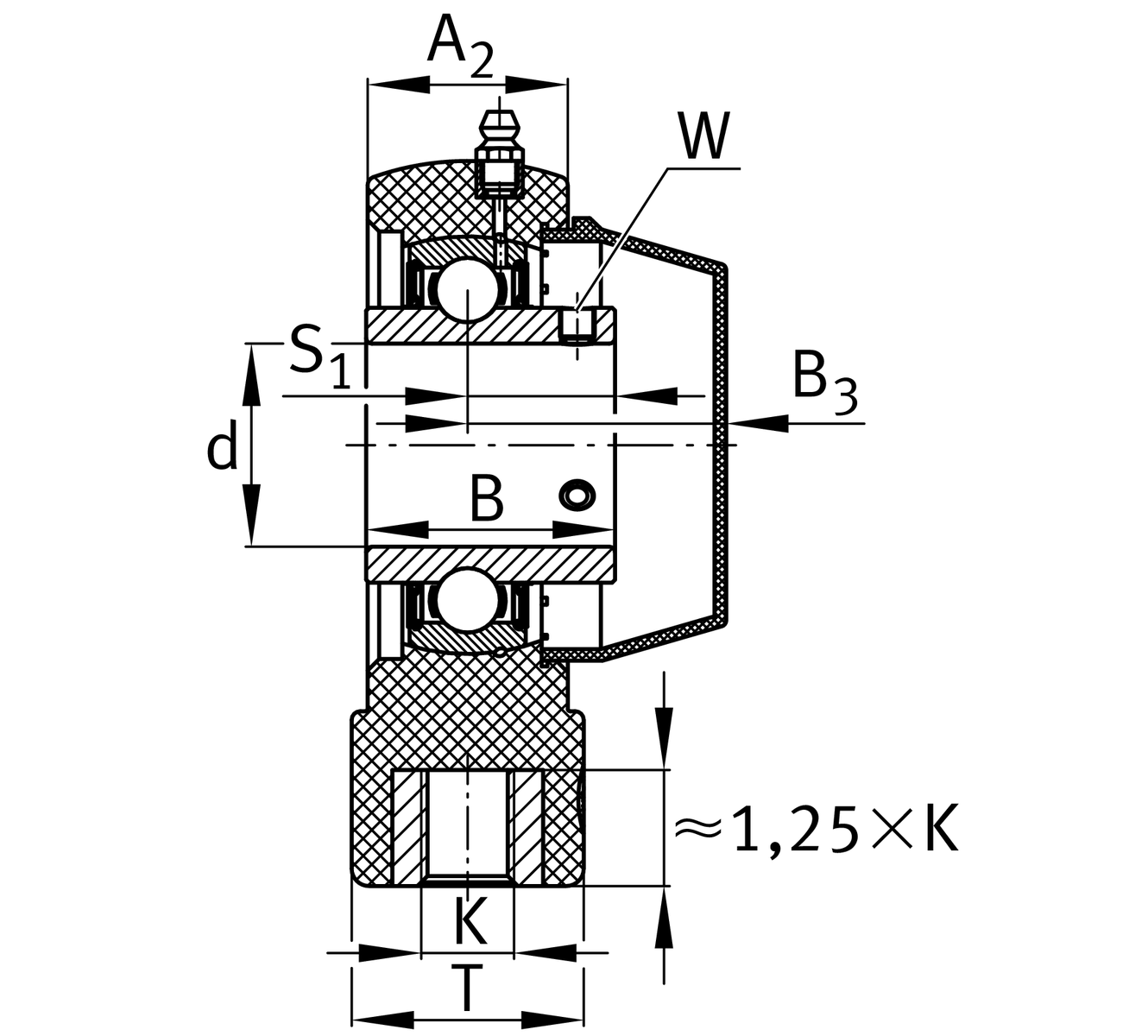

Dimensions

T	40 mm	Height (housing, mounting side)
A₂	34.5 mm	Width housing

Additional information

	HE08-TV	Housing
	GYE40-KRR-B-FA107-VA	Bearing designation
	KASK08-S-G	End cap
	KASK08-S-R-NBR	Open protecting cap

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	80 °C	Operating temperature max.

Your current product variant

Special material	TV	Plastic housing
Corrosion resistant bearing	VA	Corrosion-resistant VA design
Material	TV	Plastic
