RLCTE25
Flanged housing unit RLCTE25
Thêm vào yêu cầu báo giá

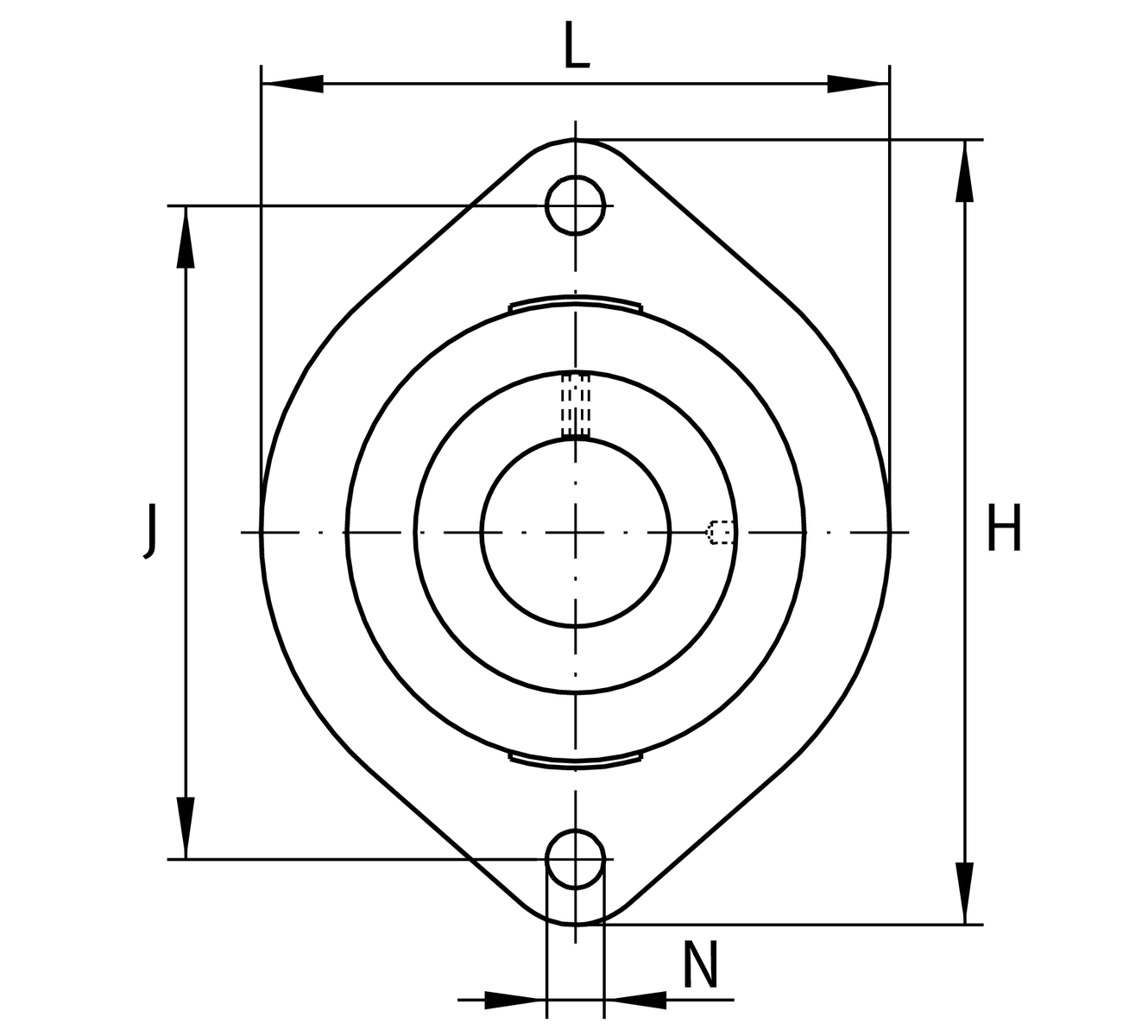

Main Dimensions & Performance Data
d
25 mm
Bore diameter
L
71 mm
Flange width
H
97 mm
Height flange
U
36.9 mm
Total height unit
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
Cur
410 N
Fatigue load limit, radial
≈m
0.52 kg
Weight

Mounting dimensions
J
76.2 mm
Distance fixing bore
N
9 mm
Fixing bore
W
3 mm
Width across flats
n
2
Number of screwing holes

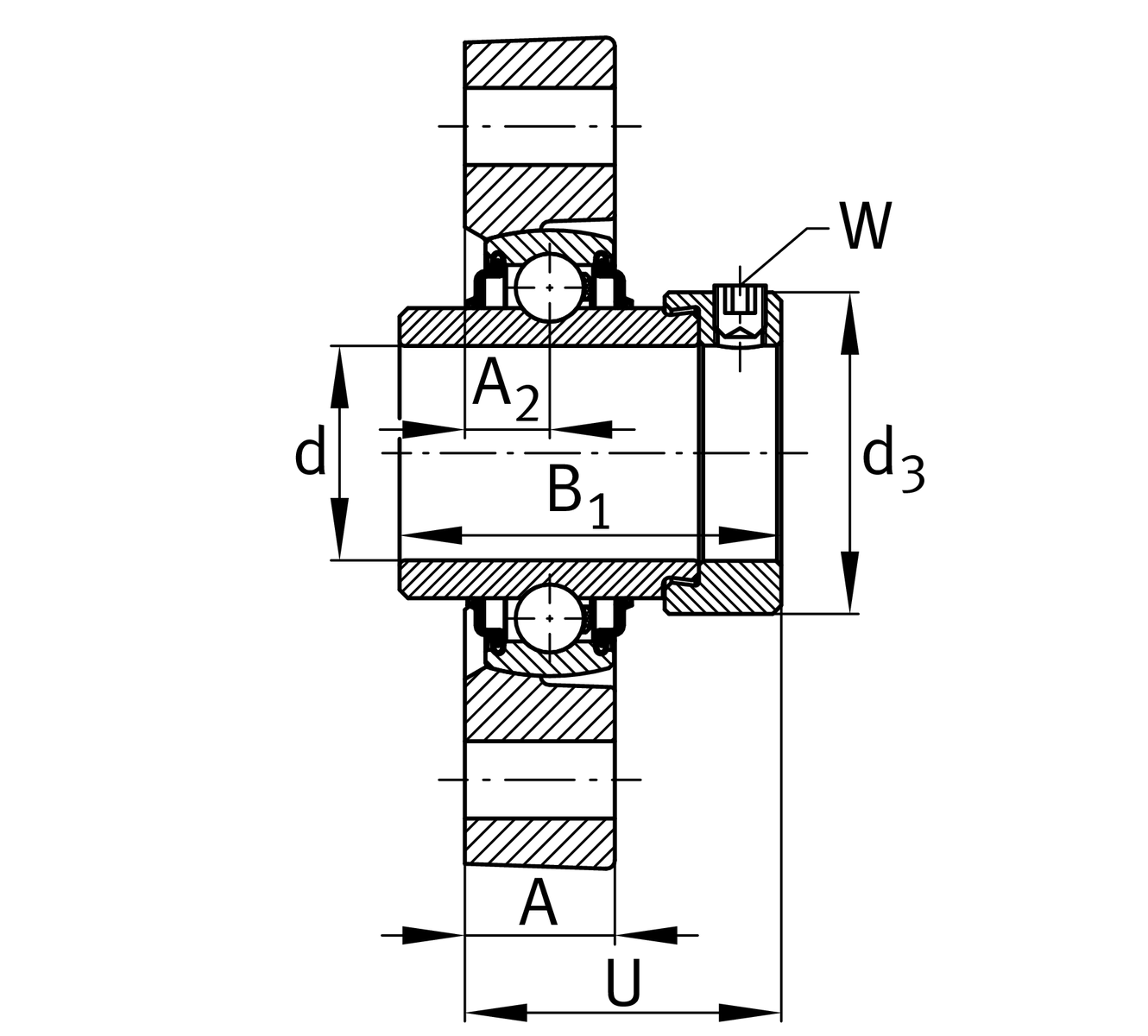

Dimensions
A
19.5 mm
Thickness of flange
A2
9.9 mm
Distance raceway
B1
44.5 mm
Locking collar total width
d3
37.5 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
LCTE05-E
Housing
E25-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
