Main Dimensions & Performance Data
| lk max | 4,000 mm | Max. length 1 |
| DW | 2 mm | Rolling element diameter |
| b | 24 mm | |

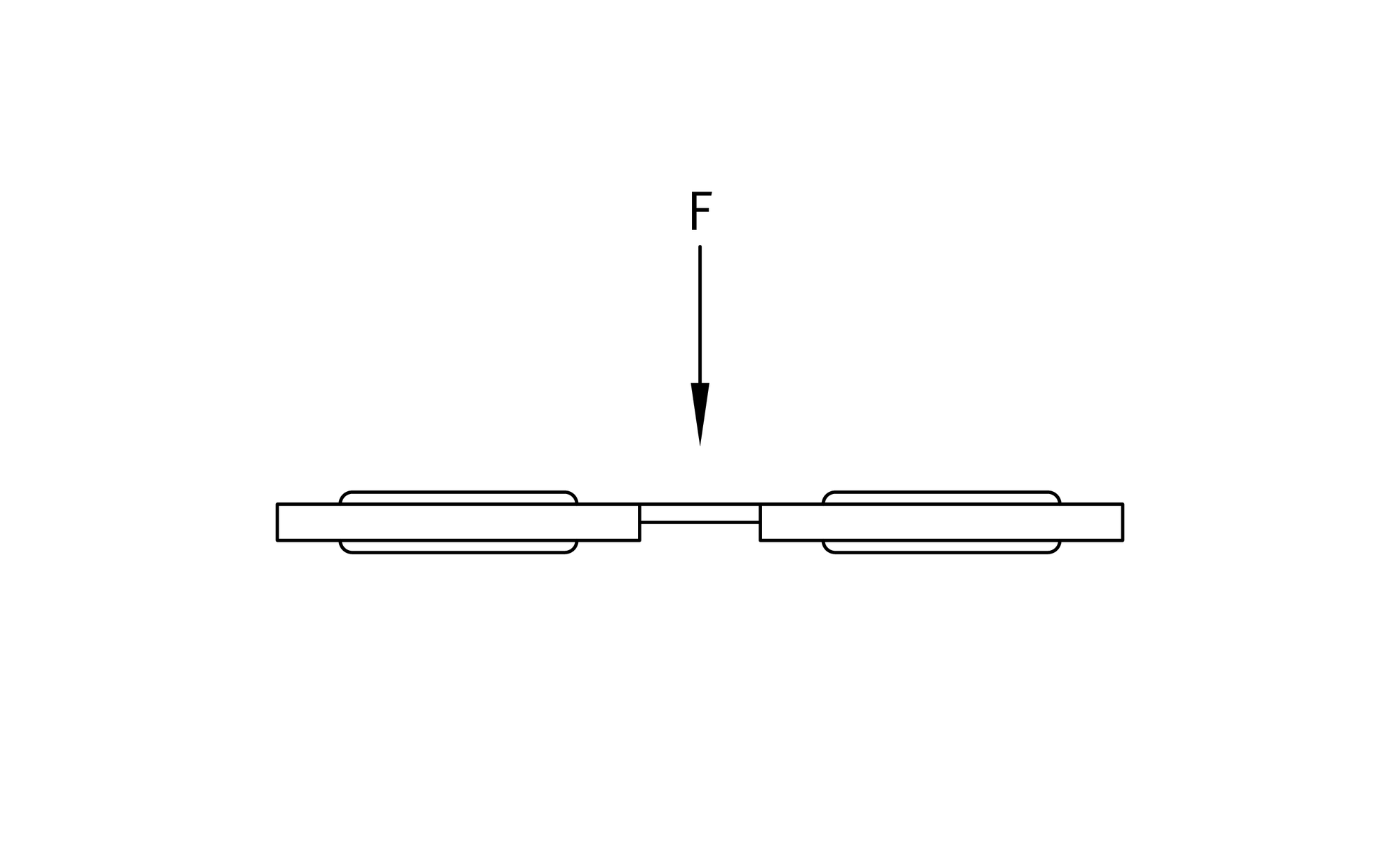

| C | 37,000 N | Load capacity dyn. 2 |
| C0 | 125,700 N | Load capacity stat. 2 |
| ≈m | 138 g/m | Weight |

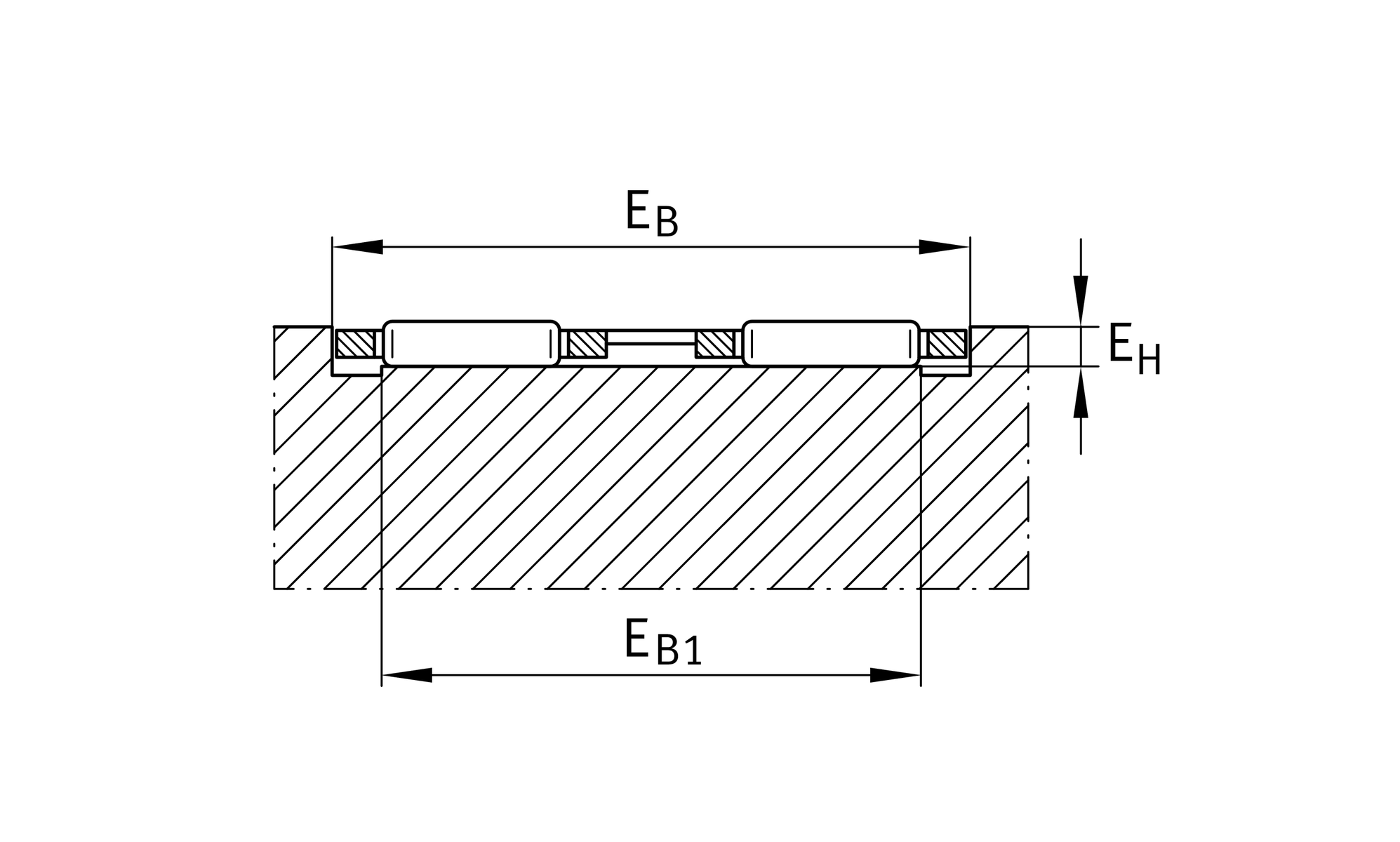

Mounting dimensions
| EB | 24.4 mm | |
| Tol EB | +0,2 | tolerance |
| EB1 | 21 mm | min. |
| EH | 1.7 mm |

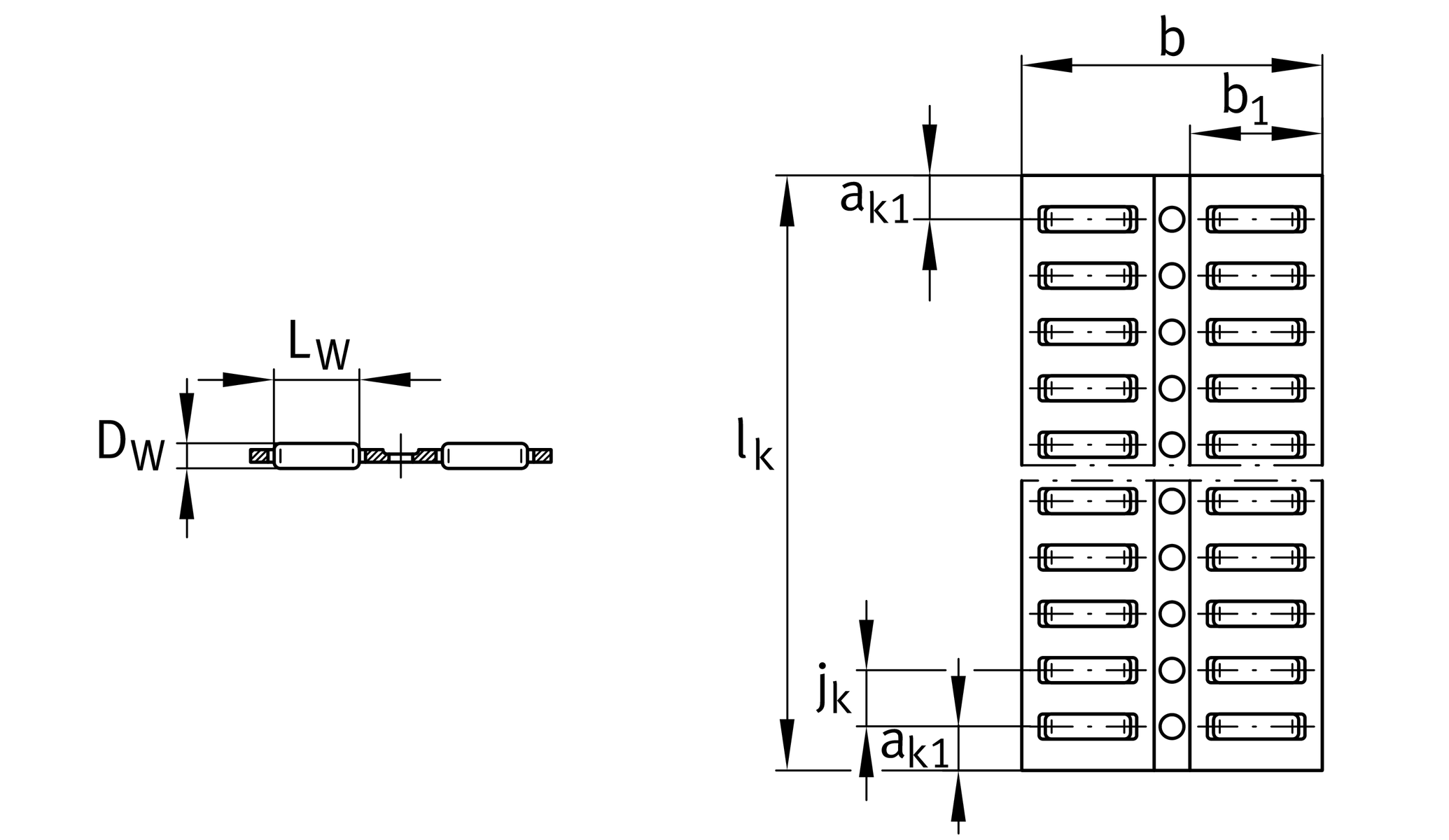

Dimensions
| LW | 6.8 mm | Length rolling element |
| b1 | 10.5 mm | |
| jk | 4.5 mm | |
| ak1 | 3.5 mm |
Related products
J6035, S6035 | Associated rail |
Your current product variant
| Size code | 24 | |
| Number of rolling element rows | ZW | Double-row design |
