FAG INA Schaeffler
INA
H20
Flat cage H20
Thêm vào yêu cầu báo giá

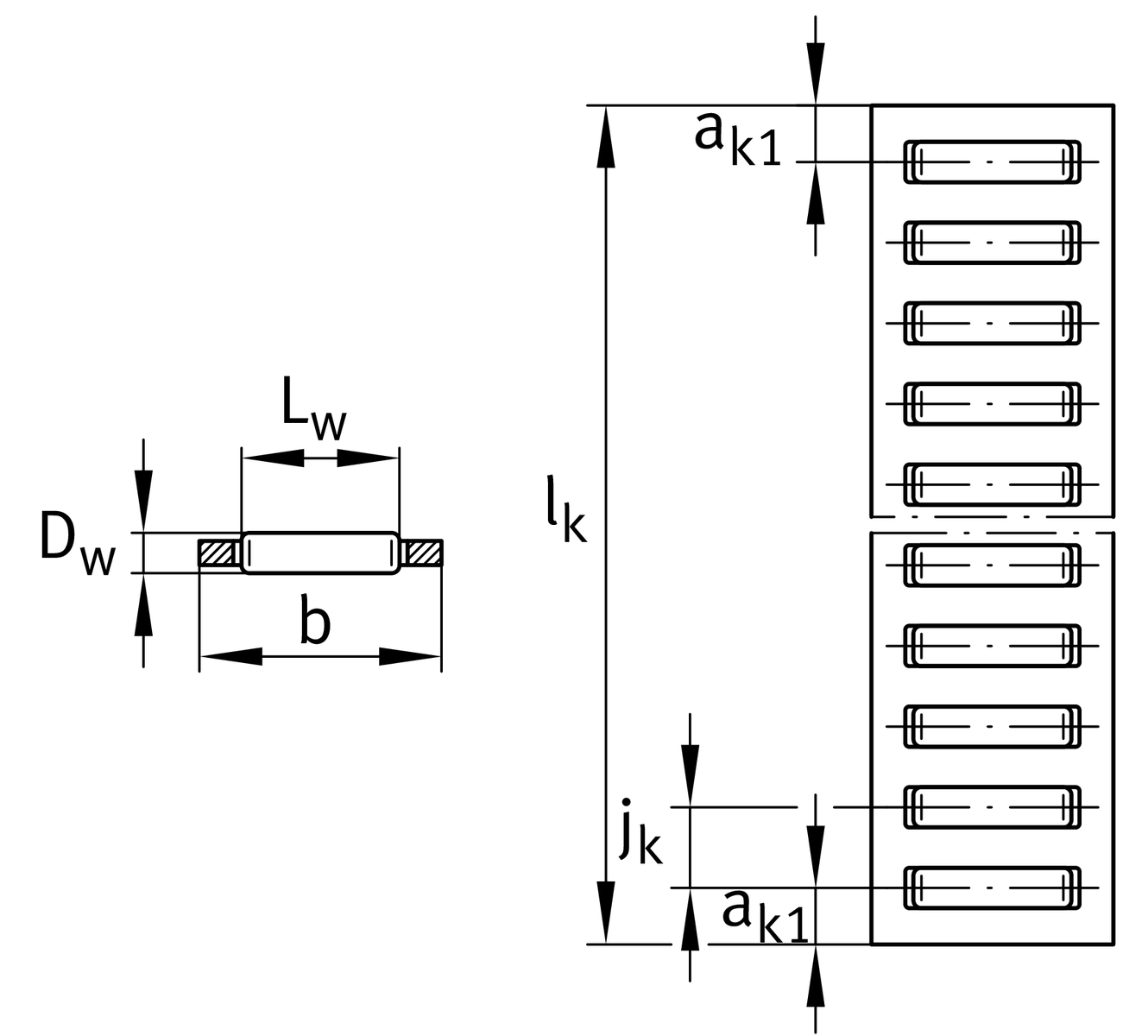

Main Dimensions & Performance Data
lk max
4,000 mm
Max. length 1
DW
3 mm
Rolling element diameter
b
20 mm
C
51,900 N

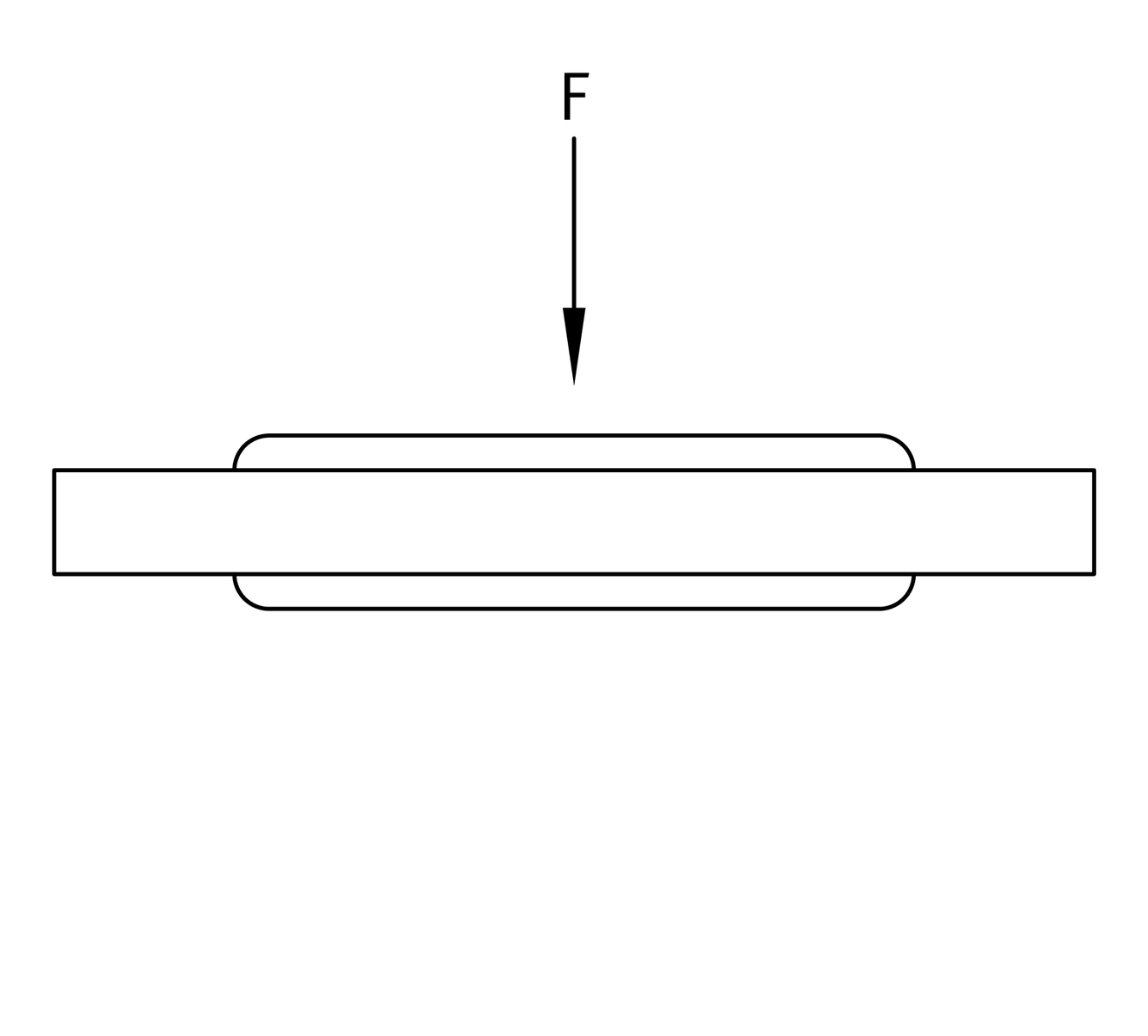

Load capacity dyn. 2
C0
148,000 N
Load capacity stat. 2
≈m
202 g/m
Weight

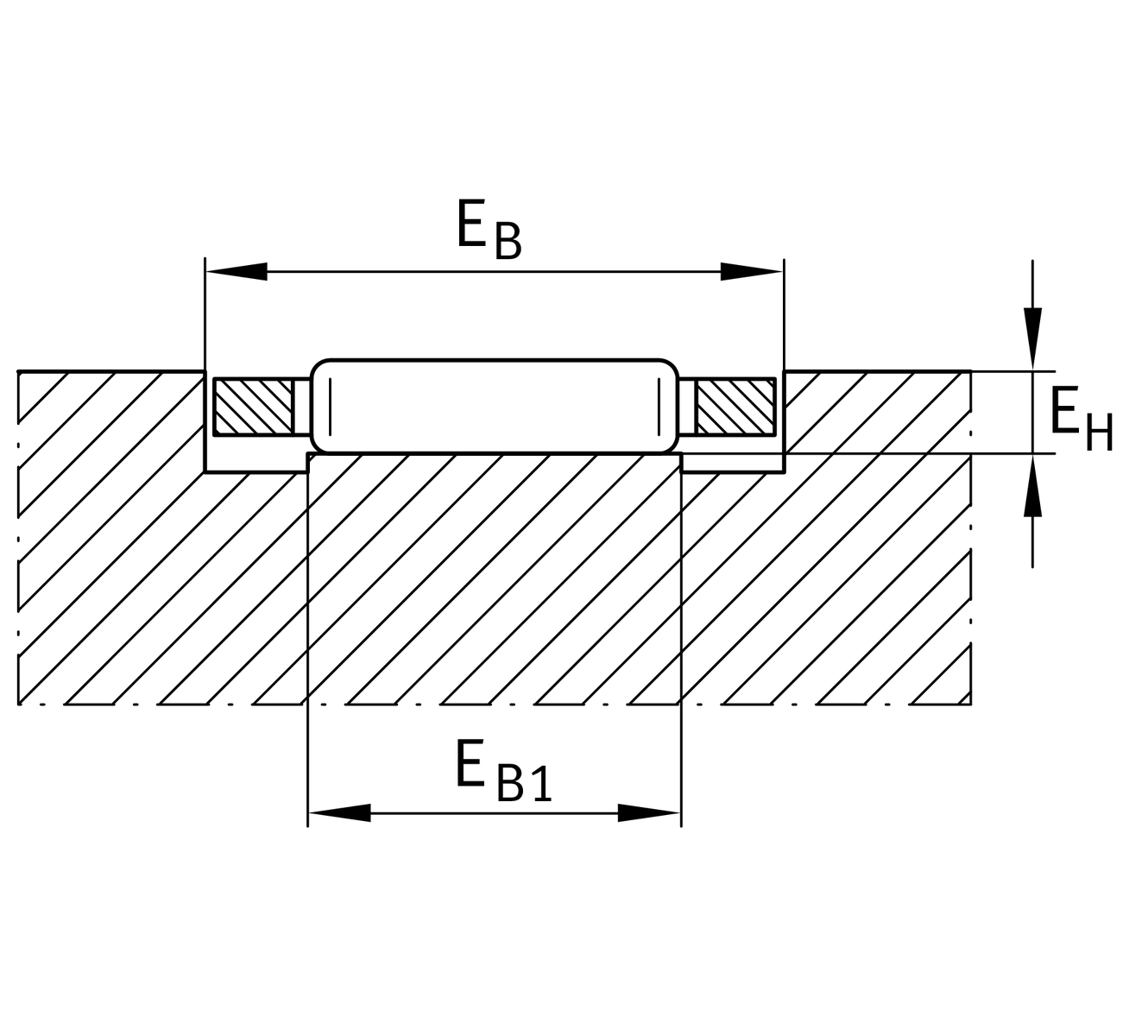

Mounting dimensions
EB
20.4 mm
Tol EB
+0,2
tolerance
EB1
14 mm
min.
EH
2.7 mm

Dimensions
LW
13.8 mm
Length rolling element
jk
6 mm
ak1
4.5 mm

Related products
J5030, S5030
Associated rail

Your current product variant
Size code20
