G1104-XL-KRR-B-AS2/V
Radial insert ball bearing G1104-XL-KRR-B-AS2/V
Thêm vào yêu cầu báo giá

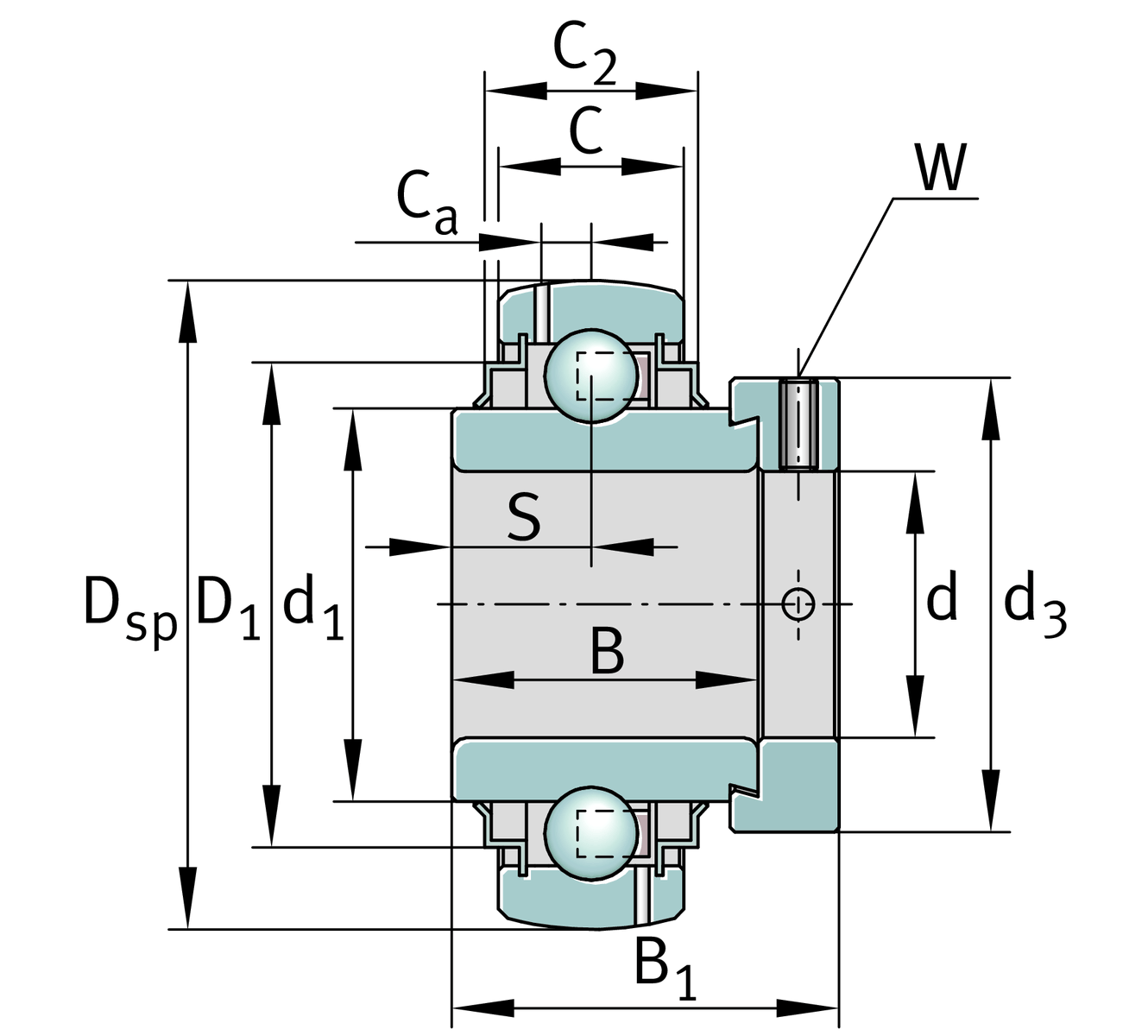

Main Dimensions & Performance Data
d
31.75 mm
Bore diameter
d
31.75 mm
Bore diameter, inch
DSP
72 mm
Outside diameter
B
37.7 mm
Width
Cur
700 N
Fatigue load limit, radial
B1
51.3 mm
Locking collar total width
Cr
27,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
≈m
0.613 kg
Weight

Dimensions
C
19 mm
Width, outer ring
C2
22.5 mm
Sealing total width
S
18.8 mm
Distance raceway
d1
46.8 mm
Rib diameter inner ring
D1
60.3 mm
Outside diameter seal
Ca
5.7 mm
Distance to lubrication hole
d3
51 mm
Outside diameter locking collar/locknut

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
