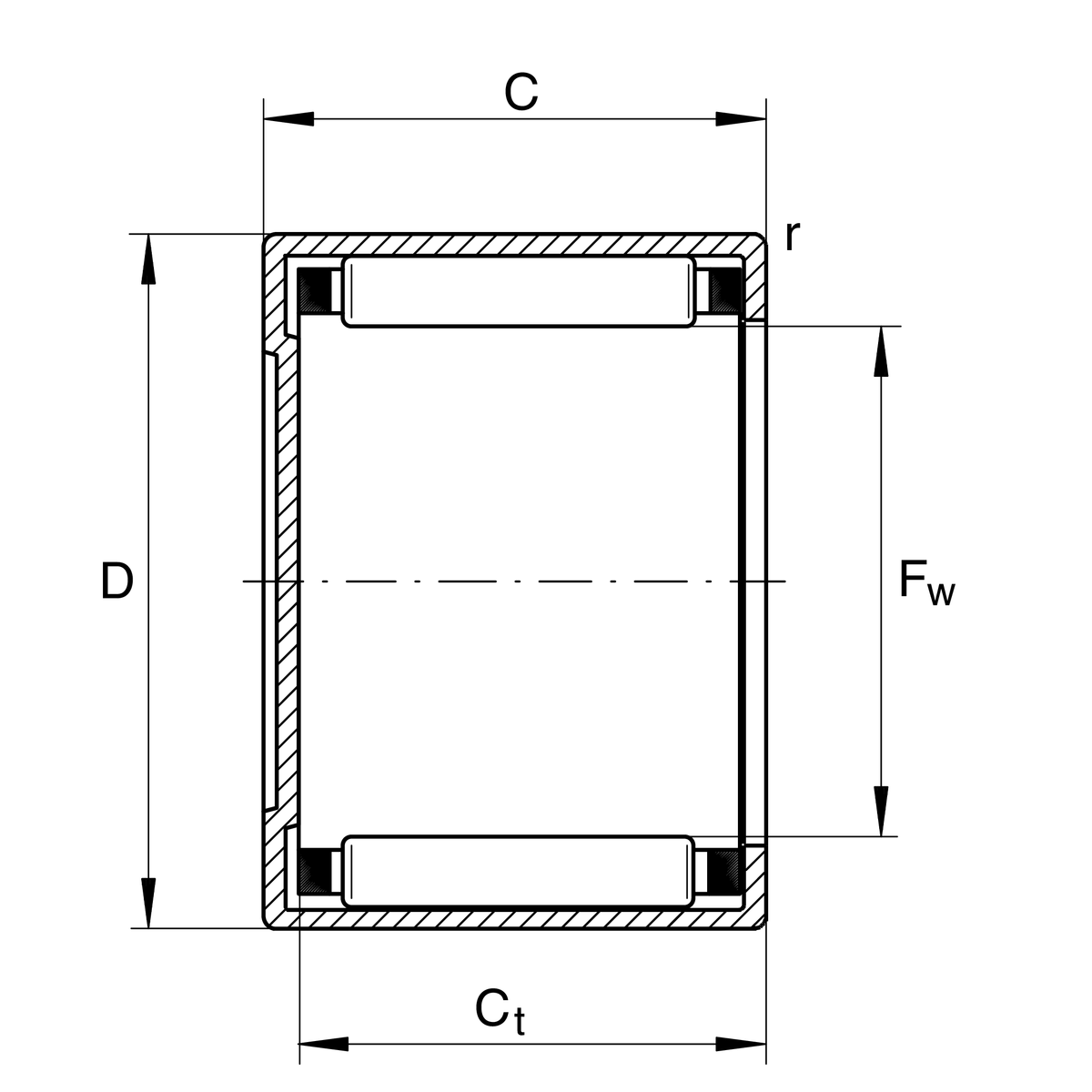

Main Dimensions & Performance Data
| Fw | 30 mm | Under roller diameter |
| D | 37 mm | Outside diameter |
| C | 12 mm | Width, outer ring |
| Cr | 12,100 N | Basic dynamic load rating, radial |
| C0r | 18,200 N | Basic static load rating, radial |
| Cur | 2,440 N | Fatigue load limit, radial |
| nG Grease | 5,200 1/min | Limiting speed for grease lubrication |
| nG | 8,600 1/min | Limiting speed |
| nϑr | 6,600 1/min | Reference speed |
| ≈m | 28 g | Weight |
Dimensions
| rmin | 0.8 mm | Minimum chamfer dimension |
| Ct min | 9.3 mm | Minimum width to base of drawn cup with closed end |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 140 °C | Operating temperature max. |
Additional information
SD30X37X4 | Sealing ring | |
G30X37X4 | Sealing ring 2 | |
LR25X30X12,5 | Suitable inner rings LR |
Your current product variant
| Lubricant | Without | |
| Lubrication hole | Without | |
| Coating | Without | |
| Sealing | Without |
