Main Dimensions & Performance Data

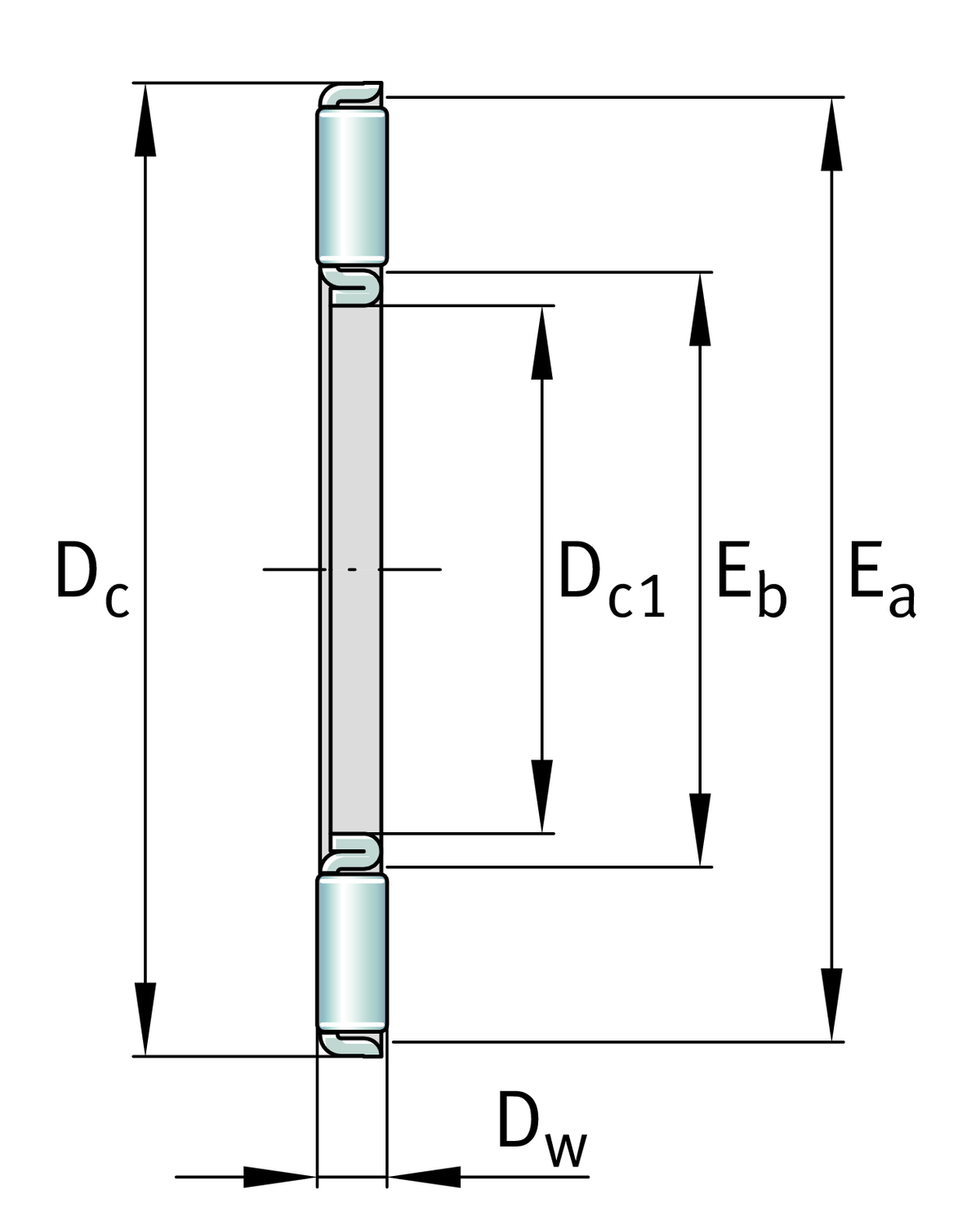

| Dc1 | 120 mm | Bore diameter cage |
| Dc | 155 mm | Outside diameter |
| Dw | 4 mm | Rolling element diameter |

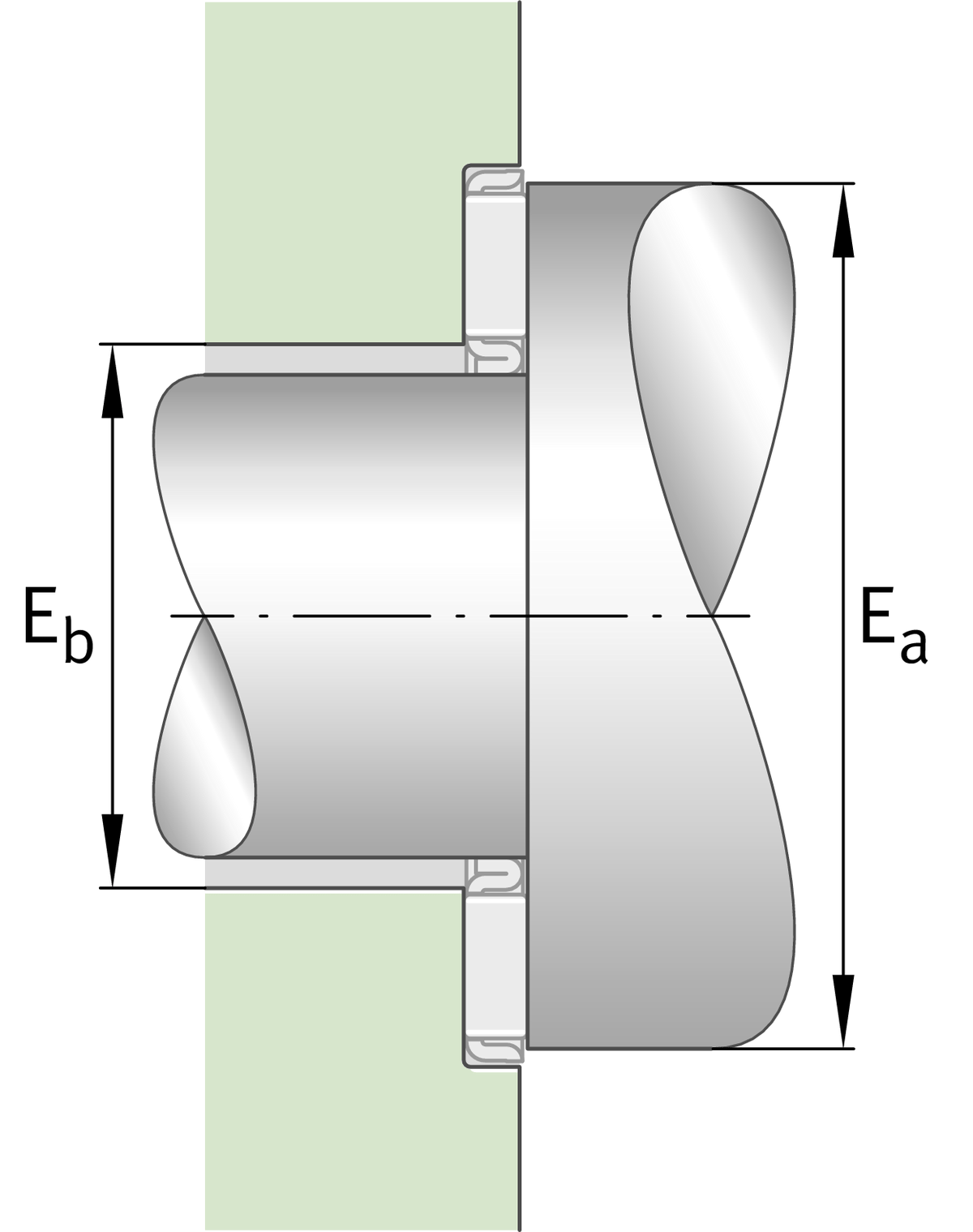

| Ea | 153 mm | Raceway dimension |
| Eb | 125 mm | Raceway dimension |
| ca | 102,000 N | Basic dynamic load rating, axial |
| c0a | 680,000 N | Basic static load rating, axial |
| cua | 69,000 N | Fatigue load limit, axial |
| nG | 2,090 1/min | Limiting speed |
| nϑr | 810 1/min | Reference speed |
| ≈m | 119 g | Weight |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
AS120155 | Axial bearing washer |
