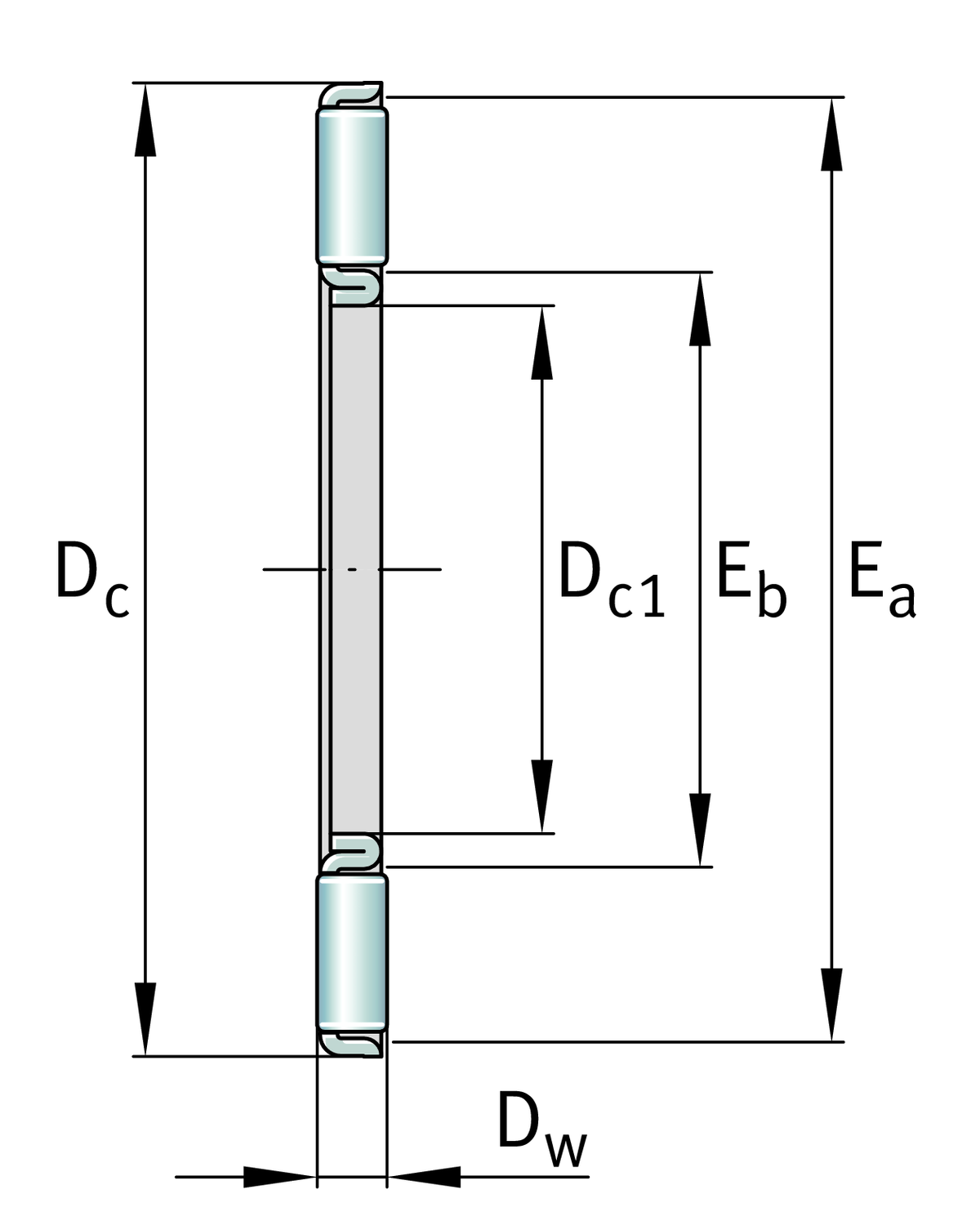

Main Dimensions & Performance Data
| Dc1 | 110 mm | Bore diameter cage |
| Dc | 145 mm | Outside diameter |
| Dw | 4 mm | Rolling element diameter |

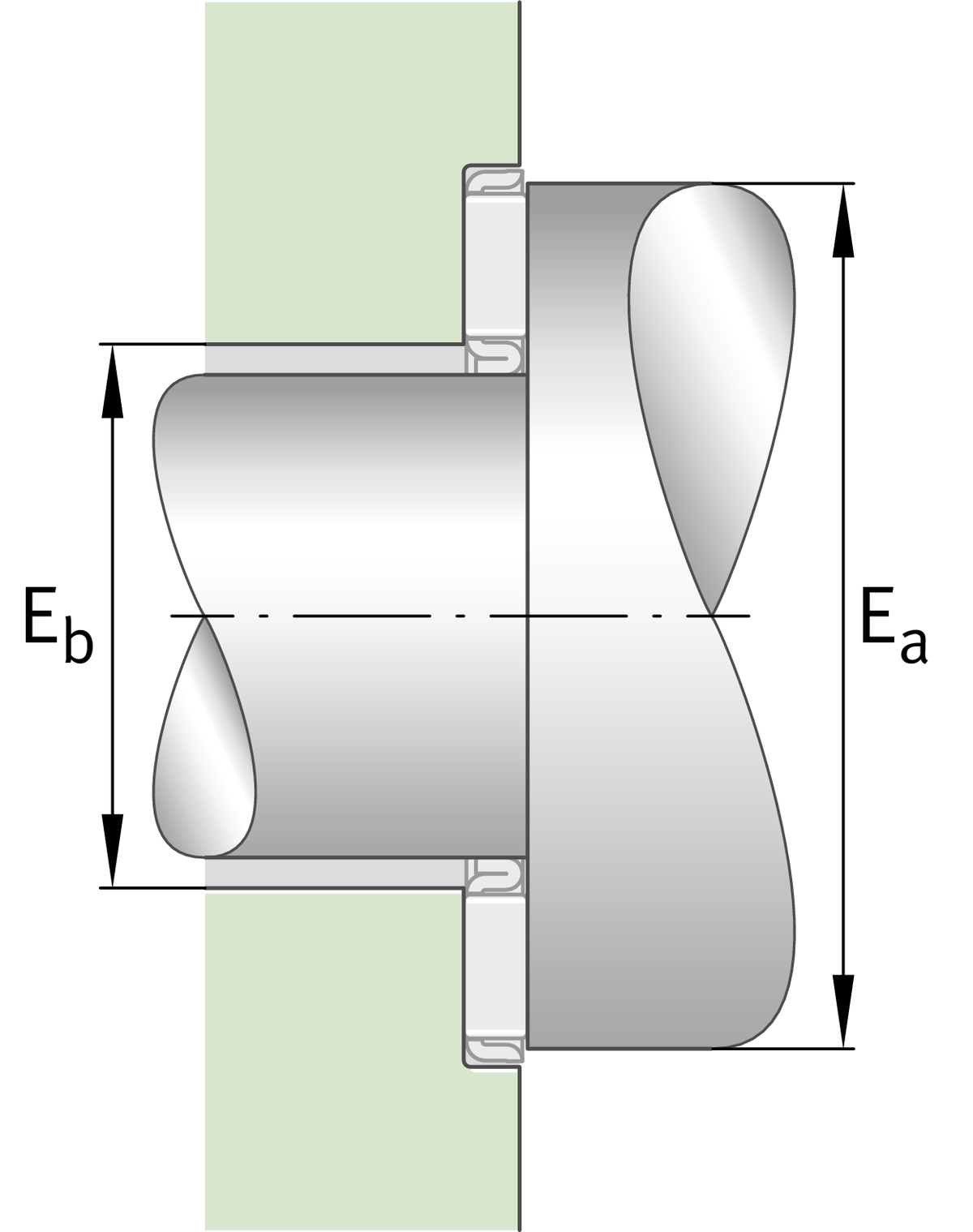

| Ea | 143 mm | Raceway dimension |
| Eb | 115 mm | Raceway dimension |
| ca | 97,000 N | Basic dynamic load rating, axial |
| c0a | 620,000 N | Basic static load rating, axial |
| cua | 64,000 N | Fatigue load limit, axial |
| nG | 2,260 1/min | Limiting speed |
| nϑr | 890 1/min | Reference speed |
| ≈m | 113 g | Weight |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
AS110145 | Axial bearing washer |
