BLCTE30-XL
Flanged housing unit BLCTE30-XL
Thêm vào yêu cầu báo giá

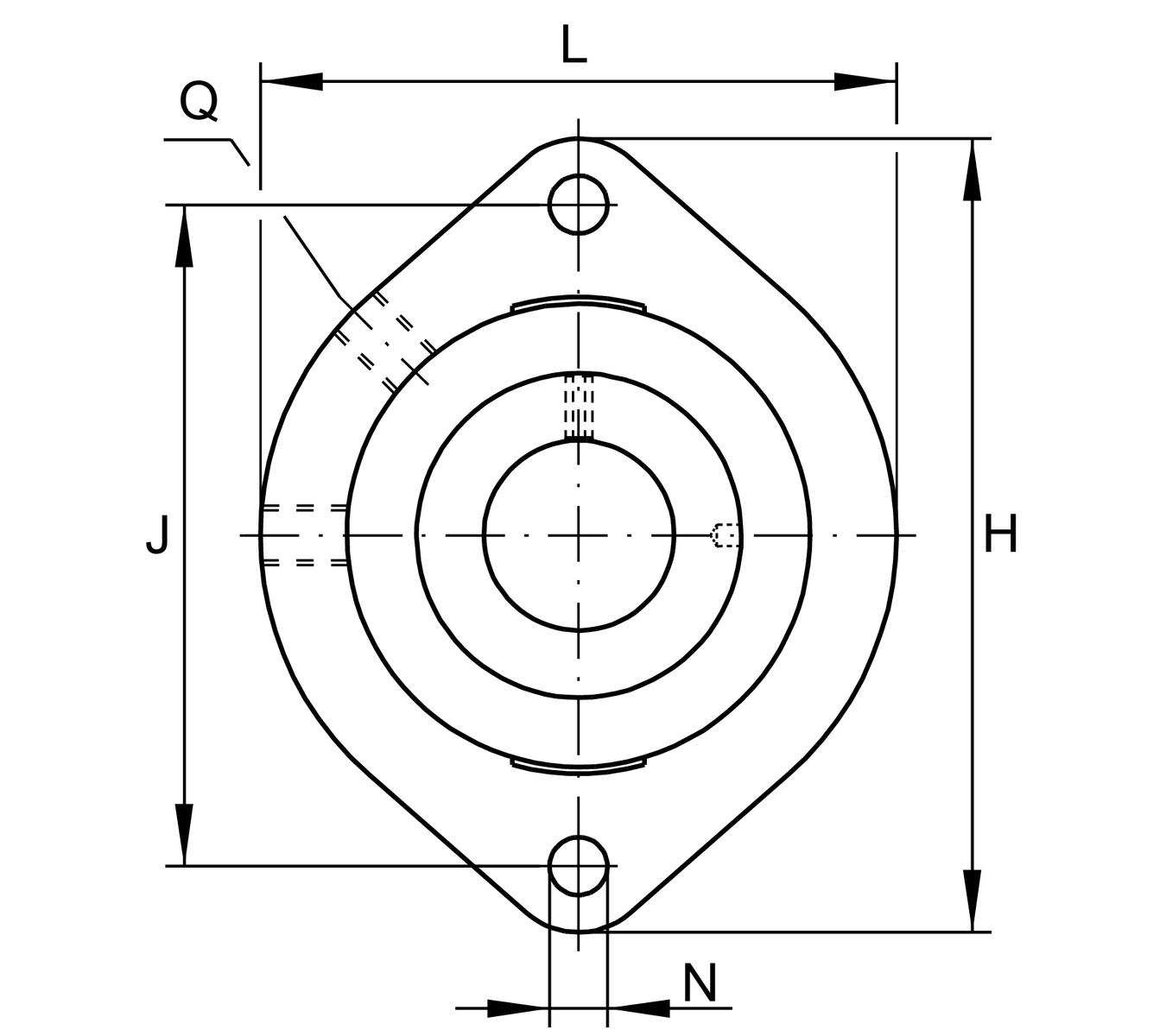

Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
84 mm
Flange width
H
112.5 mm
Height flange
Cr
19,500 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
≈m
0.65 kg
Weight

Mounting dimensions
J
90.5 mm
Pitch circle diameter (holes)
N
11.5 mm
Fixing bore

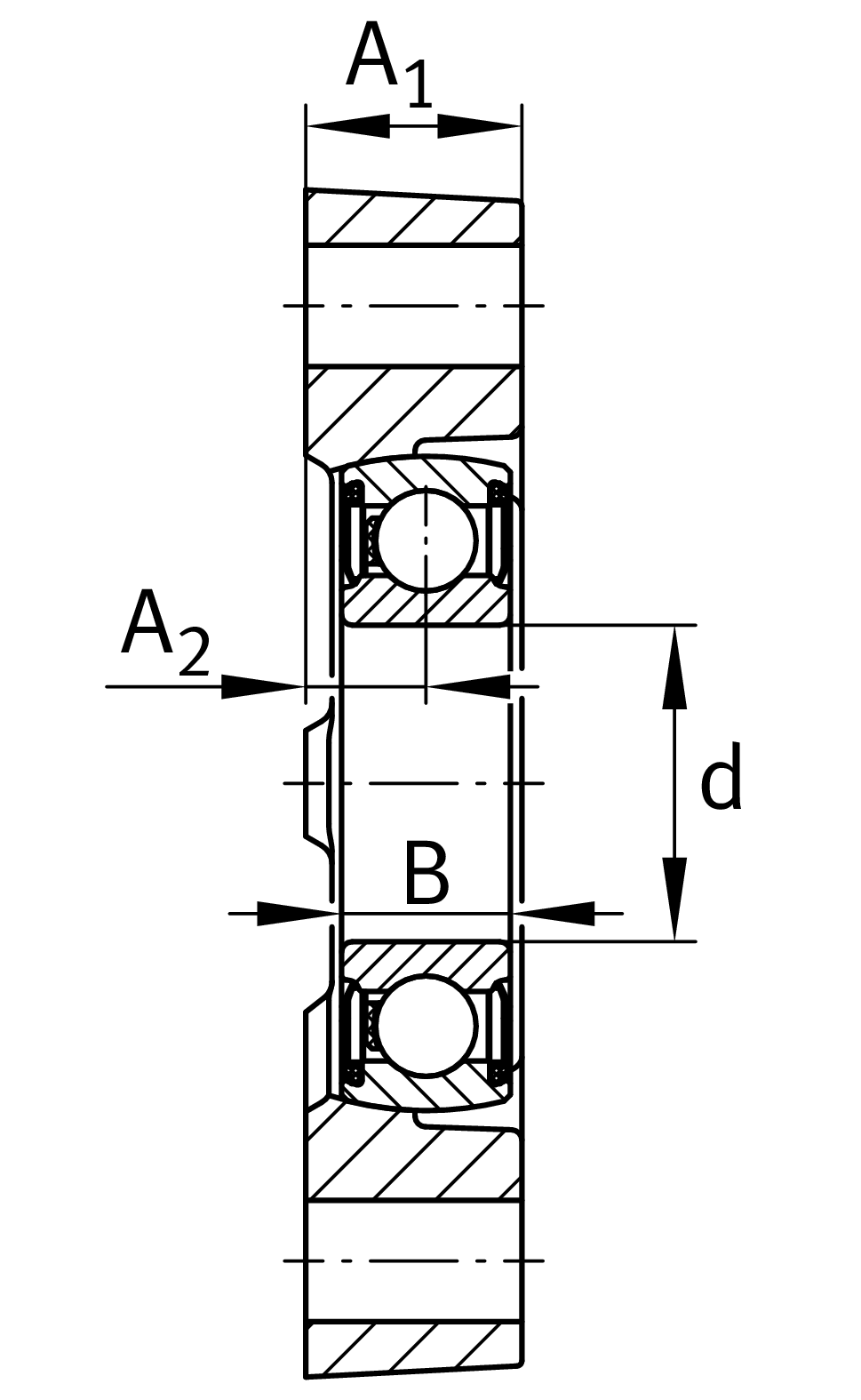

Dimensions
A1
22.5 mm
Thickness of flange
A2
11.4 mm
Distance raceway
B
16 mm
Width

Additional information
GEHLCTE06-GG
Housing
206-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
