BND3168-H-W-T-BF-D
Housing body BND3168-H-W-T-BF-D
Thêm vào yêu cầu báo giá

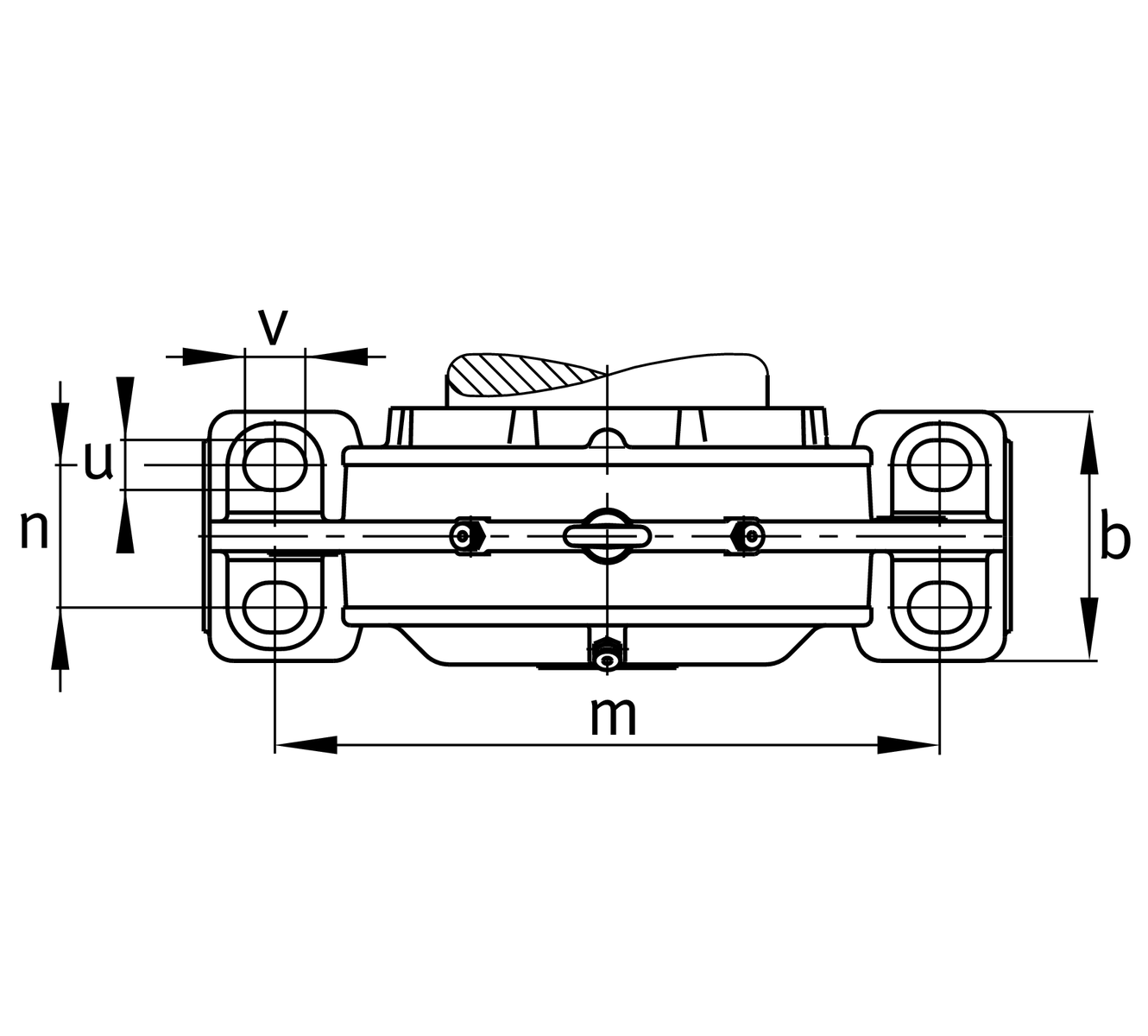

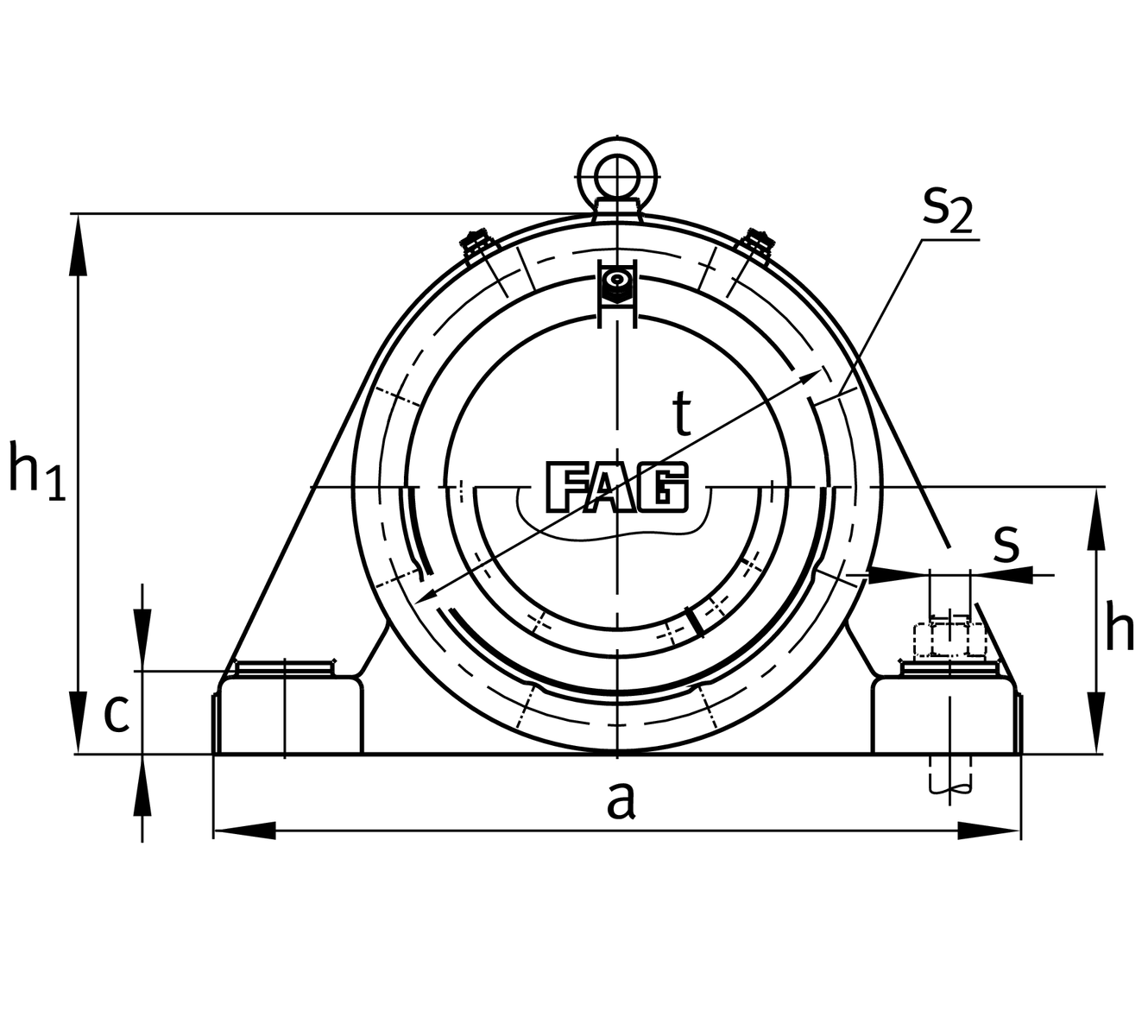

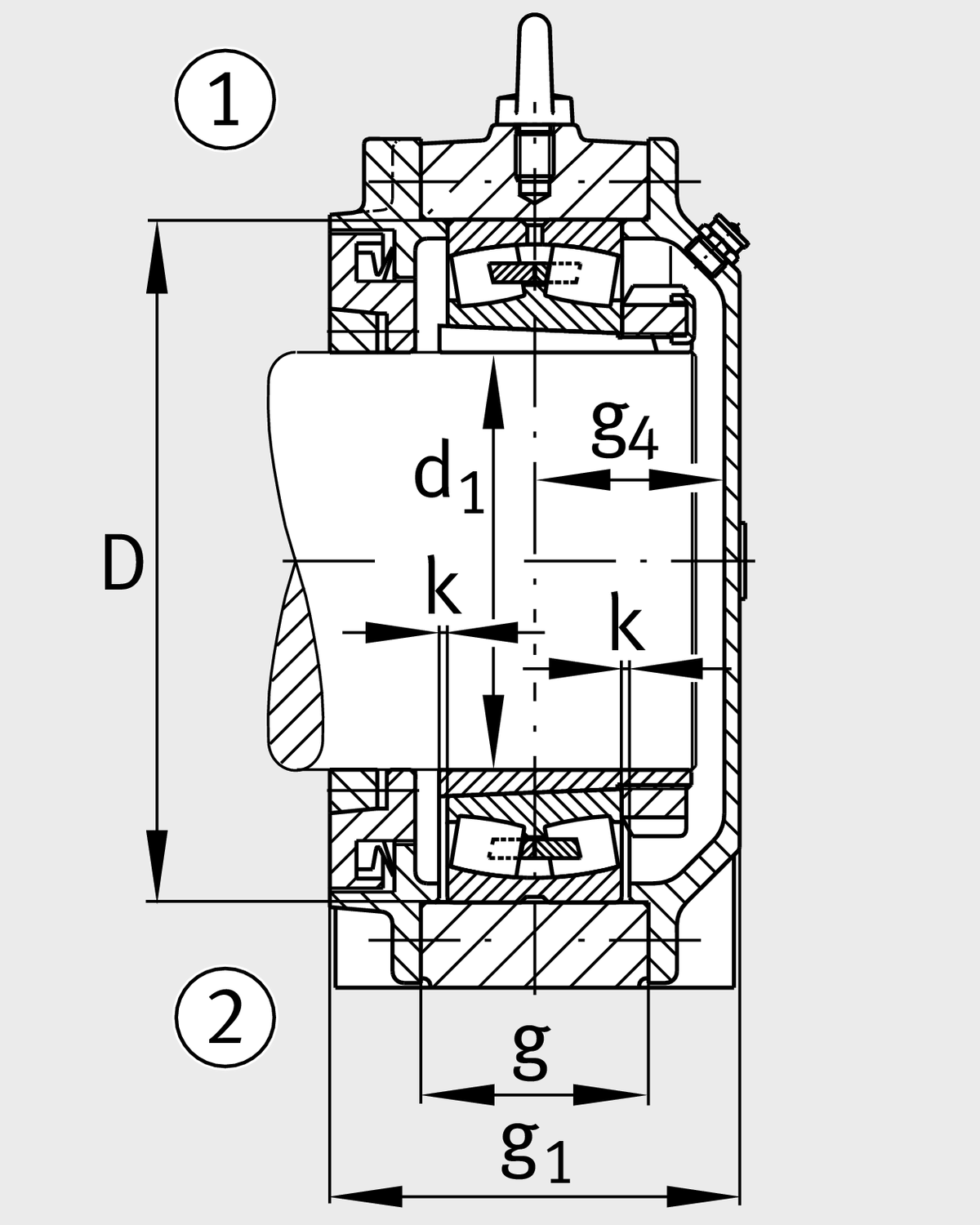

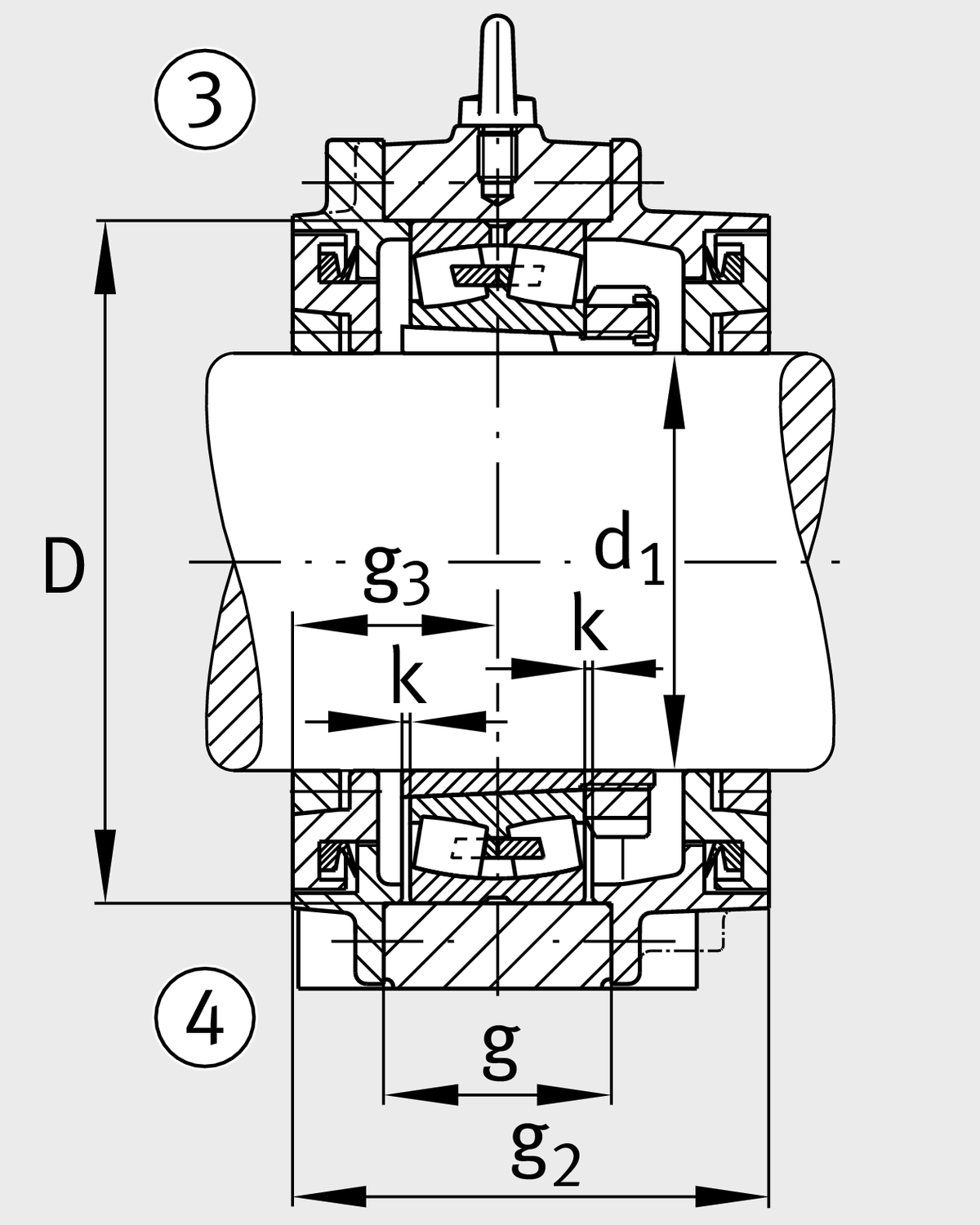

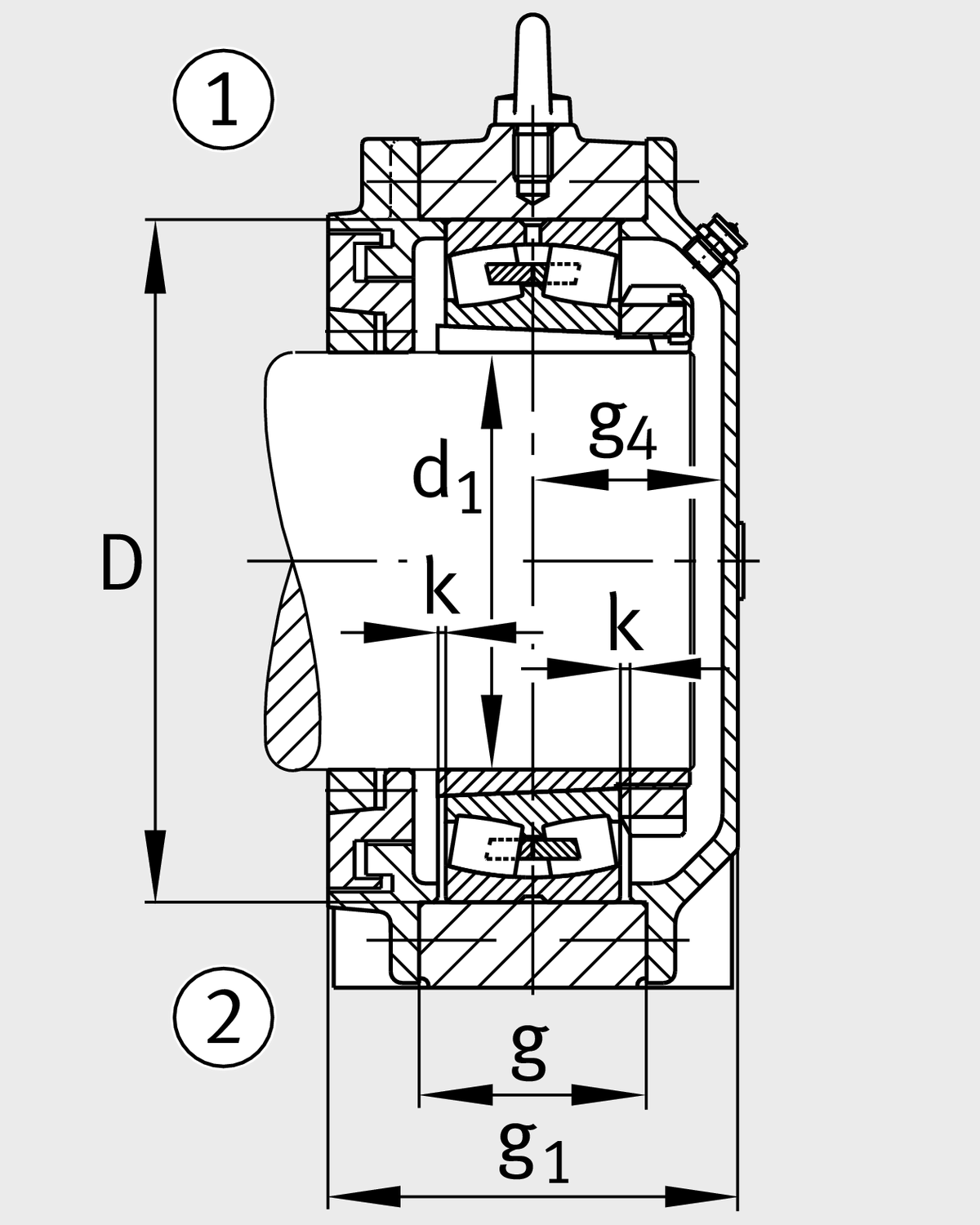

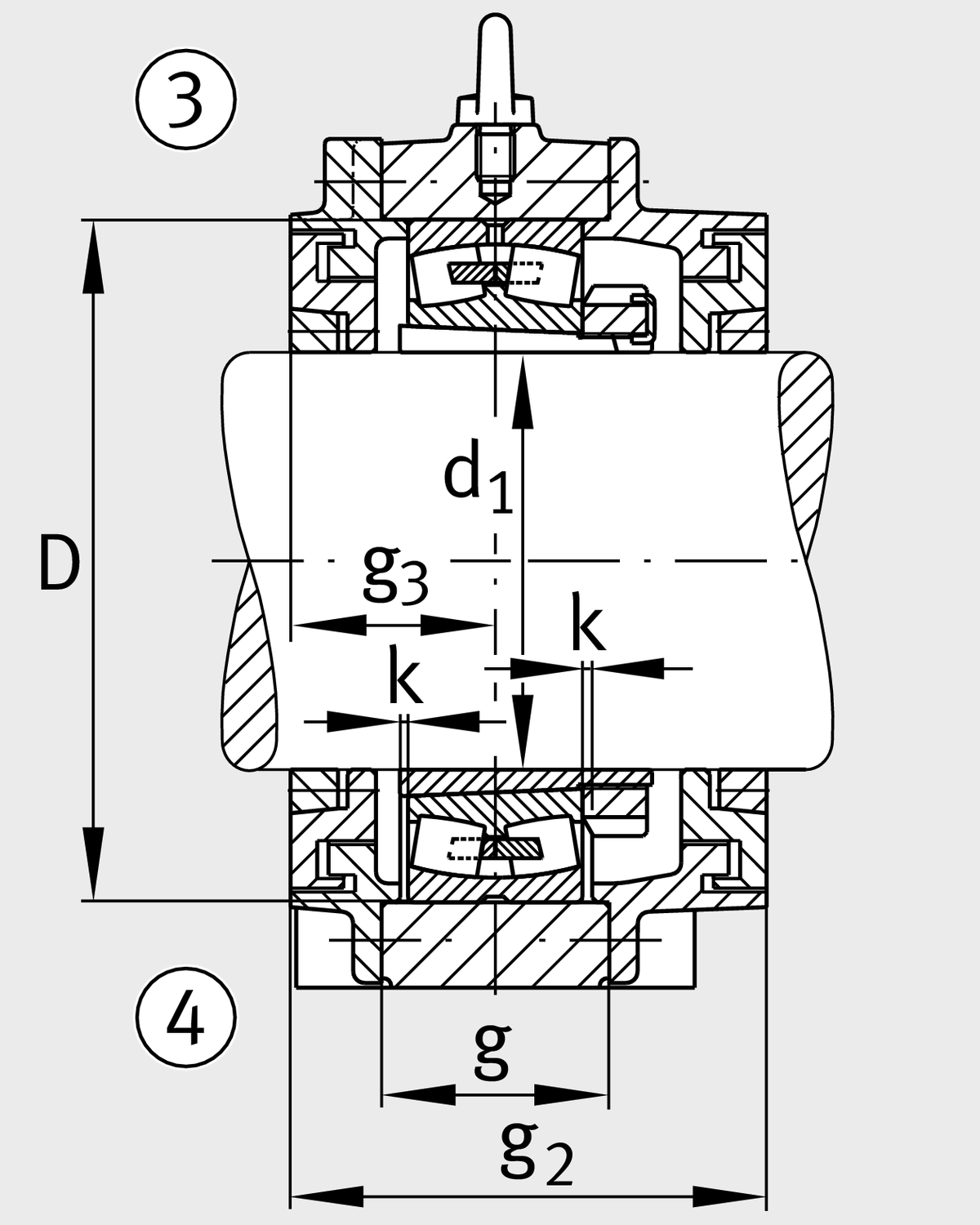

Main Dimensions & Performance Data
d1
320 mm
Shaft diameter
a
1,150 mm
Length base
h1
745 mm
Total height
g1
373 mm
Total width with lid g1
g2
421 mm
Total width with lid g2
≈m
520 kg
Weight

Dimensions
b
360 mm
Width base
c
115 mm
Height base foot
D
580 mm
Outside Diameter
g
220 mm
Width housing body
g3
183 mm
Locking collar width g3
g4
178 mm
Locking collar width g4
h
370 mm
Distance shaft axis
k
5 mm
Axial displacement
m
960 mm
Distance fixing bore
n
200 mm
Bore distance width
s
M48
Size of fixing screws
s2
M24
Thread fixing bore
s2
8
Number of screwing holes
t
640 mm
Pitch circle dia fixing holes
u
56 mm
Width oblong holes
v
75 mm
Lenght oblong hole

Additional information
H3168-HG
Adaptive Sleeve
23168..-K
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.
